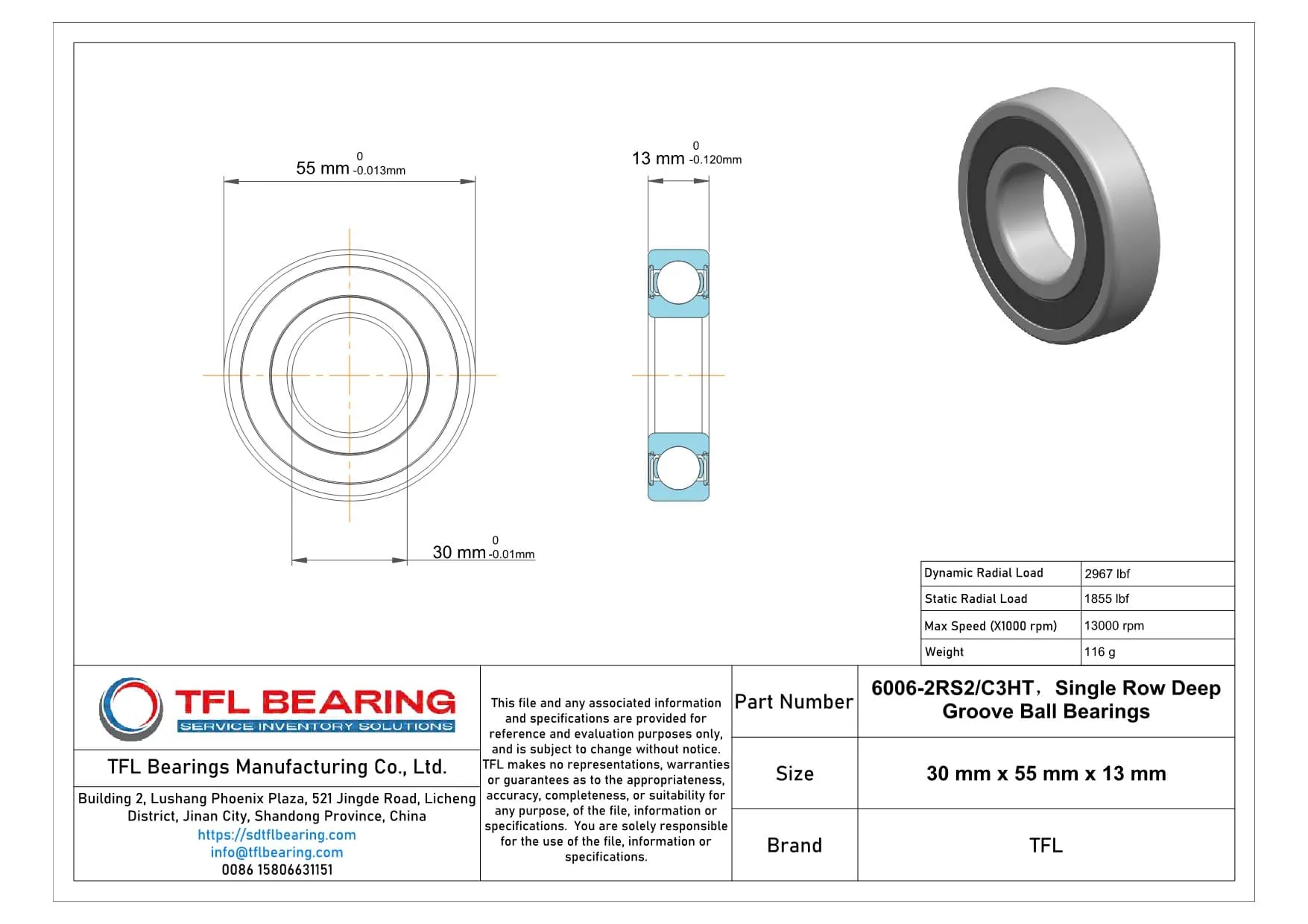

The 6006-2RS2/C3HT is a single-row deep groove ball bearing with a 30mm bore and 55mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 2967 lbf and spins smoothly at speeds up to 13000 RPM.
Its sealed design keeps dirt out and lubrication in, making it low-maintenance. The C3 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.
This model is interchangeable with SKF bearings, offering a cost-effective alternative. Ideal for electric motors or pumps where consistent radial load support is needed.
Weighing just 116g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use in various industries.
"*" indicates required fields
Performance Features of 6006-2RS2/C3HT Bearing
6006-2RS2/C3HT Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 2967 lbf.
Its sealed design protects against contaminants, making it suitable for various environments.
The C3 radial clearance ensures smooth operation even under thermal expansion or high-speed conditions.
With a maximum speed of 13,000 rpm, it balances performance and durability.
6006-2RS2/C3HT Bearing operates in temperatures from -30°C to 120°C, adapting to diverse working conditions.
The chrome steel cage enhances stability, reducing wear and extending service life.
Common Applications of 6006-2RS2/C3HT Bearing
6006-2RS2/C3HT Bearing is widely used in industrial equipment like conveyor systems and electric motors, where its sealed design protects against dust and debris. The C3 clearance ensures reliable performance under varying thermal conditions.
In automotive applications, 6006-2RS2/C3HT Bearing fits well in components such as alternators and water pumps, offering smooth radial load handling. Its chrome steel construction provides durability for long-term use.
For home appliances, 6006-2RS2/C3HT Bearing is a solid choice in items like washing machines and fans, where low maintenance is key. The sealed feature keeps lubrication intact, reducing wear over time.
Automation systems benefit from 6006-2RS2/C3HT Bearing in robotic arms and CNC machinery, thanks to its consistent performance. The metric sizing makes it easy to integrate into various designs.
