Single Row Deep Groove Ball Bearings 6005-2RSH/W64F
Single Row Deep Groove Ball Bearings 6005-2RSH/W64F

Single Row Deep Groove Ball Bearings 6005-2RSH/W64F

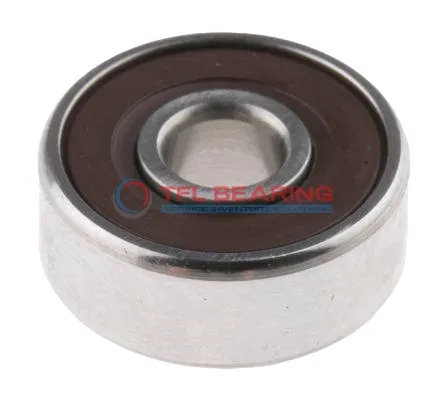

The 6005-2RSH/W64F is a compact single-row deep groove ball bearing, measuring 25mm by 47mm by 12mm. Made from chrome steel, it handles radial loads up to 2271 lbf and spins smoothly at speeds up to 15000 RPM.

Its sealed design keeps lubrication in and contaminants out, making it low-maintenance. The solid oil lubrication ensures long-lasting performance, even in temperatures from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Ideal for electric motors, pumps, or small machinery where space is limited.

Weighing just 80g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6005-2RSH/W64F
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2271 lbf
  • Static Radial Load 1315 lbf
  • Max Speed 15000 rpm
  • Weight 80 g
  • price($) 9.963

Features

Why Choose 6005-2RSH/W64F Bearing for Precision Tasks?

6005-2RSH/W64F Bearing features a sealed design with solid oil lubrication, ensuring smooth operation in radial load applications.
Its chrome steel construction provides durability and resistance to wear, making it suitable for various industrial uses.

The bearing can handle dynamic radial loads up to 2271 lbf, offering reliable performance under stress.
With a maximum speed of 15,000 rpm, it balances efficiency and longevity.

6005-2RSH/W64F Bearing operates in temperatures from -30°C to 120°C, adapting to diverse working conditions.
Its ABEC 1 tolerance class ensures consistent precision for demanding tasks.

The compact size of 25 mm×47 mm×12 mm makes it ideal for space-constrained applications.
Easy to install and maintain, it reduces downtime and operational costs.

Application

Common Applications of 6005-2RSH/W64F Bearing
6005-2RSH/W64F Bearing is widely used in industrial machinery, such as electric motors and pumps, where its sealed design helps keep contaminants out. The solid oil lubrication ensures smooth operation even in dusty environments.

In automotive applications, 6005-2RSH/W64F Bearing can be found in components like alternators and water pumps, providing reliable radial load support. Its chrome steel construction offers durability under constant use.

For household appliances, 6005-2RSH/W64F Bearing is a great fit for washing machines and fans, thanks to its low maintenance requirements. The ABEC 1 tolerance ensures consistent performance in everyday use.

Where Is 6005-2RSH/W64F Bearing Used?
6005-2RSH/W64F Bearing works well in automation equipment, such as conveyor belts, where its sealed design reduces wear. The solid oil lubrication also extends service life in high-speed operations.

In medical devices like centrifuges, 6005-2RSH/W64F Bearing provides quiet and reliable rotation. Its temperature range makes it suitable for various lab conditions.

Built for Heavy-Duty Use: 6005-2RSH/W64F Bearing
6005-2RSH/W64F Bearing handles radial loads effectively in agricultural machinery, such as tractors and harvesters. The sealed construction protects against dirt and moisture.

For power tools like drills, 6005-2RSH/W64F Bearing ensures smooth operation under frequent use. Its chrome steel cage enhances durability in demanding conditions.

Light-Duty vs Heavy-Duty: Best Uses for 6005-2RSH/W64F Bearing
In light-duty applications like office printers, 6005-2RSH/W64F Bearing offers quiet and efficient performance. The sealed design prevents dust buildup in sensitive mechanisms.

For heavy-duty industrial gearboxes, 6005-2RSH/W64F Bearing provides reliable radial load support. Its solid oil lubrication ensures consistent performance under high stress.
