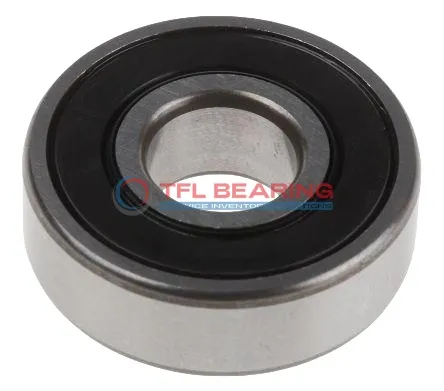

Single Row Deep Groove Ball Bearings 6005-2RS2/W64
Single Row Deep Groove Ball Bearings 6005-2RS2/W64

Single Row Deep Groove Ball Bearings 6005-2RS2/W64

The 6005-2RS2/W64 is a single-row deep groove ball bearing with a 25mm bore and 47mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 2271 lbf and spins smoothly at speeds up to 15,000 RPM.

Its sealed design keeps dirt out and solid oil lubrication ensures long-lasting performance without frequent maintenance. The bearing operates reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or small machinery where radial loads are common.

Weighing just 80g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6005-2RS2/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2271 lbf
  • Static Radial Load 1315 lbf
  • Max Speed 15000 rpm
  • Weight 80 g

Features

Why Choose 6005-2RS2/W64 Bearing for Precision Tasks?

6005-2RS2/W64 Bearing features a sealed design with solid oil lubrication, ensuring smooth operation and minimal maintenance.
Its chrome steel construction provides excellent durability and resistance to wear in radial load applications.
The bearing can handle dynamic radial loads up to 2271 lbf, making it suitable for high-performance machinery.
With a maximum speed of 15,000 rpm, it delivers reliable performance in demanding conditions.

How Is 6005-2RS2/W64 Bearing Engineered for Reliability?

6005-2RS2/W64 Bearing is built with precision ABEC 1 tolerances, ensuring consistent performance in radial applications.
The sealed design protects against contaminants, extending its service life in harsh environments.
Its solid oil lubrication reduces friction, enhancing efficiency and reducing wear.
The bearing operates smoothly within a temperature range of -30°C to 120°C, adapting to various conditions.

Designed for Durability: 6005-2RS2/W64 Bearing

6005-2RS2/W64 Bearing’s chrome steel rings and balls offer high resistance to wear and corrosion.
The sealed construction keeps out dust and moisture, ensuring long-term reliability.
With a static radial load capacity of 1315 lbf, it handles heavy-duty applications with ease.
Its compact size (25 mm×47 mm×12 mm) makes it ideal for space-constrained installations.

Open vs Sealed Bearings: Benefits of 6005-2RS2/W64 Bearing

6005-2RS2/W64 Bearing’s sealed design provides superior protection against dirt and moisture compared to open bearings.
The solid oil lubrication ensures consistent performance without frequent re-greasing.
Its chrome steel construction enhances durability, even in high-speed applications up to 15,000 rpm.
The bearing’s ABEC 1 tolerance guarantees precision and reliability in radial load scenarios.

Application

Industrial Uses of 6005-2RS2/W64 Bearing
6005-2RS2/W64 Bearing is commonly used in conveyor systems and electric motors, where its sealed design keeps contaminants out and maintains smooth operation. The solid oil lubrication ensures long service life even in dusty environments.

Where Is 6005-2RS2/W64 Bearing Used?
You’ll find 6005-2RS2/W64 Bearing in automotive applications like alternators and water pumps, thanks to its reliable radial load handling. Its metric sizing makes it a versatile fit for various vehicle models.

Perfect Fit for Automation: 6005-2RS2/W64 Bearing
In robotic arms and automated assembly lines, 6005-2RS2/W64 Bearing offers consistent performance with minimal maintenance. The chrome steel construction provides durability under continuous use.

Light-Duty vs Heavy-Duty: Best Uses for 6005-2RS2/W64 Bearing
For light-duty tasks like household fans, 6005-2RS2/W64 Bearing ensures quiet and efficient operation. In heavier industrial settings, it handles moderate radial loads with ease.

Medical vs Industrial: Where 6005-2RS2/W64 Bearing Excels
In medical devices like lab equipment, 6005-2RS2/W64 Bearing’s sealed design prevents contamination. Industrial applications benefit from its robust construction and temperature resistance.
