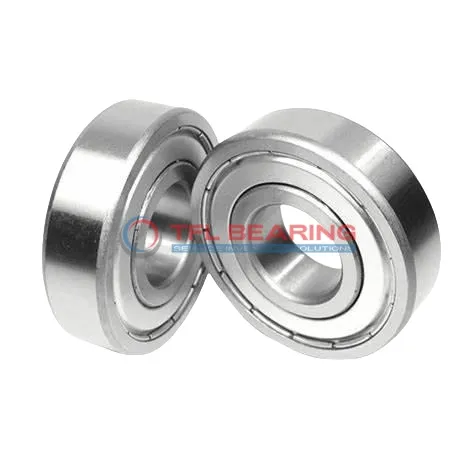

Single Row Deep Groove Ball Bearings 6003-2Z/C3LHT23
Single Row Deep Groove Ball Bearings 6003-2Z/C3LHT23

Single Row Deep Groove Ball Bearings 6003-2Z/C3LHT23

The 6003-2Z/C3LHT23 is a single-row deep groove ball bearing with a 17mm bore and 35mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 1349 lbf and spins smoothly at speeds up to 21,000 RPM.

Its shielded design keeps dirt out while the C3 radial clearance allows for slight misalignment. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for electric motors or small machinery where reliable radial load support is needed.

Weighing just 39g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6003-2Z/C3LHT23
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1349 lbf
  • Static Radial Load 731 lbf
  • Max Speed 21000 rpm
  • Weight 39 g

Features

How Does 6003-2Z/C3LHT23 Bearing Reduce Friction?

6003-2Z/C3LHT23 Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
Its chrome steel construction ensures durability while minimising friction during operation.

The shielded design protects against contaminants, maintaining performance in various environments.
With a maximum speed of 21,000 rpm, it delivers reliable efficiency for high-speed applications.

6003-2Z/C3LHT23 Bearing’s C3 radial clearance allows for thermal expansion, ensuring consistent operation.
Its static radial load capacity of 731 lbf makes it suitable for diverse industrial uses.

Application

Industrial Uses of 6003-2Z/C3LHT23 Bearing
6003-2Z/C3LHT23 Bearing is commonly used in industrial fans and pumps, where its shielded design helps keep contaminants out. The C3 radial clearance ensures smooth operation even under moderate loads.

In automotive applications, 6003-2Z/C3LHT23 Bearing fits well in alternators and small electric motors. Its chrome steel construction provides durability for long service life in these components.

For home appliances like washing machines, 6003-2Z/C3LHT23 Bearing offers reliable performance with minimal maintenance. The ABEC 1 tolerance makes it a cost-effective choice for these everyday devices.

How Does 6003-2Z/C3LHT23 Bearing Support High-Speed Operations?
6003-2Z/C3LHT23 Bearing handles speeds up to 21,000 rpm, making it suitable for small power tools. The shielded design helps maintain performance by reducing dust ingress.

In office equipment like printers, 6003-2Z/C3LHT23 Bearing ensures quiet operation. Its metric sizing allows easy replacement in various European and Asian machine models.

Built for Versatility: 6003-2Z/C3LHT23 Bearing
6003-2Z/C3LHT23 Bearing works well in both industrial and consumer applications due to its balanced design. The temperature range of -30° to 120°C adds to its adaptability.

For small conveyor systems, 6003-2Z/C3LHT23 Bearing provides reliable radial load support. Its lightweight design at just 39g helps reduce overall system weight.
