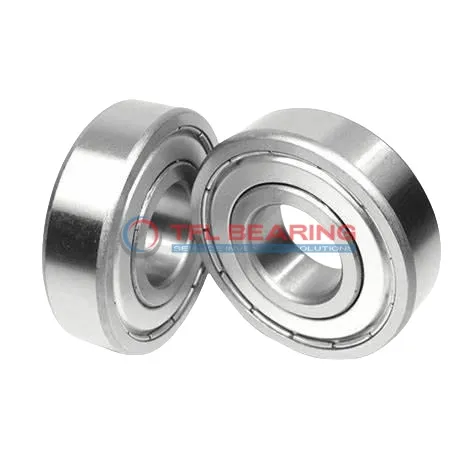

Single Row Deep Groove Ball Bearings 6003-2Z/C2ELHT23
Single Row Deep Groove Ball Bearings 6003-2Z/C2ELHT23

Single Row Deep Groove Ball Bearings 6003-2Z/C2ELHT23

The 6003-2Z/C2ELHT23 is a single-row deep groove ball bearing with a 17mm bore and 35mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 1349 lbf and spins smoothly at speeds up to 21000 RPM.

Its shielded design keeps dirt out while maintaining easy access for lubrication. The C2 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Ideal for electric motors, pumps, or small machinery where consistent radial load support is needed.

Weighing just 39g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6003-2Z/C2ELHT23
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C2
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1349 lbf
  • Static Radial Load 731 lbf
  • Max Speed 21000 rpm
  • Weight 39 g
  • price($) 30.816

Features

Why Choose 6003-2Z/C2ELHT23 Bearing for Precision Tasks?

6003-2Z/C2ELHT23 Bearing features a shielded design, protecting against contaminants while maintaining smooth operation.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.
The C2 radial clearance provides optimal performance, balancing precision and load capacity.
With a maximum speed of 21,000 rpm, it is suitable for high-speed machinery.

Application

Common Applications of 6003-2Z/C2ELHT23 Bearing
6003-2Z/C2ELHT23 Bearing is widely used in industrial equipment like conveyor systems and small electric motors, where its shielded design helps keep contaminants out. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 6003-2Z/C2ELHT23 Bearing fits well in components such as alternators and water pumps, providing reliable radial load support. Its metric sizing makes it a versatile choice for various vehicle models.

For household appliances like washing machines and fans, 6003-2Z/C2ELHT23 Bearing offers smooth and quiet operation. The C2 clearance allows for slight thermal expansion, making it suitable for fluctuating temperatures.

In automation systems, 6003-2Z/C2ELHT23 Bearing is often found in robotic arms and small machinery, where precision and low maintenance are key. Its lightweight design (39g) also helps reduce overall system weight.
