Single Row Deep Groove Ball Bearings 6003-2RSLTN9/C3VT162
Single Row Deep Groove Ball Bearings 6003-2RSLTN9/C3VT162

Single Row Deep Groove Ball Bearings 6003-2RSLTN9/C3VT162

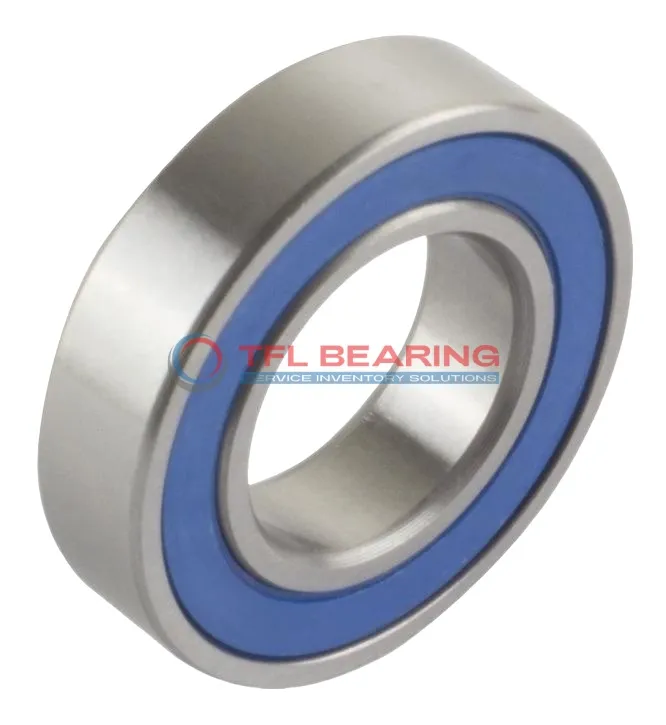

The 6003-2RSLTN9/C3VT162 is a compact single-row deep groove ball bearing, measuring 17mm by 35mm by 10mm. Made from chrome steel, it’s built to handle radial loads up to 1349 lbf and speeds of 21,000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance. The nylon cage reduces friction, ensuring smooth operation even at high speeds.

This bearing works in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF models, offering a reliable replacement option.

Ideal for electric motors, pumps, or small machinery where space is limited. Weighing just 39g, it’s lightweight yet durable for everyday industrial use. Compliant with RoHS and REACH standards.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6003-2RSLTN9/C3VT162
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1349 lbf
  • Static Radial Load 731 lbf
  • Max Speed 21000 rpm
  • Weight 39 g
  • price($) 4.896

Features

Performance Features of 6003-2RSLTN9/C3VT162 Bearing

6003-2RSLTN9/C3VT162 Bearing is designed for radial loads, with a dynamic radial load capacity of 1349 lbf.
Its chrome steel rings and balls ensure durability and smooth operation under various conditions.

The sealed design of 6003-2RSLTN9/C3VT162 Bearing protects against dust and moisture, extending its service life.
With a maximum speed of 21,000 rpm, it is suitable for high-speed applications.

6003-2RSLTN9/C3VT162 Bearing operates efficiently within a temperature range of -30°C to 120°C.
Its nylon cage reduces noise and vibration, making it ideal for precision machinery.

Application

Common Applications of 6003-2RSLTN9/C3VT162 Bearing
6003-2RSLTN9/C3VT162 Bearing is widely used in industrial equipment like conveyor systems and small electric motors, where its sealed design helps keep out dust and debris. The C3 clearance ensures smooth operation even under varying thermal conditions.

In automotive applications, 6003-2RSLTN9/C3VT162 Bearing fits well in components like alternators and water pumps, thanks to its radial load capacity and durability. The nylon cage reduces noise, making it ideal for quieter vehicle operation.

For home appliances, 6003-2RSLTN9/C3VT162 Bearing works efficiently in devices like washing machines and fans, where its sealed construction prevents grease leakage. The chrome steel rings provide long-lasting performance in everyday use.

Automation systems benefit from 6003-2RSLTN9/C3VT162 Bearing’s high-speed capability, making it suitable for robotic arms and small CNC machines. Its compact size and reliable design ensure precise movement in tight spaces.
