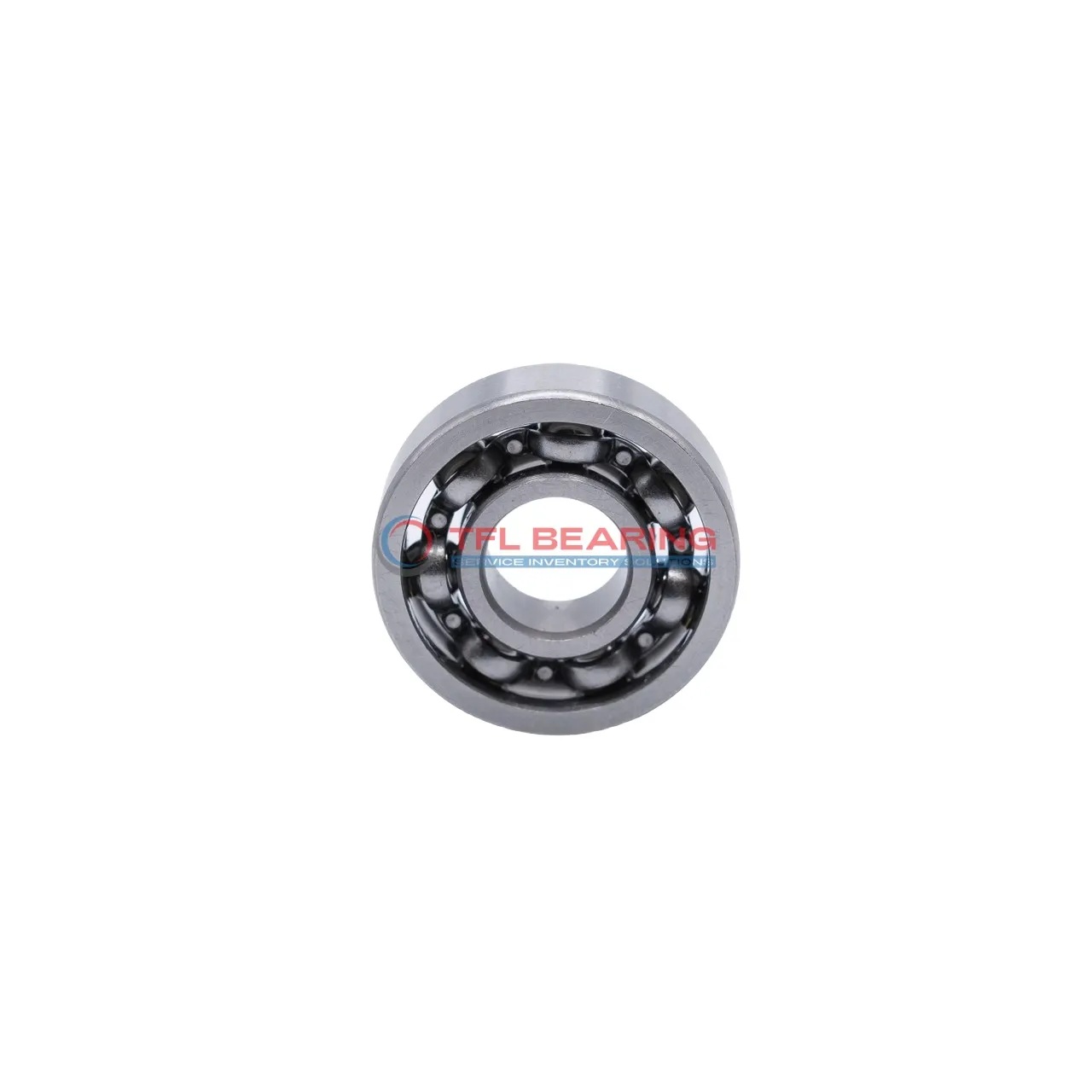

Single Row Deep Groove Ball Bearings 6001/W64
Single Row Deep Groove Ball Bearings 6001/W64

Single Row Deep Groove Ball Bearings 6001/W64

The 6001/W64 is a compact single-row deep groove ball bearing, measuring 12mm by 28mm by 8mm, crafted from durable chrome steel. It handles radial loads up to 1147 lbf and spins smoothly at speeds up to 27,000 RPM.

Its open design and solid oil lubrication make maintenance straightforward, while the chrome steel cage ensures reliable performance. The bearing operates well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective replacement option. It’s ideal for applications like small motors or power tools where radial loads are common.

Weighing just 22g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s a safe and practical choice for various uses.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6001/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 28 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 8 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1147 lbf
  • Static Radial Load 54 lbf
  • Max Speed 27000 rpm
  • Weight 22 g
  • price($) 4.977

Features

Performance Features of 6001/W64 Bearing

6001/W64 Bearing is built with chrome steel rings and balls, offering reliable radial load support.
Its dynamic radial load capacity reaches 1147 lbf, making it suitable for various applications.
The solid oil lubrication ensures smooth operation and reduces maintenance needs.
With a maximum speed of 27,000 rpm, it delivers consistent performance in demanding conditions.

Application

Common Applications of 6001/W64 Bearing
6001/W64 Bearing is widely used in small electric motors, such as those found in household appliances and power tools. Its solid oil lubrication ensures long service life with minimal maintenance.
In automotive applications, 6001/W64 Bearing fits well in components like alternators and water pumps, where its radial load capacity is essential. The chrome steel construction also resists wear in high-temperature environments.

Where Is 6001/W64 Bearing Used?
You’ll often find 6001/W64 Bearing in conveyor systems, where its smooth operation helps maintain consistent performance. The open design allows for easy inspection and cleaning.
It’s also a reliable choice for office equipment like printers and scanners, thanks to its compact size and efficient radial load handling.

Built for Versatility: 6001/W64 Bearing
6001/W64 Bearing works well in industrial fans, providing quiet and efficient rotation. The ABEC 1 tolerance ensures decent precision for general machinery.
For light-duty robotics, 6001/W64 Bearing offers a balance of durability and cost-effectiveness. Its metric sizing makes it compatible with many standard designs.

Automotive vs Industrial: Applications of 6001/W64 Bearing
In cars, 6001/W64 Bearing supports auxiliary systems like air conditioning compressors. Its temperature range suits both hot and cold conditions.
For factory equipment, this bearing handles moderate radial loads in machinery like packaging systems. The solid oil lubrication reduces downtime for re-greasing.
