Single Row Deep Groove Ball Bearings 415M
Single Row Deep Groove Ball Bearings 415M

Single Row Deep Groove Ball Bearings 415M

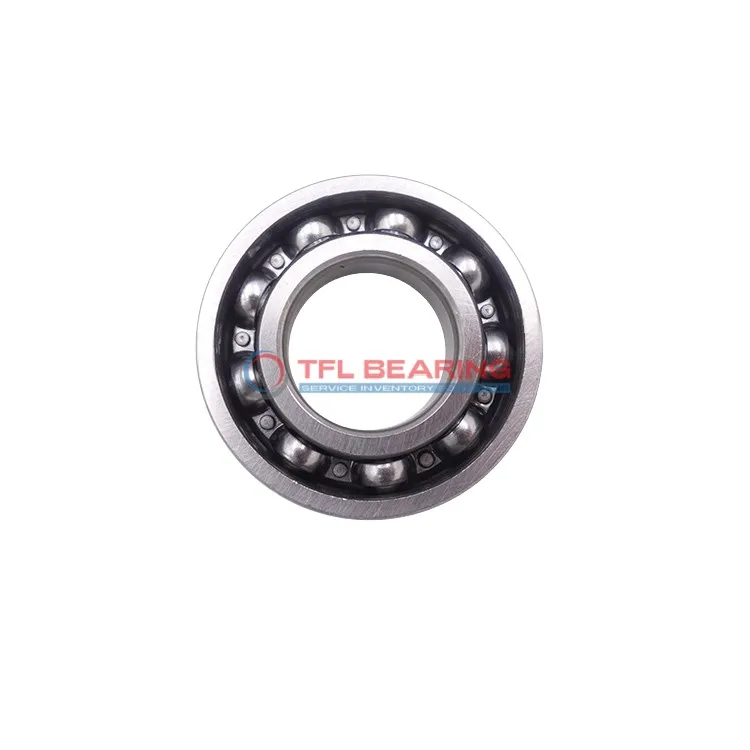

The 415M is a single-row deep groove ball bearing with a 75mm bore and 190mm outer diameter, crafted from sturdy chrome steel for long-lasting performance. It handles radial loads up to 26000 lbf, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication and maintenance, while the chrome steel cage ensures durability under stress. The bearing operates smoothly in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for use in industrial machinery, pumps, or electric motors where radial load support is essential.

Compliant with RoHS and REACH standards, it provides a safe and dependable solution for various engineering needs. Its robust construction ensures consistent performance even in demanding conditions.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 415M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 190 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 45 mm
  • Width Tolerance -0.15mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 26000 lbf
  • Static Radial Load 28000 lbf
  • price($) 207.855

Features

Performance Features of 415M Bearing

415M Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 26000 lbf, making it reliable for heavy-duty applications.
The single-row deep groove design ensures smooth operation and reduces friction.
With a temperature range of -30°C to 120°C, it performs well in various conditions.

Why Choose 415M Bearing for Precision Tasks?

415M Bearing features an ABEC 1 tolerance class, ensuring precise performance in radial applications.
The chrome steel construction provides durability and resistance to wear over time.
Its open design allows for easy lubrication, enhancing operational efficiency.
With a static radial load of 28000 lbf, it handles demanding tasks with ease.

Designed for Durability: 415M Bearing

415M Bearing’s chrome steel cage keeps the balls aligned, minimising wear and extending service life.
The deep groove design enhances load distribution, reducing stress on the bearing.
It operates efficiently within a wide temperature range, from -30°C to 120°C.
This makes it suitable for various industrial and mechanical applications.

Steel vs Ceramic Bearings: Strengths of 415M Bearing

415M Bearing uses chrome steel for all components, ensuring strength and longevity.
Its dynamic radial load capacity of 26000 lbf makes it ideal for heavy radial loads.
The open seal type allows for easy maintenance and lubrication.
With a bore diameter of 75 mm, it fits securely in various machinery setups.

Application

Practical Applications of 415M Bearing
The 415M Bearing is commonly used in industrial machinery, such as large pumps and gearboxes, where its deep groove design handles radial loads efficiently. Its open seal type simplifies lubrication and maintenance in dusty environments.

In automotive applications, 415M Bearing fits well in heavy-duty transmissions and wheel hubs, thanks to its robust chrome steel construction. The ABEC 1 tolerance ensures reliable performance without over-engineering for standard vehicles.

For automation systems, 415M Bearing supports conveyor rollers and robotic arms, balancing load capacity with smooth rotation. The metric sizing makes it interchangeable with major European brands, reducing downtime during replacements.

Where Is 415M Bearing Used?
You’ll often spot 415M Bearing in agricultural equipment like harvesters, where its durability withstands rough conditions. The wide temperature range also suits outdoor use in varying climates.

In packaging machinery, 415M Bearing ensures consistent performance for high-speed bottling lines. Its static radial load capacity prevents deformation under prolonged stress.

Built for Heavy-Duty Use: 415M Bearing
This bearing excels in construction equipment, such as crane slewing rings, due to its high dynamic load rating. The chrome steel cage adds longevity even with frequent shock loads.

For wind turbine yaw systems, 415M Bearing’s corrosion-resistant materials handle harsh weather. Its ISO P0 tolerance meets industry standards without unnecessary precision costs.

Automotive vs Industrial: Applications of 415M Bearing
In trucks, 415M Bearing reinforces axle assemblies, while factories rely on it for paper mill rollers. The same design adapts seamlessly to both environments.

Its versatility shines in food processing mixers, where easy cleaning meets hygiene norms. The open structure allows quick inspections without disassembly.
