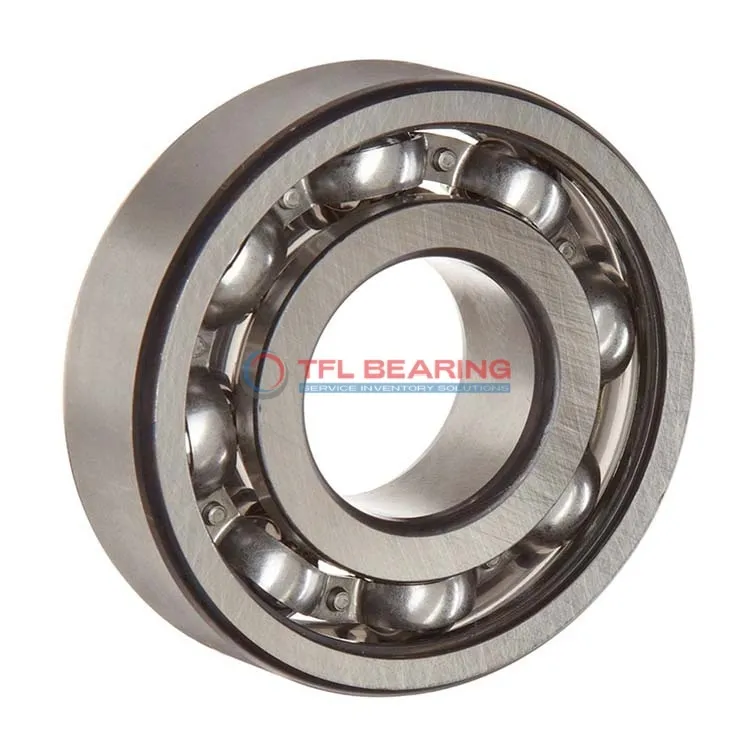

Single Row Deep Groove Ball Bearings 210SX
Single Row Deep Groove Ball Bearings 210SX

Single Row Deep Groove Ball Bearings 210SX

The 210SX is a single-row deep groove ball bearing with a 50mm bore and 90mm outer diameter, crafted from sturdy chrome steel for durability. It handles radial loads up to 8790 lbf and operates smoothly at speeds up to 8000 RPM.

Its open design simplifies maintenance, while the chrome steel cage ensures reliable performance. The bearing functions well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 0.5kg, it offers a balance of strength and manageability. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 210SX
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 8790 lbf
  • Static Radial Load 7756 lbf
  • Max Speed 8000 rpm
  • Weight 0.5 kg
  • price($) 35.712

Features

Performance Features of 210SX Bearing

210SX Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 8790 lbf, ensuring reliable performance in various applications.

The single-row deep groove design of 210SX Bearing provides smooth operation and low friction.
With a maximum speed of 8,000 rpm, it balances efficiency and durability.

210SX Bearing operates in temperatures from -30°C to 120°C, making it versatile for different environments.
The chrome steel cage maintains ball alignment, reducing wear and extending service life.

210SX Bearing’s open design simplifies installation and maintenance.
Its ABEC 1 tolerance class ensures consistent performance for standard applications.

Application

Industrial Uses of 210SX Bearing
210SX Bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity ensures reliable performance. The open design allows for easy lubrication, extending its service life in demanding conditions.

What Makes 210SX Bearing a Preferred Choice?
In automotive applications, 210SX Bearing fits well in wheel hubs and alternators, providing smooth rotation under radial loads. Its chrome steel construction offers durability, making it suitable for long-term use in vehicles.

Perfect Fit for Automation: 210SX Bearing
For robotics and automation systems, 210SX Bearing delivers consistent performance in components like robotic arms. The ABEC 1 tolerance ensures sufficient precision for most automated tasks without unnecessary cost.

Medical vs Industrial: Where 210SX Bearing Excels
While 210SX Bearing handles industrial equipment well, it also suits medical devices like centrifuges where quiet operation matters. The temperature range up to 120°C adds versatility for various environments.

Essential Roles of 210SX Bearing
In household appliances like washing machines, 210SX Bearing supports rotating parts with minimal maintenance. Its metric sizing makes replacement straightforward for both OEMs and repair technicians.
