Single Row Deep Groove Ball Bearings 16002/W64
Single Row Deep Groove Ball Bearings 16002/W64

Single Row Deep Groove Ball Bearings 16002/W64

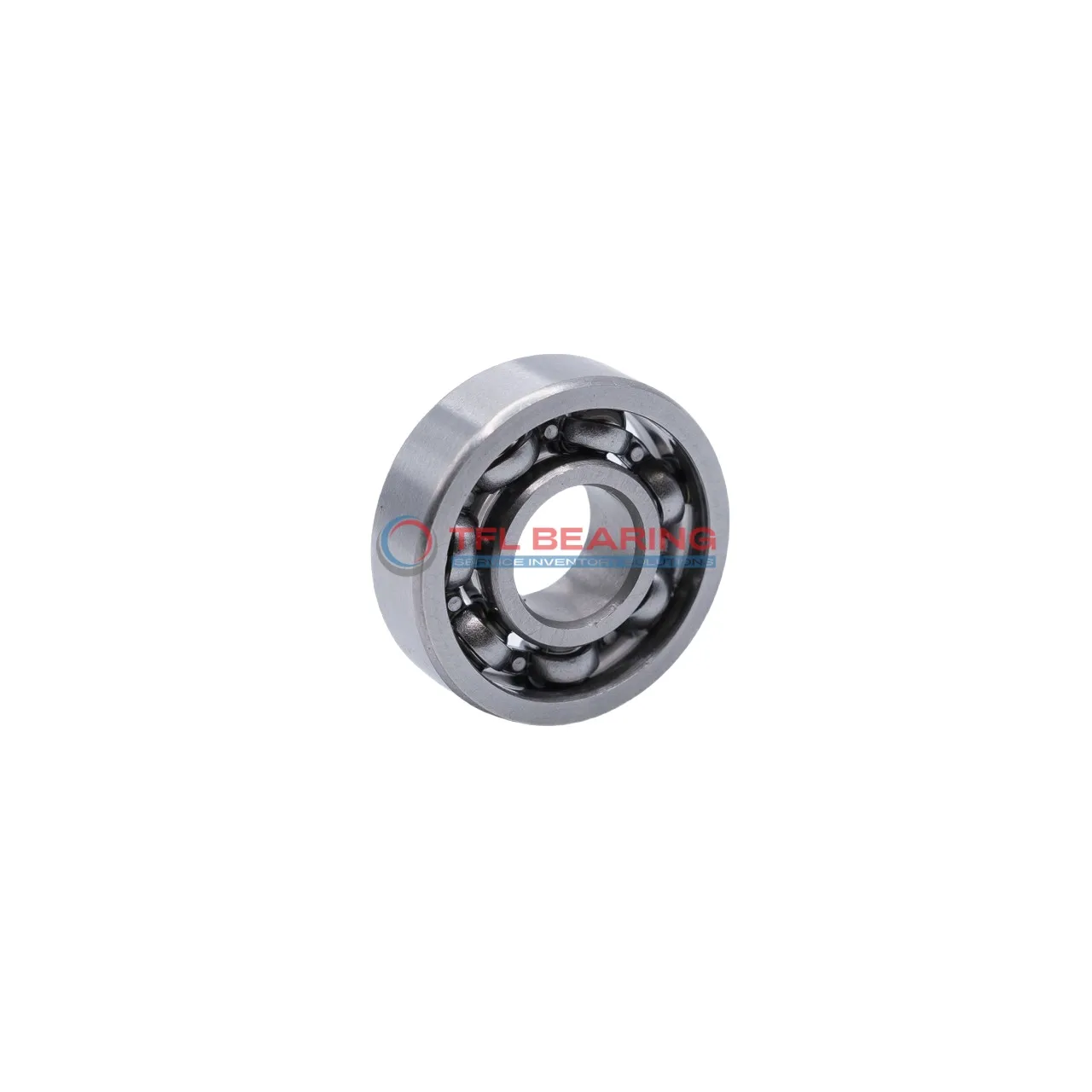

The 16002/W64 is a compact single-row deep groove ball bearing, measuring 15mm by 32mm by 8mm, crafted from durable chrome steel. It handles radial loads up to 1259 lbf and spins smoothly at speeds up to 19,000 RPM.

Its open design and solid oil lubrication make maintenance straightforward, while the chrome steel cage ensures reliable performance. The bearing operates well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. It’s ideal for small motors, fans, or appliances where space is limited but performance is key.

Weighing just 27g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s a safe and practical choice for various applications.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 16002/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 8 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1259 lbf
  • Static Radial Load 629 lbf
  • Max Speed 19000 rpm
  • Weight 27 g
  • price($) 6.264

Features

How Does 16002/W64 Bearing Reduce Friction?

16002/W64 Bearing features a deep groove design, optimised for smooth radial load distribution.
Its chrome steel construction ensures durability while maintaining low friction during operation.

The solid oil lubrication reduces maintenance needs, keeping performance consistent over time.
With a maximum speed of 19,000 rpm, it delivers reliable efficiency in various applications.

Designed for a temperature range of -30°C to 120°C, it performs well in diverse conditions.
The ABEC 1 tolerance class ensures dependable precision without unnecessary complexity.

Application

Common Applications of 16002/W64 Bearing
In industrial settings, 16002/W64 Bearing is commonly used in small motors and pumps, where its radial load capacity ensures reliable performance. The open design simplifies lubrication, making it suitable for environments with frequent maintenance needs.

Where Is 16002/W64 Bearing Used?
You’ll often find 16002/W64 Bearing in automotive applications like alternators and cooling fans, thanks to its compact size and solid oil lubrication. Its chrome steel construction also handles moderate speeds well, making it a dependable choice for everyday use.

Built for Versatility: 16002/W64 Bearing
This bearing works nicely in household appliances like washing machines and fans, where quiet operation matters. The ABEC 1 tolerance ensures smooth rotation without overcomplicating the design or cost.

Light-Duty vs Heavy-Duty: Best Uses for 16002/W64 Bearing
For light-duty tasks, 16002/W64 Bearing fits well in office equipment like printers, while its durability also suits small conveyor systems. The temperature range of -30° to 120°C covers most typical operating conditions.

Practical Applications of 16002/W64 Bearing
In DIY tools like electric drills, 16002/W64 Bearing offers a balance of affordability and performance. Its metric sizing makes replacements straightforward for both professionals and hobbyists.
