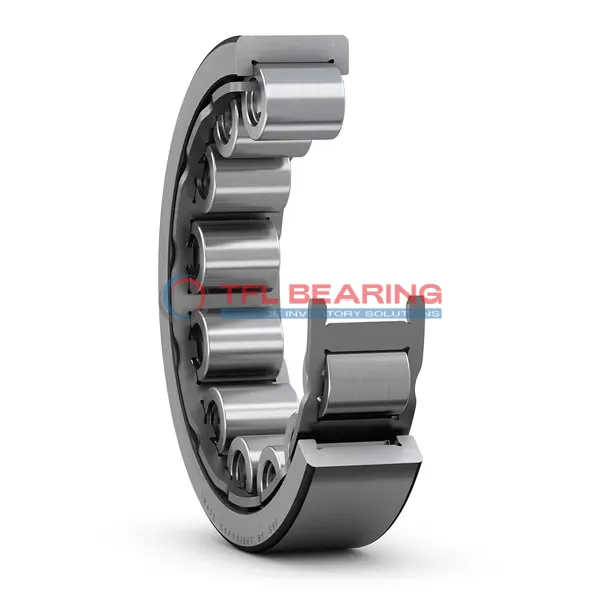

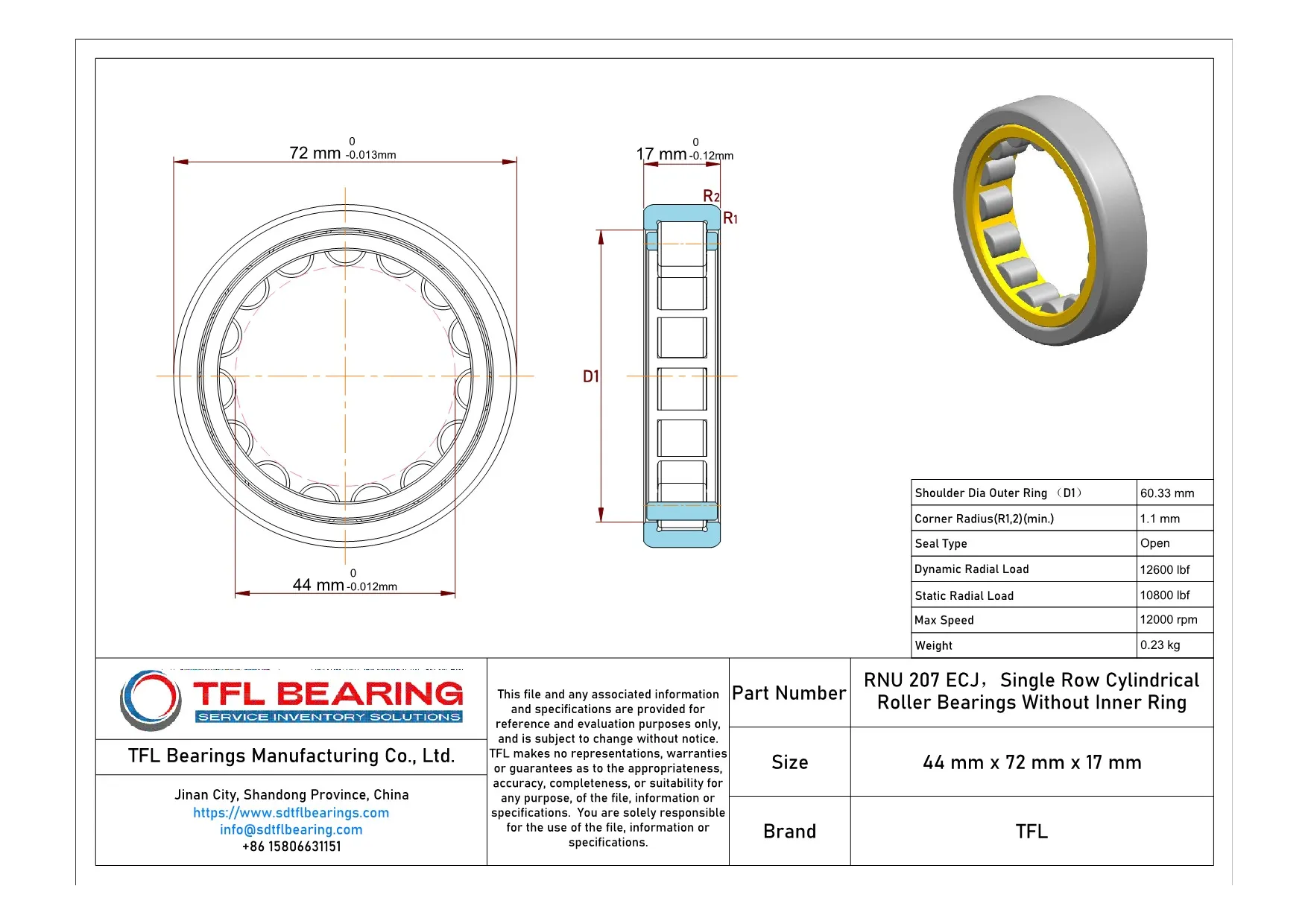

The RNU 207 ECJ is a single-row cylindrical roller bearing without an inner ring, featuring a 44mm diameter under rollers and a 72mm outer diameter. Made from durable chrome steel, it handles combined loads up to 12600 lbf and speeds up to 12000 RPM.
Its open design and stamped steel cage ensure smooth operation and easy lubrication with grease or oil. The bearing performs reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like conveyor systems or machinery where combined loads are present.
Weighing 0.23kg, it’s a sturdy yet lightweight option. Compliant with RoHS and REACH standards for safe use.
"*" indicates required fields
Performance Features of RNU 207 ECJ Bearing
RNU 207 ECJ Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 12600 lbf, ensuring reliable performance in various applications.
The stamped steel cage keeps the rollers centred, reducing friction and enhancing durability.
With a maximum speed of 12000 rpm, it delivers efficient operation under demanding conditions.
RNU 207 ECJ Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, minimising maintenance needs.
Industrial Uses of RNU 207 ECJ Bearing
RNU 207 ECJ Bearing is commonly used in heavy machinery like gearboxes and pumps, where its cylindrical roller design handles combined loads efficiently. The open seal type allows for easy lubrication, extending its service life in demanding conditions.
In automotive applications, RNU 207 ECJ Bearing fits well in wheel hubs and transmissions, thanks to its high dynamic radial load capacity. The chrome steel construction ensures durability even under constant stress.
For automation systems, RNU 207 ECJ Bearing’s high-speed capability makes it suitable for robotic arms and conveyor belts. Its stamped steel cage keeps rollers centred, reducing friction during operation.
What Makes RNU 207 ECJ Bearing a Preferred Choice?
RNU 207 ECJ Bearing stands out in industrial fans due to its ability to handle both radial and axial loads smoothly. The grease or oil lubrication options provide flexibility for different operating environments.
In construction equipment, RNU 207 ECJ Bearing’s robust design supports heavy loads in cranes and excavators. The metric sizing ensures compatibility with a wide range of machinery parts.
For agricultural machinery, RNU 207 ECJ Bearing’s temperature range makes it reliable in varying weather conditions. The chrome steel rollers resist wear, even in dusty or humid settings.
