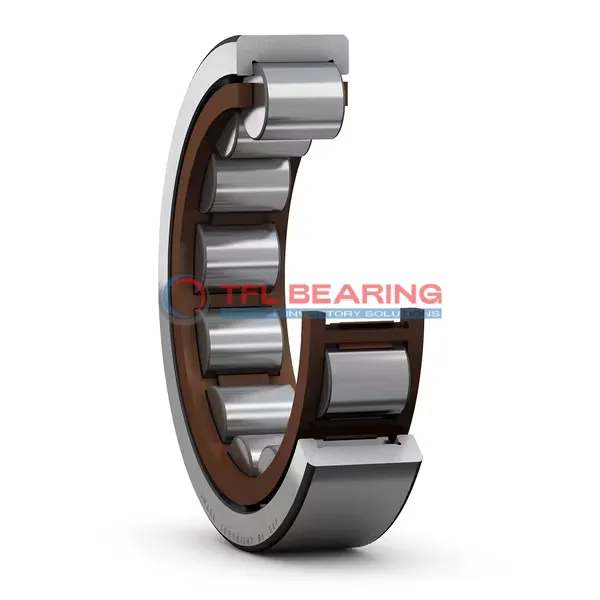

The RNU 205 ECP is a single-row cylindrical roller bearing without an inner ring, featuring a 31.5mm diameter under rollers and a 52mm outer diameter. Made from chrome steel, it’s built to handle combined loads with a dynamic radial load capacity of 7312 lbf.
Its open design and PA66 cage ensure smooth operation at speeds up to 16000 RPM, while the roller-centred construction enhances stability. The bearing works well in temperatures from -30°C to 110°C, suitable for both grease and oil lubrication.
This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for applications like conveyor systems or machinery where high-speed performance and durability are needed.
Weighing just 0.1kg, it’s lightweight yet robust, and complies with RoHS and REACH standards for safe use.
"*" indicates required fields
Why Choose RNU 205 ECP Bearing for Precision Tasks?
RNU 205 ECP Bearing features a chrome steel construction, ensuring durability and resistance to wear.
Its dynamic radial load capacity of 7312 lbf makes it suitable for high-performance applications.
The PA66 cage keeps the rollers centred, promoting smooth operation and reducing friction.
With a maximum speed of 16,000 rpm, it delivers reliable performance in demanding conditions.
RNU 205 ECP Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open design allows for easy lubrication, whether using grease or oil.
Industrial Uses of RNU 205 ECP Bearing
RNU 205 ECP Bearing is commonly used in machine tools, where its cylindrical roller design handles combined loads efficiently. The open seal type allows for easy lubrication, making it suitable for high-speed operations up to 16000 rpm.
In automotive applications, RNU 205 ECP Bearing fits well in gearboxes and drivetrains, thanks to its chrome steel construction. Its metric dimensions ensure compatibility with a variety of vehicle designs, providing reliable performance under heavy loads.
For automation systems, RNU 205 ECP Bearing’s PA66 cage ensures smooth operation in robotic arms and conveyor belts. The roller-centred design reduces friction, enhancing longevity in continuous-use environments.
What Makes RNU 205 ECP Bearing a Preferred Choice?
RNU 205 ECP Bearing stands out in industrial fans due to its ability to handle both radial and axial loads. The grease or oil lubrication options make it adaptable to different operating conditions.
In printing machinery, RNU 205 ECP Bearing’s high-speed capability ensures precise paper handling. The chrome steel rollers provide durability, reducing maintenance needs in high-volume production settings.
