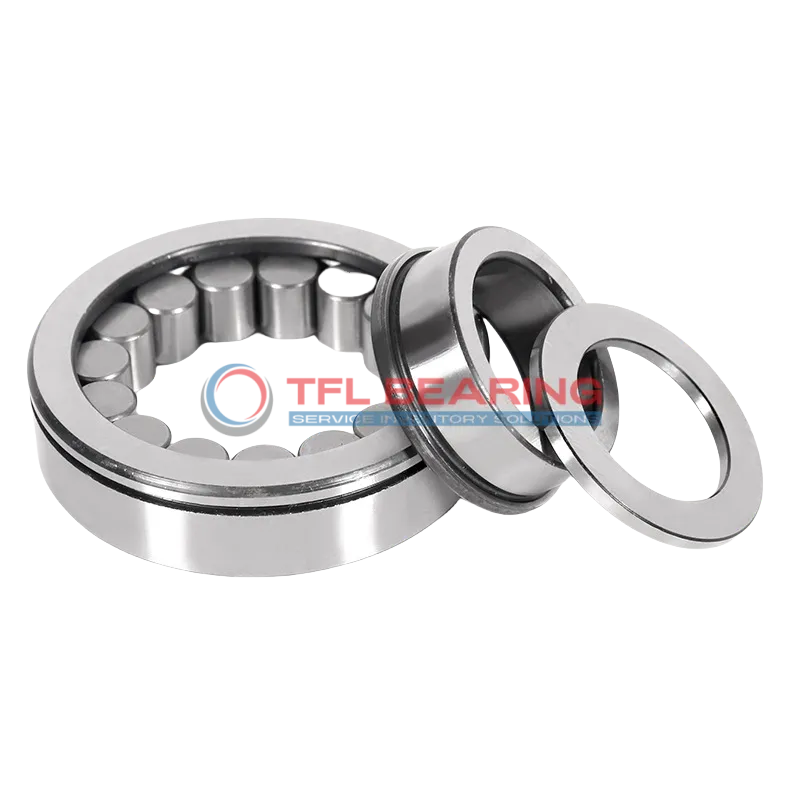

Single Row Cylindrical Roller Bearings With Inner Ring NUP 318 ECJ
Single Row Cylindrical Roller Bearings With Inner Ring NUP 318 ECJ

Single Row Cylindrical Roller Bearings With Inner Ring NUP 318 ECJ

The NUP 318 ECJ is a single row cylindrical roller bearing with a 90mm bore and 190mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 82125 lbf and operates smoothly at speeds up to 4000 RPM.

Its open design allows easy lubrication with grease or oil, while the PA66 cage ensures reliable performance. The bearing works well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or gearboxes where radial and axial loads are present.

Weighing 5.54kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

The inner ring design with a 124mm shoulder diameter provides added stability. Suitable for setups requiring precise axial displacement control.

Its 43mm width and 3mm chamfer dimensions ensure easy installation. Perfect for maintenance tasks where durability and ease of handling are key.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number NUP 318 ECJ
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 190 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 43 mm
  • Width Tolerance -0.20mm to 0
  • Shoulder Dia Of Inner Ring 124 mm
  • Chamfer Dimension r1,2(min.) 3 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PA66 cage, roller centred
  • Dynamic Radial Load 82125 lbf
  • Static Radial Load 81000 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4000 rpm
  • Weight 5.54 kg
  • Shoulder Dia Of Outer Ring 160.3 mm
  • Raceway Diameter Of Inner Ring 113.5 mm
  • Chamfer Dimension Of Loose Flange Ring(r3,4)(min.) 3 mm

Features

How Does NUP 318 ECJ Bearing Handle Combined Loads?

NUP 318 ECJ Bearing features a single-row cylindrical roller design, ideal for handling both radial and axial loads.
Its chrome steel construction ensures durability, with a dynamic radial load capacity of 82,125 lbf.
The PA66 cage keeps rollers centred, reducing friction and enhancing performance.
With a maximum speed of 4,000 rpm, it suits high-speed industrial applications.

Application

Industrial Uses of NUP 318 ECJ Bearing
NUP 318 ECJ Bearing is commonly used in heavy machinery like industrial gearboxes and large electric motors, where its cylindrical roller design handles both radial and axial loads efficiently. The chrome steel construction ensures durability in demanding environments.

Where Is NUP 318 ECJ Bearing Used?
You’ll find NUP 318 ECJ Bearing in automotive applications such as truck transmissions, where its high dynamic load capacity supports smooth operation. The open design allows for easy lubrication, extending service life.

Built for Heavy-Duty Use: NUP 318 ECJ Bearing
NUP 318 ECJ Bearing excels in construction equipment like cranes and excavators, thanks to its robust PA66 cage and chrome steel rollers. Its metric sizing makes it a versatile choice for global machinery standards.

Automotive vs Aerospace: Applications of NUP 318 ECJ Bearing
In automotive systems, NUP 318 ECJ Bearing is ideal for wheel hubs and differentials, while in aerospace, it supports auxiliary power units. The temperature range of -30° to 110°C ensures reliability in varied conditions.

Perfect Fit for Automation: NUP 318 ECJ Bearing
NUP 318 ECJ Bearing is a reliable choice for robotic arms and automated production lines, where precision and load capacity are critical. The single-row design simplifies installation and maintenance.
