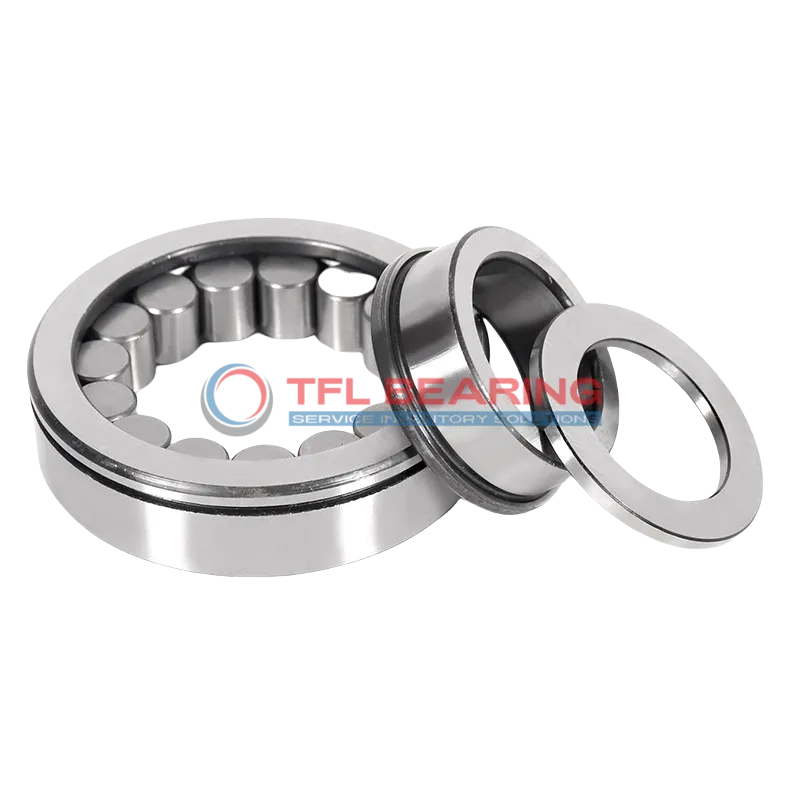

The NUP 313 ECJ is a single row cylindrical roller bearing with a 65mm bore and 140mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 47700 lbf and operates smoothly at speeds up to 6000 RPM.
Its open design allows for easy lubrication with grease or oil, while the PA66 cage ensures reliable performance. The bearing works well in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for industrial machinery or gearboxes where combined loads are common.
Weighing 2.3kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.
The inner ring design with a 90.5mm shoulder diameter provides added stability. The chamfer dimensions of 2.1mm ensure easy installation and alignment.
Suitable for applications requiring precise axial displacement and high radial load capacity. Its construction makes it a dependable option for heavy-duty machinery.
"*" indicates required fields
Performance Features of NUP 313 ECJ Bearing
NUP 313 ECJ Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 47,700 lbf, ensuring reliable performance in heavy-duty applications.
The PA66 cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 6,000 rpm, it balances durability and efficiency in various conditions.
NUP 313 ECJ Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.
The precise chamfer dimensions of 2.1 mm ensure easy installation and alignment.
This makes NUP 313 ECJ Bearing a practical choice for industrial applications.
Industrial Uses of NUP 313 ECJ Bearing
NUP 313 ECJ Bearing is commonly used in heavy machinery like industrial gearboxes and large electric motors, where its cylindrical roller design handles both radial and axial loads efficiently.
The chrome steel construction ensures durability in high-stress environments, making it a reliable choice for long-term operation.
Where Is NUP 313 ECJ Bearing Used?
In automotive applications, NUP 313 ECJ Bearing supports components such as transmission systems and wheel hubs, thanks to its combined load capacity.
The PA66 cage provides smooth operation at high speeds, which is essential for vehicle performance.
Built for Heavy-Duty Use: NUP 313 ECJ Bearing
NUP 313 ECJ Bearing excels in construction equipment like cranes and excavators, where its robust design withstands heavy loads and harsh conditions.
The open seal type allows for easy lubrication, ensuring minimal downtime during maintenance.
Automotive vs Aerospace: Applications of NUP 313 ECJ Bearing
In automotive settings, NUP 313 ECJ Bearing is ideal for drivetrain components, offering stability under varying loads.
For aerospace applications, its precision engineering ensures reliable performance in auxiliary systems, though it’s more commonly found in ground-based machinery.
Practical Applications of NUP 313 ECJ Bearing
NUP 313 ECJ Bearing is a go-to choice for conveyor systems in manufacturing plants, where its high dynamic radial load capacity keeps production lines running smoothly.
The grease or oil lubrication options make it adaptable to different operational needs.
