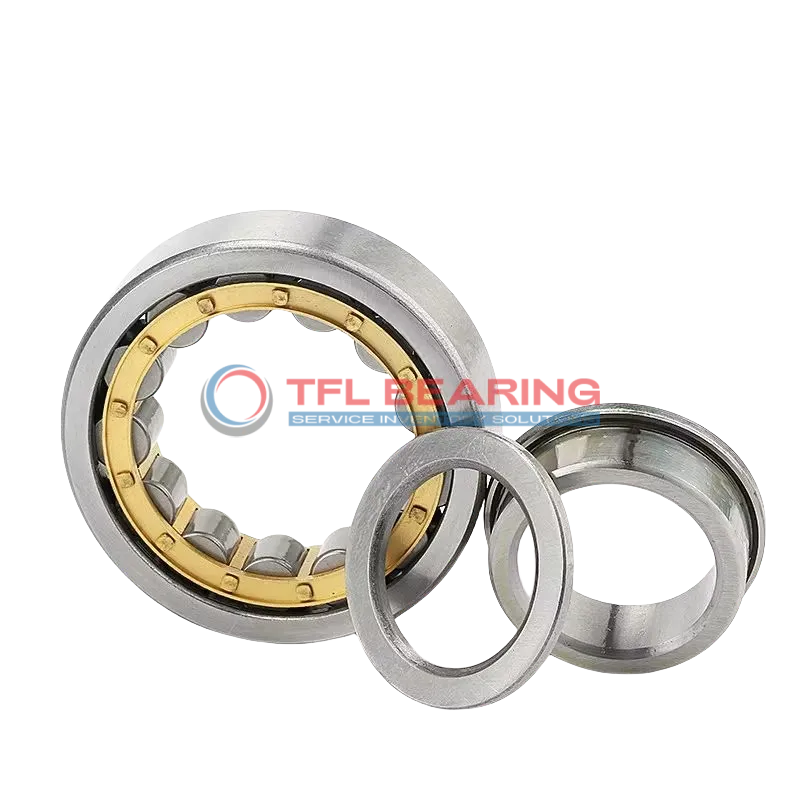

Single Row Cylindrical Roller Bearings With Inner Ring NUP 238 ECML
Single Row Cylindrical Roller Bearings With Inner Ring NUP 238 ECML

Single Row Cylindrical Roller Bearings With Inner Ring NUP 238 ECML

The NUP 238 ECML is a single row cylindrical roller bearing with a 190mm bore and 340mm outer diameter, built from tough chrome steel. It handles combined loads up to 180000 lbf and runs smoothly at speeds up to 3000 RPM.

Its PA66 cage keeps rollers centred for even load distribution, while the open design allows easy lubrication with grease or oil. The bearing performs well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy machinery or industrial gearboxes where high radial and axial loads are present.

Weighing 22.6kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use in various applications.

Get A Free Quote

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number NUP 238 ECML
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 190 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 340 mm
  • Outer Dia Tolerance -0.04mm to 0
  • Width 55 mm
  • Width Tolerance -0.30mm to 0
  • Shoulder Dia Of Inner Ring 244 mm
  • Chamfer Dimension r1,2(min.) 4 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PA66 cage, roller centred
  • Dynamic Radial Load 180000 lbf
  • Static Radial Load 217125 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 3000 rpm
  • Weight 22.6 kg
  • Shoulder Dia Of Outer Ring 295 mm
  • Raceway Diameter Of Inner Ring 230 mm
  • Chamfer Dimension Of Loose Flange Ring(r3,4)(min.) 4 mm

Features

Performance Features of NUP 238 ECML Bearing

NUP 238 ECML Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 180,000 lbf, ensuring reliable performance in heavy-duty applications.

The PA66 cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 3,000 rpm, it balances durability and efficiency in demanding conditions.

NUP 238 ECML Bearing operates smoothly in temperatures from -30° to 110°C, making it versatile for various environments.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

The precise tolerances and chamfer dimensions ensure easy installation and alignment.
This bearing is ideal for applications requiring high load capacity and long service life.

Application

Industrial Uses of NUP 238 ECML Bearing
NUP 238 ECML Bearing is commonly used in heavy machinery like industrial gearboxes and large electric motors, where its cylindrical roller design handles both radial and axial loads efficiently. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, NUP 238 ECML Bearing supports components such as truck transmissions and differential systems, providing reliable performance under high loads. Its metric sizing makes it a versatile choice for various vehicle designs.

For automation systems, NUP 238 ECML Bearing’s high-speed capability and precise alignment make it suitable for robotic arms and conveyor systems. The PA66 cage material reduces friction, enhancing operational smoothness.

NUP 238 ECML Bearing also finds use in wind turbines, where its robust design withstands variable loads and harsh weather conditions. The open seal type allows for easy lubrication, extending service life.

In construction equipment, NUP 238 ECML Bearing’s high static radial load capacity ensures stability in cranes and excavators. The temperature range of -30° to 110°C makes it adaptable to diverse working conditions.
