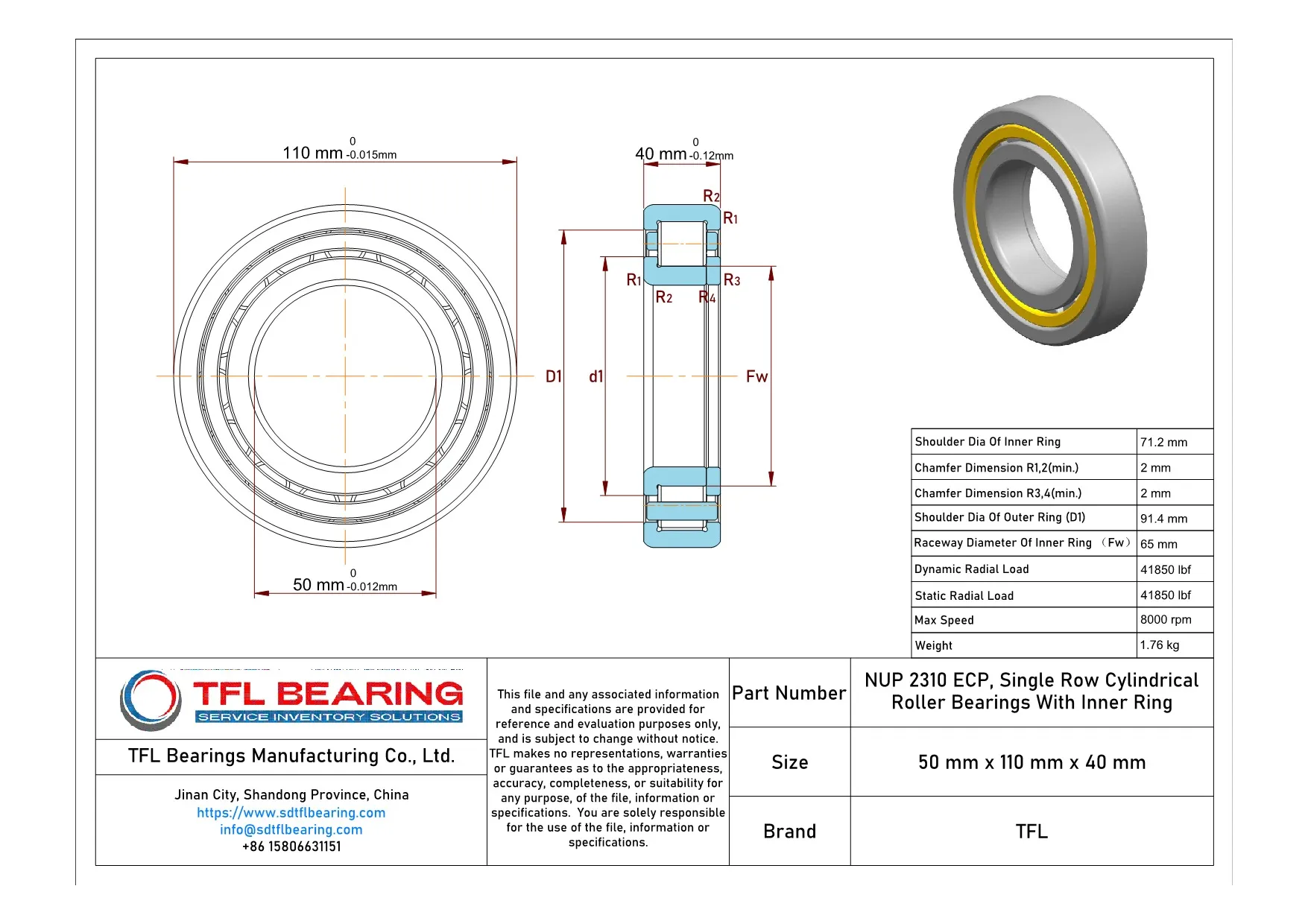

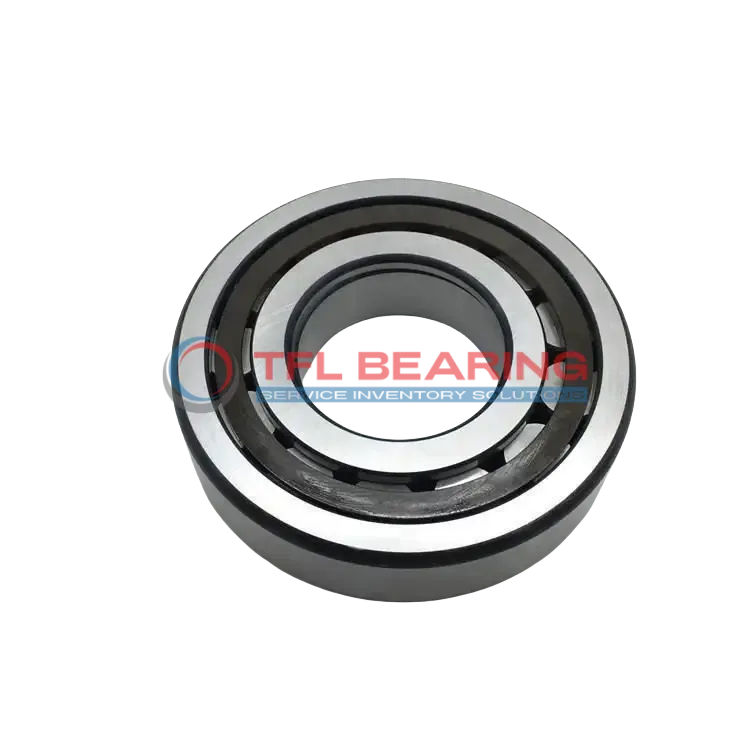

The NUP 2310 ECP is a single row cylindrical roller bearing with a 50mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 41850 lbf and reaches speeds of 8000 RPM.
Its PA66 cage keeps rollers centred for smooth operation, while the open design allows easy lubrication with grease or oil. The bearing performs reliably in temperatures from -30°C to 110°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like gearboxes or industrial machinery where combined loads are common.
Weighing 1.76kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.
"*" indicates required fields
Performance Features of NUP 2310 ECP Bearing
NUP 2310 ECP Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 41850 lbf, ensuring reliable performance in various applications.
The PA66 cage keeps the rollers centred, reducing friction and enhancing durability.
With a maximum speed of 8000 rpm, it delivers efficient operation under demanding conditions.
NUP 2310 ECP Bearing works in temperatures from -30° to 110°C, making it versatile for different environments.
Its open design allows for easy lubrication with grease or oil, simplifying maintenance.
The precise dimensions and tolerances ensure smooth installation and operation.
This bearing is ideal for applications requiring high load capacity and long service life.
Industrial Uses of NUP 2310 ECP Bearing
NUP 2310 ECP Bearing is commonly used in heavy machinery like gearboxes and electric motors, where its cylindrical roller design handles both radial and axial loads efficiently. The chrome steel construction ensures durability in demanding industrial environments.
What Makes NUP 2310 ECP Bearing a Preferred Choice?
With its high dynamic radial load capacity, NUP 2310 ECP Bearing is ideal for applications like conveyor systems and pumps. The PA66 cage provides smooth operation even at high speeds, up to 8000 rpm.
Built for Heavy-Duty Use: NUP 2310 ECP Bearing
In automotive transmissions, NUP 2310 ECP Bearing offers reliable performance under combined loads. Its metric sizing and open design make it easy to integrate into various vehicle models.
Automotive vs Industrial: Applications of NUP 2310 ECP Bearing
NUP 2310 ECP Bearing excels in both automotive and industrial settings, from wheel hubs to heavy-duty compressors. The temperature range of -30° to 110°C ensures versatility across different operating conditions.
Perfect Fit for Automation: NUP 2310 ECP Bearing
NUP 2310 ECP Bearing is a great choice for robotic arms and automated assembly lines, thanks to its precision and load-handling capabilities. The grease or oil lubrication options add flexibility for different maintenance needs.
