Single Row Cylindrical Roller Bearings With Inner Ring NUP 226 ECJ
Single Row Cylindrical Roller Bearings With Inner Ring NUP 226 ECJ

Single Row Cylindrical Roller Bearings With Inner Ring NUP 226 ECJ

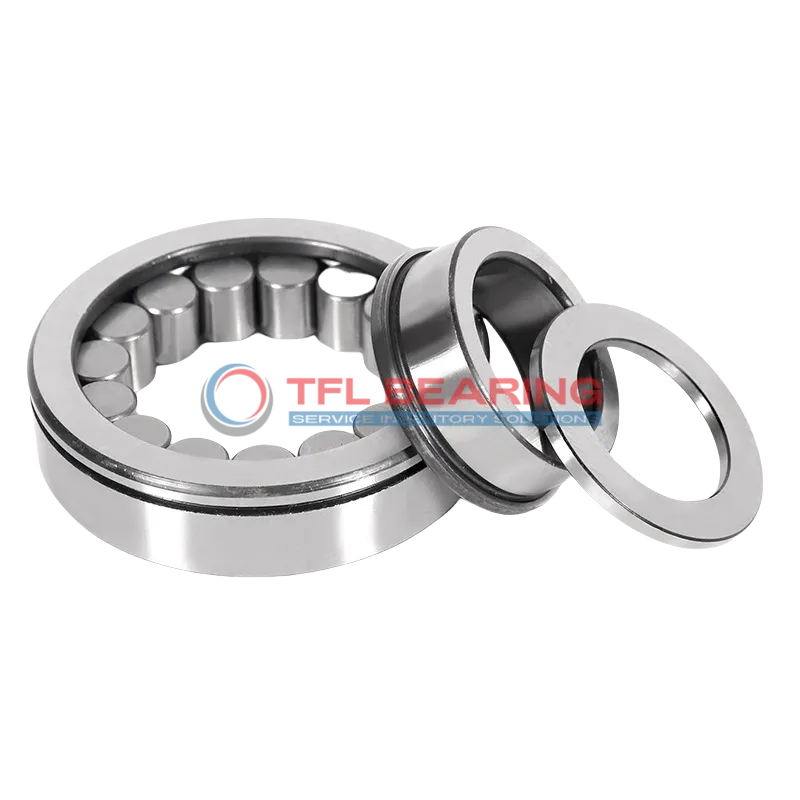

The NUP 226 ECJ is a single row cylindrical roller bearing with a 130mm bore and 230mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 93375 lbf and runs smoothly at speeds up to 3000 RPM.

Its open design allows for easy lubrication with grease or oil, while the PA66 cage ensures reliable performance. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or machinery where both radial and axial loads are present.

Weighing 6.5kg, it’s built to last with precise tolerances for a secure fit. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number NUP 226 ECJ
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 130 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 230 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 40 mm
  • Width Tolerance -0.25mm to 0
  • Shoulder Dia Of Inner Ring 164 mm
  • Chamfer Dimension r1,2(min.) 3 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PA66 cage, roller centred
  • Dynamic Radial Load 93375 lbf
  • Static Radial Load 102375 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 3000 rpm
  • Weight 6.5 kg
  • Shoulder Dia Of Outer Ring 200.3 mm
  • Raceway Diameter Of Inner Ring 153.5 mm
  • Chamfer Dimension Of Loose Flange Ring(r3,4)(min.) 3 mm

Features

Performance Features of NUP 226 ECJ Bearing

NUP 226 ECJ Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 93,375 lbf, ensuring reliable performance in heavy-duty applications.

The PA66 cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 3,000 rpm, it balances durability and efficiency in demanding conditions.

NUP 226 ECJ Bearing operates smoothly in temperatures from -30° to 110°C, making it versatile for various environments.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

The precise dimensions and tolerances ensure a perfect fit, enhancing overall performance.
This bearing is ideal for applications requiring high load capacity and long service life.

Application

Industrial Uses of NUP 226 ECJ Bearing
NUP 226 ECJ Bearing is commonly used in heavy machinery like industrial gearboxes and large electric motors, where its cylindrical roller design handles both radial and axial loads efficiently. The chrome steel construction ensures durability in demanding environments.

Where Is NUP 226 ECJ Bearing Used?
You’ll often find NUP 226 ECJ Bearing in conveyor systems and mining equipment, thanks to its ability to withstand high radial loads. The open design allows for easy lubrication, extending its service life in harsh conditions.

Built for Heavy-Duty Use: NUP 226 ECJ Bearing
NUP 226 ECJ Bearing excels in applications like steel mills and paper processing machines, where its robust design copes with continuous heavy loads. The PA66 cage provides stability while reducing friction during high-speed operations.

Automotive vs Aerospace: Applications of NUP 226 ECJ Bearing
In automotive settings, NUP 226 ECJ Bearing supports drivetrain components like differentials, offering reliable performance under combined loads. For aerospace, its precision engineering makes it suitable for auxiliary systems requiring consistent accuracy.

Key Fields for NUP 226 ECJ Bearing
NUP 226 ECJ Bearing is a go-to choice for wind turbines and hydraulic pumps, where its high dynamic load capacity ensures long-term reliability. The metric sizing also makes it compatible with a wide range of industrial equipment globally.
