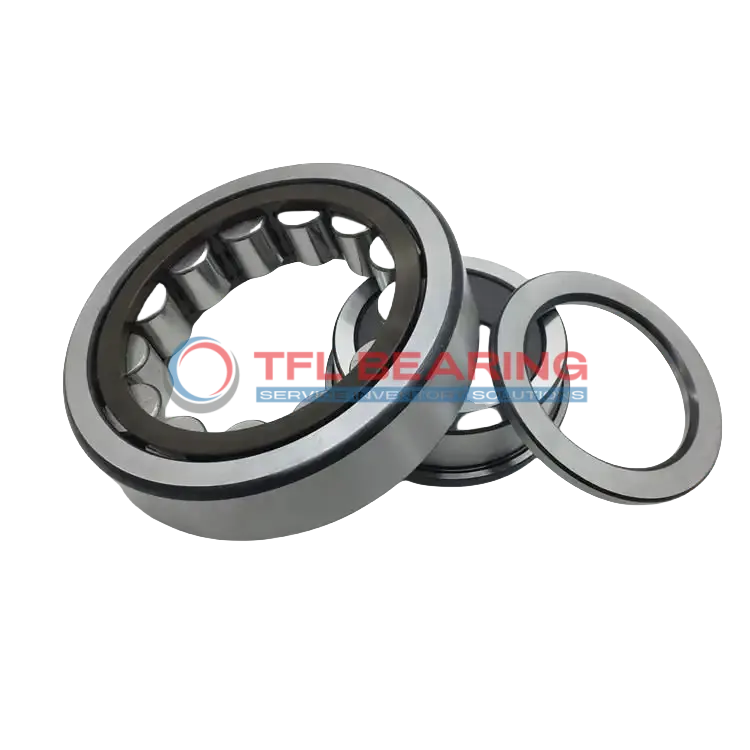

The NUP 2224 ECP is a single row cylindrical roller bearing with a 120mm bore and 215mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 117000 lbf and operates smoothly at speeds up to 4000 RPM.
Its open design allows easy lubrication with grease or oil, while the PA66 cage ensures durability and centred roller alignment. The bearing performs reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or machinery where combined loads are common.
Weighing 8.64kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and sustainable use.
"*" indicates required fields
Performance Features of NUP 2224 ECP Bearing
NUP 2224 ECP Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 117000 lbf, ensuring reliable performance in heavy-duty applications.
The PA66 cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 4000 rpm, it balances durability and efficiency in various conditions.
NUP 2224 ECP Bearing operates smoothly within a temperature range of -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.
The precise chamfer dimensions of 2.1 mm ensure proper fit and alignment during installation.
This makes NUP 2224 ECP Bearing a dependable choice for industrial applications.
Industrial Uses of NUP 2224 ECP Bearing
NUP 2224 ECP Bearing is commonly used in heavy machinery like industrial gearboxes and large pumps, where its cylindrical roller design handles both radial and axial loads efficiently. The chrome steel construction ensures durability even in demanding environments.
In automotive applications, NUP 2224 ECP Bearing supports components such as drivetrains and wheel hubs, providing reliable performance under high-speed conditions. Its PA66 cage helps reduce friction, making it a practical choice for long-term use.
For automation systems, NUP 2224 ECP Bearing is ideal for robotic arms and conveyor belts, where precision and load capacity are key. The open seal design allows for easy lubrication, ensuring smooth operation over time.
In wind turbines, NUP 2224 ECP Bearing plays a crucial role in the main shaft assembly, thanks to its high dynamic radial load capacity. The metric sizing ensures compatibility with a wide range of European-designed equipment.
NUP 2224 ECP Bearing also finds use in printing presses, where its ability to handle combined loads ensures consistent performance. The temperature range of -30° to 110°C makes it suitable for various operating conditions.
