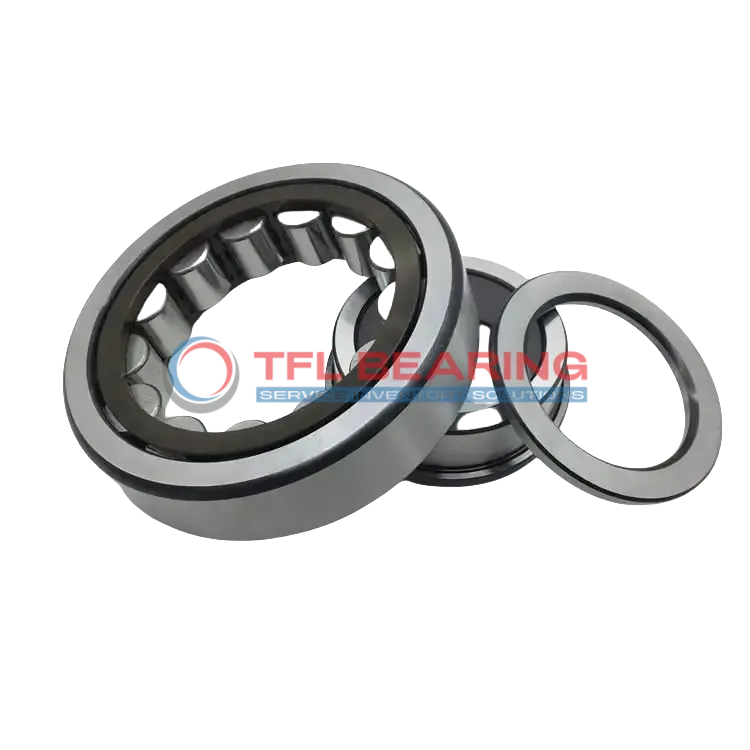

Single Row Cylindrical Roller Bearings With Inner Ring NUP 2219 ECP
Single Row Cylindrical Roller Bearings With Inner Ring NUP 2219 ECP

Single Row Cylindrical Roller Bearings With Inner Ring NUP 2219 ECP

The NUP 2219 ECP is a single row cylindrical roller bearing with a 95mm bore and 170mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 73125 lbf and operates smoothly at speeds up to 5000 RPM.

Its open design allows for easy lubrication with grease or oil, while the PA66 cage ensures reliable performance. The bearing works well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or machinery where radial and axial loads are present.

Weighing 4.02kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number NUP 2219 ECP
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 95 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 43 mm
  • Width Tolerance -0.20mm to 0
  • Shoulder Dia Of Inner Ring 120 mm
  • Chamfer Dimension r1,2(min.) 2.1 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PA66 cage, roller centred
  • Dynamic Radial Load 73125 lbf
  • Static Radial Load 84375 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5000 rpm
  • Weight 4.02 kg
  • Shoulder Dia Of Outer Ring 147.4 mm
  • Raceway Diameter Of Inner Ring 112.5 mm
  • Chamfer Dimension Of Loose Flange Ring(r3,4)(min.) 2.1 mm

Features

Performance Features of NUP 2219 ECP Bearing

NUP 2219 ECP Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 73125 lbf, ensuring reliable performance in heavy-duty applications.

The PA66 cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 5000 rpm, it balances durability and efficiency in various conditions.

NUP 2219 ECP Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, minimising maintenance needs.

Application

Industrial Uses of NUP 2219 ECP Bearing
NUP 2219 ECP Bearing is commonly used in heavy machinery like industrial gearboxes and large electric motors, where its cylindrical roller design handles both radial and axial loads efficiently. The chrome steel construction ensures durability in demanding environments.

What Makes NUP 2219 ECP Bearing a Preferred Choice?
In automotive applications, NUP 2219 ECP Bearing supports components such as transmissions and differentials, thanks to its high load capacity and stability. The PA66 cage reduces friction, making it suitable for high-speed operations.

Built for Heavy-Duty Use: NUP 2219 ECP Bearing
For automation systems, NUP 2219 ECP Bearing is ideal for robotic arms and conveyor belts, where precision and reliability are key. Its open design allows for easy lubrication, extending service life in continuous-use scenarios.

Medical vs Industrial: Where NUP 2219 ECP Bearing Excels
While NUP 2219 ECP Bearing is robust enough for industrial presses, its precision also makes it suitable for medical imaging devices. The temperature range ensures consistent performance in varied conditions.
