Single Row Cylindrical Roller Bearings With Inner Ring NUP 220 ECP
Single Row Cylindrical Roller Bearings With Inner Ring NUP 220 ECP

Single Row Cylindrical Roller Bearings With Inner Ring NUP 220 ECP

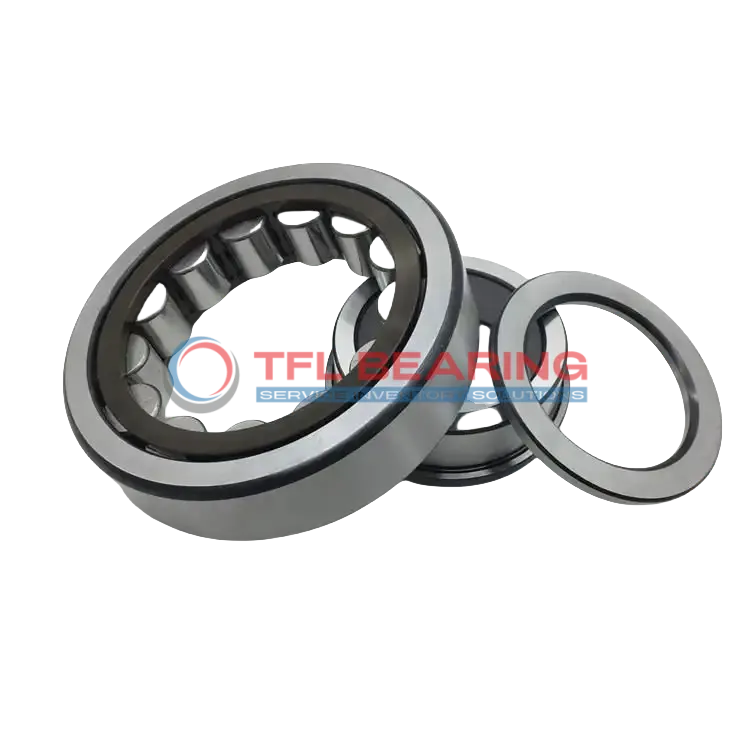

The NUP 220 ECP is a single row cylindrical roller bearing with a 100mm bore and 180mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 64125 lbf and operates smoothly at speeds up to 4000 RPM.

Its open design allows for easy lubrication with grease or oil, while the PA66 cage ensures reliable performance. The bearing works well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or gearboxes where combined loads are common.

Weighing 3.6kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and sustainable use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number NUP 220 ECP
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 34 mm
  • Width Tolerance -0.20mm to 0
  • Shoulder Dia Of Inner Ring 127 mm
  • Chamfer Dimension r1,2(min.) 2.1 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PA66 cage, roller centred
  • Dynamic Radial Load 64125 lbf
  • Static Radial Load 68625 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4000 rpm
  • Weight 3.6 kg
  • Shoulder Dia Of Outer Ring 155.55 mm
  • Raceway Diameter Of Inner Ring 119 mm
  • Chamfer Dimension Of Loose Flange Ring(r3,4)(min.) 2.1 mm

Features

Performance Features of NUP 220 ECP Bearing

NUP 220 ECP Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 64125 lbf, ensuring reliable performance in heavy-duty applications.

The PA66 cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 4000 rpm, it balances durability and efficiency in various conditions.

NUP 220 ECP Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

The precise chamfer dimensions of 2.1 mm ensure easy installation and alignment.
This bearing is ideal for applications requiring high radial load capacity and long service life.

Application

Industrial Uses of NUP 220 ECP Bearing
NUP 220 ECP Bearing is commonly used in heavy machinery like industrial gearboxes and large electric motors, where its cylindrical roller design handles both radial and axial loads efficiently. The chrome steel construction ensures durability in demanding environments.

In automotive applications, NUP 220 ECP Bearing fits well in transmission systems and wheel hubs, providing reliable performance under combined loads. Its metric sizing makes it a versatile choice for various vehicle models.

For automation equipment, NUP 220 ECP Bearing’s high-speed capability (up to 4000 rpm) suits robotic arms and conveyor systems. The PA66 cage reduces friction, enhancing smooth operation in continuous-use scenarios.

Where Is NUP 220 ECP Bearing Used?
NUP 220 ECP Bearing finds its place in wind turbines, supporting the main shaft where high radial loads are common. Its open design allows for easy lubrication, extending service life in harsh conditions.

The bearing also works well in printing presses, where precision and stability are key. The combined load capacity ensures consistent performance even during high-speed operations.

Built for Heavy-Duty Use: NUP 220 ECP Bearing
NUP 220 ECP Bearing is ideal for construction equipment like cranes and excavators, handling heavy loads with ease. The robust chrome steel rollers withstand intense pressure and shock loads.

In agricultural machinery, this bearing supports PTO shafts and harvesters, where its resistance to wear and tear is crucial. The wide temperature range (-30° to 110°C) ensures reliability in varying climates.

Automotive vs Aerospace: Applications of NUP 220 ECP Bearing
In automotive systems, NUP 220 ECP Bearing is often found in differentials and drivetrains, offering balanced performance. Its compatibility with grease and oil lubrication adds to its versatility.

For aerospace ground equipment, this bearing is used in landing gear mechanisms and hydraulic pumps. The high dynamic radial load capacity (64125 lbf) ensures safety and efficiency in critical operations.
