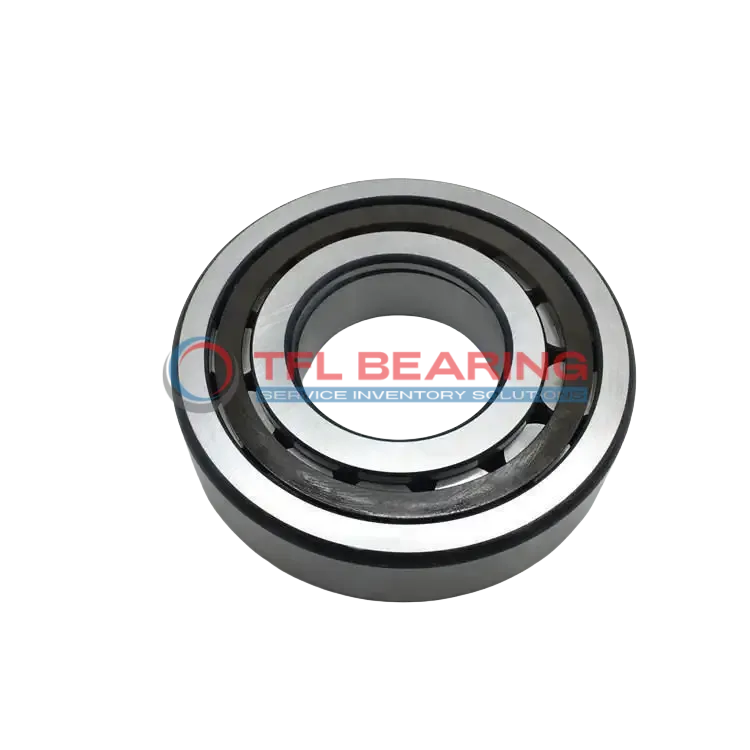

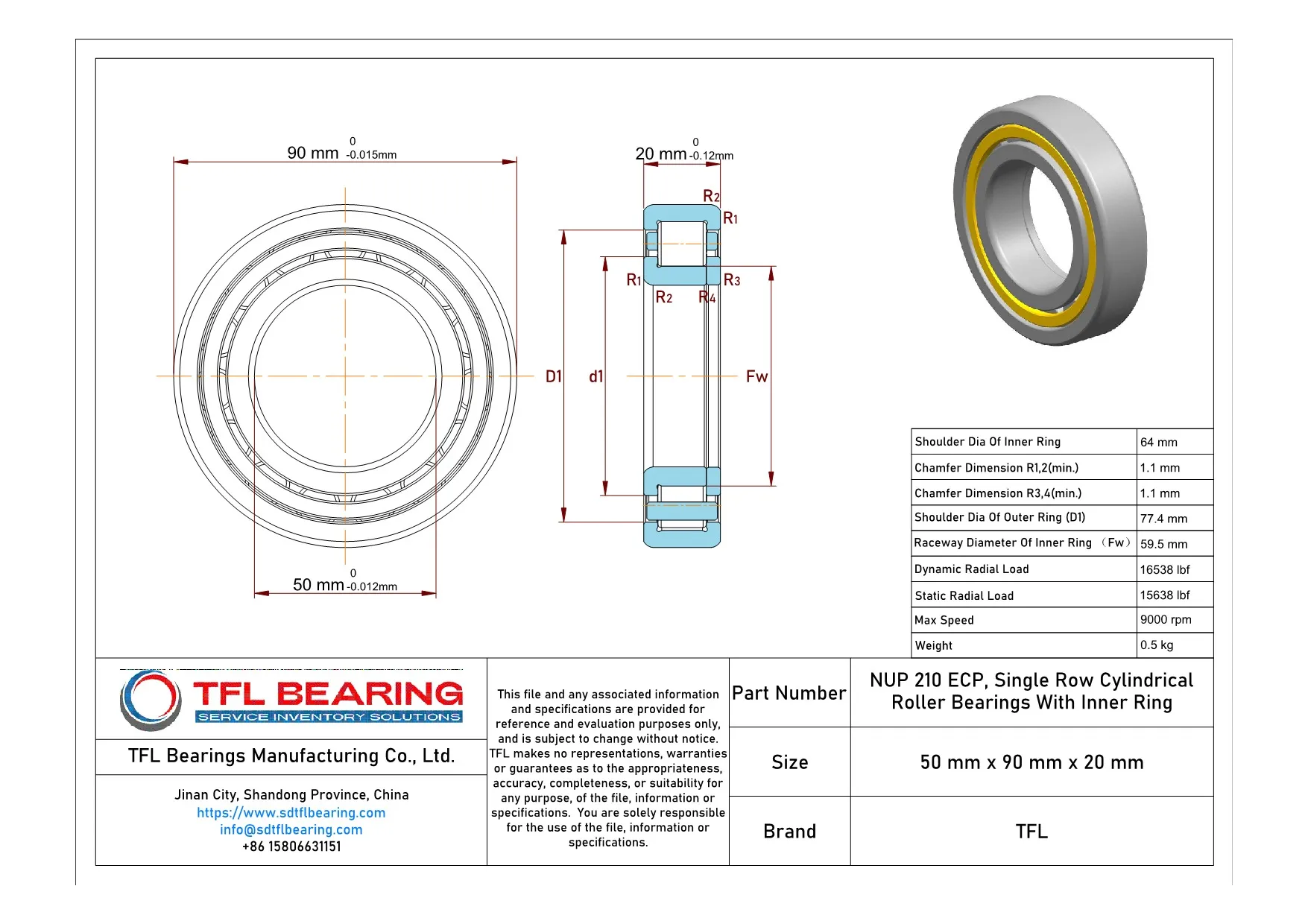

The NUP 210 ECP is a single row cylindrical roller bearing with a 50mm bore and 90mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 16538 lbf and reaches speeds of 9000 RPM.
Its open design allows for easy lubrication with grease or oil, while the PA66 cage ensures smooth operation. The bearing performs reliably in temperatures from -30°C to 110°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for machinery requiring high radial and axial load capacity, such as gearboxes or pumps.
Weighing 0.5kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.
"*" indicates required fields
Performance Features of NUP 210 ECP Bearing
NUP 210 ECP Bearing is crafted with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 16538 lbf, making it suitable for demanding industrial applications.
The PA66 cage keeps the rollers centred, ensuring smooth operation and reduced wear.
With a maximum speed of 9000 rpm, it delivers both durability and high-speed efficiency.
NUP 210 ECP Bearing operates in temperatures from -30° to 110°C, adapting to various working conditions.
Its open design allows for easy lubrication with grease or oil, simplifying maintenance.
Key Fields for NUP 210 ECP Bearing
NUP 210 ECP Bearing is commonly used in industrial machinery, especially in gearboxes and electric motors where combined loads are present. Its chrome steel construction ensures durability and reliable performance in demanding conditions.
In automotive applications, NUP 210 ECP Bearing fits well in transmission systems and wheel hubs. The open design and high-speed capability make it suitable for both passenger and commercial vehicles.
For automation equipment, NUP 210 ECP Bearing provides smooth operation in robotic arms and conveyor systems. The PA66 cage helps reduce friction, enhancing efficiency in repetitive tasks.
Medical devices like diagnostic machines benefit from NUP 210 ECP Bearing’s precision and stability. The temperature range allows it to perform consistently in various clinical environments.
In household appliances such as washing machines, NUP 210 ECP Bearing handles moderate loads with ease. Its metric sizing ensures compatibility with a wide range of consumer products.
