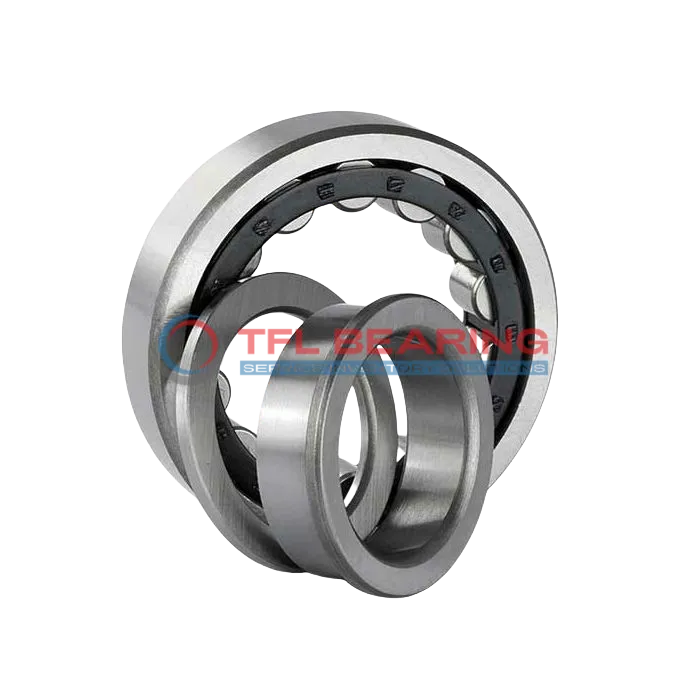

The NUP 206 ECP is a single row cylindrical roller bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 9900 lbf and spins smoothly at speeds up to 14000 RPM.
Its open design allows easy lubrication with grease or oil, while the PA66 cage ensures durability and centred roller alignment. The bearing operates well in temperatures from -30°C to 110°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like gearboxes or electric motors where combined radial and axial loads are present.
Weighing just 0.21kg, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe use.
The inner ring design with a 41.2mm shoulder diameter provides added stability. The 1mm chamfer dimension ensures easy installation, reducing the risk of damage during fitting.
Suitable for industrial machinery or automotive applications, this bearing offers reliable performance under demanding conditions. Its chrome steel rollers and rings ensure long service life even in high-speed environments.
"*" indicates required fields
Performance Features of NUP 206 ECP Bearing
NUP 206 ECP Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 9900 lbf, ensuring reliable performance in various applications.
The PA66 cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 14,000 rpm, it balances durability and efficiency.
NUP 206 ECP Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.
Industrial Uses of NUP 206 ECP Bearing
NUP 206 ECP Bearing is commonly used in machine tools, where its cylindrical roller design handles both radial and axial loads efficiently. The chrome steel construction ensures durability in high-speed operations.
In automotive applications, NUP 206 ECP Bearing fits well in gearboxes and transmissions, providing reliable performance under combined loads. Its metric sizing makes it a versatile choice for various vehicle models.
For automation systems, NUP 206 ECP Bearing supports robotic arms and conveyor belts, thanks to its high-speed capability and low maintenance needs. The PA66 cage reduces friction, enhancing smooth movement.
In household appliances like washing machines, NUP 206 ECP Bearing offers quiet and long-lasting operation. The grease lubrication option makes it suitable for low-maintenance environments.
