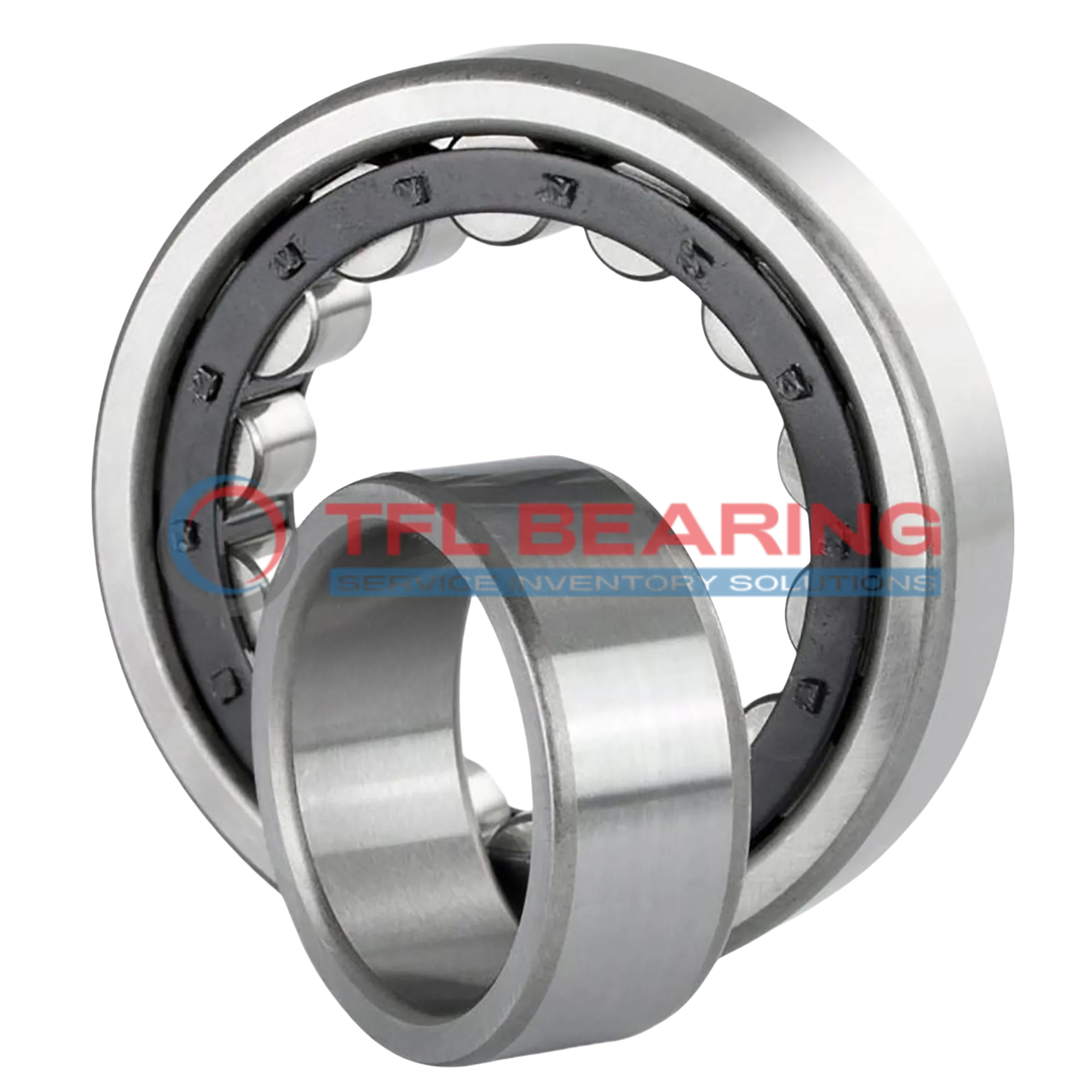

The NU 313 ECP is a single-row cylindrical roller bearing with a 65mm bore and 140mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 47700 lbf and operates smoothly at speeds up to 6000 RPM.
Its open design allows for easy lubrication with grease or oil, while the PA66 cage ensures durability and centred roller alignment. The bearing performs reliably in temperatures ranging from -30°C to 110°C.
With a chamfer dimension of 2.1mm and a permissible axial displacement of 2.2mm, it offers flexibility in installation. This model is interchangeable with SKF bearings, making it a practical choice for replacements.
Ideal for industrial machinery or heavy-duty equipment where radial and axial loads are present. Weighing 2.2kg, it balances strength and manageability for its size. Compliant with RoHS and REACH standards for safe use.
"*" indicates required fields
Performance Features of NU 313 ECP Bearing
NU 313 ECP Bearing is crafted with chrome steel rings and rollers, ensuring strong resistance to combined loads.
Its dynamic radial load capacity reaches 47,700 lbf, making it suitable for demanding industrial applications.
The PA66 cage keeps the rollers centred, reducing friction and enhancing durability.
With a maximum speed of 6,000 rpm, it offers reliable performance in various conditions.
How Does NU 313 ECP Bearing Reduce Friction?
NU 313 ECP Bearing features a PA66 cage that minimises friction between rollers, promoting smooth operation.
The chrome steel construction ensures long-lasting performance even under heavy radial loads.
Its design allows for permissible axial displacement up to 2.2 mm, accommodating slight misalignments.
This makes it a versatile choice for applications requiring both radial and axial load handling.
Engineered for Precision: NU 313 ECP Bearing
NU 313 ECP Bearing’s single-row cylindrical design provides precise load distribution across the rollers.
The chrome steel materials resist wear, maintaining accuracy over extended periods.
With a temperature range of -30° to 110°C, it performs reliably in varying environments.
Its open seal type allows for easy lubrication with grease or oil, ensuring consistent operation.
Why Choose NU 313 ECP Bearing for Precision Tasks?
NU 313 ECP Bearing’s high dynamic radial load capacity ensures stability in precision applications.
The precisely machined rollers and raceways reduce vibration and noise during operation.
Its 33 mm width and 65 mm bore provide a compact yet robust solution for machinery.
The bearing’s design simplifies installation, saving time and effort in assembly processes.
Structural Advantages of NU 313 ECP Bearing
NU 313 ECP Bearing’s inner ring design enhances load distribution, improving overall performance.
The chamfer dimensions of 2.1 mm facilitate easier mounting and dismounting.
Its static radial load capacity of 44,100 lbf ensures reliability in stationary applications.
The bearing’s construction allows it to handle both radial and limited axial loads efficiently.
Industrial Uses of NU 313 ECP Bearing
NU 313 ECP Bearing is commonly used in heavy machinery like conveyor systems and industrial gearboxes, where its cylindrical roller design handles high radial loads efficiently. The open seal type allows for easy lubrication, making it suitable for dusty or high-temperature environments.
What Makes NU 313 ECP Bearing a Preferred Choice?
In automotive applications, NU 313 ECP Bearing supports components like transmissions and differentials, thanks to its robust chrome steel construction. Its high-speed capability (up to 6000 rpm) ensures smooth performance in demanding conditions.
Perfect Fit for Automation: NU 313 ECP Bearing
NU 313 ECP Bearing works well in robotic arms and automated assembly lines, where precision and reliability are key. The PA66 cage reduces friction, enhancing its lifespan in continuous operation.
Medical vs Industrial: Where NU 313 ECP Bearing Excels
While NU 313 ECP Bearing isn’t typically used in medical devices, it shines in industrial settings like pumps and compressors. Its combined load capacity makes it versatile for various mechanical systems.
Essential Roles of NU 313 ECP Bearing
NU 313 ECP Bearing is a go-to for wind turbines and agricultural equipment, where durability under heavy loads is critical. The metric sizing ensures compatibility with a wide range of machinery across different regions.
