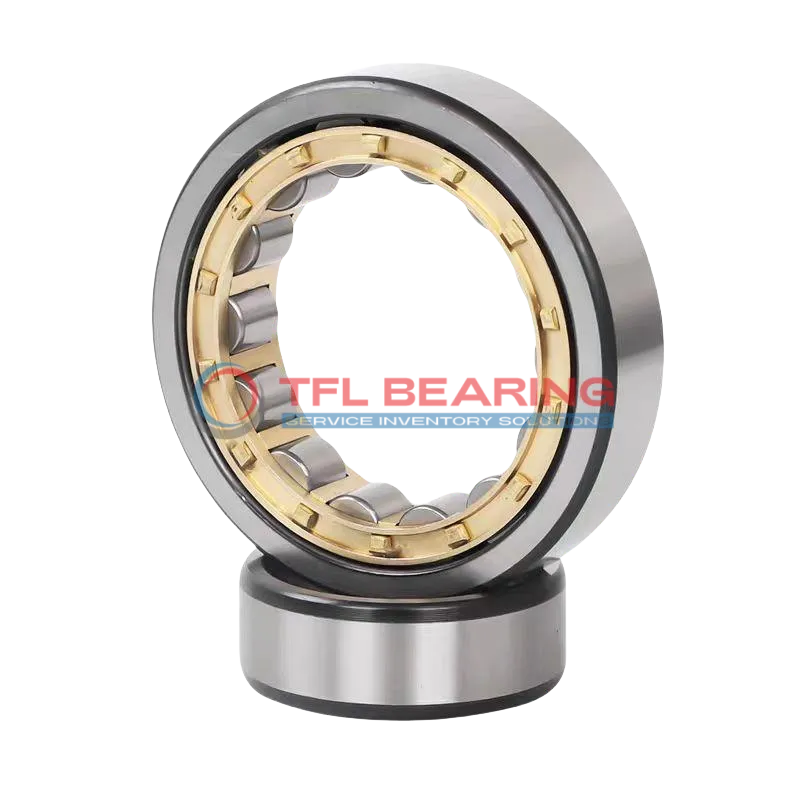

Single Row Cylindrical Roller Bearings With Inner Ring NU 2988 ECML
Single Row Cylindrical Roller Bearings With Inner Ring NU 2988 ECML

Single Row Cylindrical Roller Bearings With Inner Ring NU 2988 ECML

The NU 2988 ECML is a single row cylindrical roller bearing with a 440mm bore and 600mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 420,750 lbf and runs smoothly at speeds up to 2000 RPM.

Its brass cage design ensures durability, while the open structure allows easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy machinery or industrial equipment where high radial loads are common.

Weighing 81kg, it’s a robust component designed for long-term performance. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number NU 2988 ECML
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 440 mm
  • Bore Dia Tolerance -0.045mm to 0
  • Outer Dia 600 mm
  • Outer Dia Tolerance -0.05mm to 0
  • Width 95 mm
  • Width Tolerance -0.45mm to 0
  • Chamfer Dimension r1,2(min.) 4 mm
  • Permissible Axial Displacement(max.) 2.4 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, inner or outer ring centred
  • Dynamic Radial Load 420750 lbf
  • Static Radial Load 877500 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 2000 rpm
  • Weight 81 kg
  • Shoulder Dia Of Outer Ring 552 mm
  • Raceway Diameter Of Inner Ring 481.5 mm

Features

Performance Features of NU 2988 ECML Bearing

NU 2988 ECML Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 420,750 lbf, making it suitable for heavy-duty applications.

The brass cage ensures proper roller alignment, reducing friction and extending operational life.
With a maximum speed of 2,000 rpm, it delivers reliable performance in various industrial settings.

NU 2988 ECML Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, ensuring smooth operation.

The precise chamfer dimensions of 4 mm minimise stress concentrations, enhancing durability.
This bearing is interchangeable with SKF models, providing flexibility in replacement options.

Application

Industrial Uses of NU 2988 ECML Bearing
NU 2988 ECML Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its cylindrical roller design handles combined loads efficiently. The brass cage ensures smooth operation even at high speeds, making it a reliable choice for demanding environments.

Where Is NU 2988 ECML Bearing Used?
In automotive applications, NU 2988 ECML Bearing supports components like drivetrains and wheel hubs, thanks to its high dynamic radial load capacity. Its metric sizing and chrome steel construction make it compatible with a variety of heavy-duty vehicles.

Built for Heavy-Duty Use: NU 2988 ECML Bearing
NU 2988 ECML Bearing excels in wind turbine systems, where its ability to handle radial and axial loads is crucial. The open design allows for easy lubrication, extending its service life in harsh conditions.

Automotive vs Aerospace: Applications of NU 2988 ECML Bearing
In automotive settings, NU 2988 ECML Bearing is ideal for transmissions and axles, while in aerospace, it supports landing gear mechanisms. Its high static radial load capacity ensures reliability in both industries.

Essential Roles of NU 2988 ECML Bearing
NU 2988 ECML Bearing is a key component in mining equipment, where its durability and load-bearing capacity are vital. The grease or oil lubrication options provide flexibility for different operational needs.
