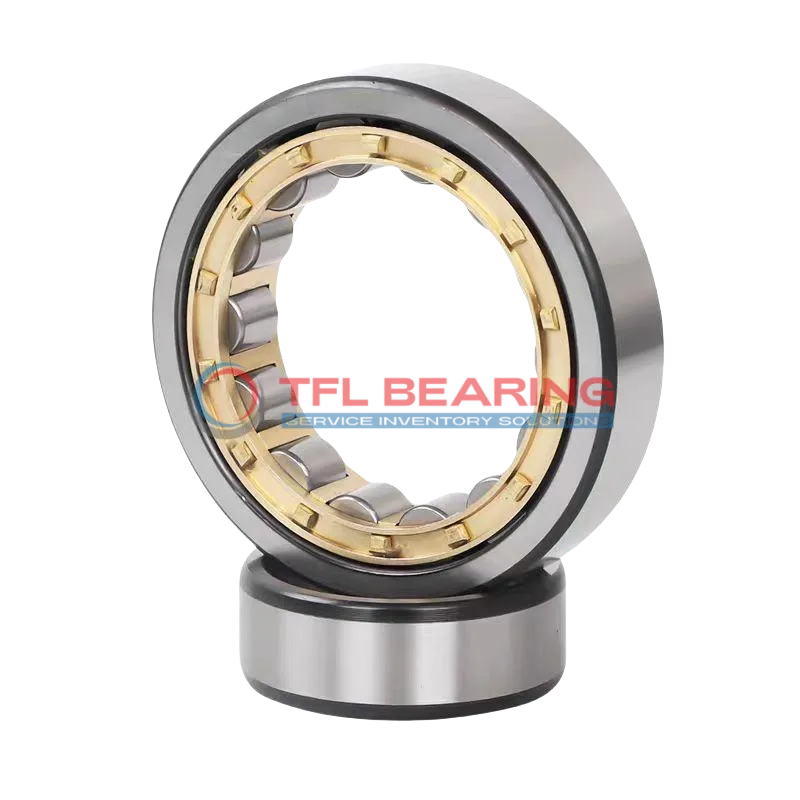

Single Row Cylindrical Roller Bearings With Inner Ring NU 2984 ECMA
Single Row Cylindrical Roller Bearings With Inner Ring NU 2984 ECMA

Single Row Cylindrical Roller Bearings With Inner Ring NU 2984 ECMA

The NU 2984 ECMA is a single row cylindrical roller bearing with a 420mm bore and 560mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 315,000 lbf and runs smoothly at speeds up to 2000 RPM.

Its brass cage and open design make it easy to maintain, while the chrome steel rollers ensure durability. The bearing operates well in temperatures from -30°C to 110°C.

With a weight of 60kg, this bearing is robust and suitable for heavy-duty applications. It’s interchangeable with SKF bearings, making it a reliable choice for replacements.

Ideal for industrial machinery or gear systems where high radial and axial loads are present. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number NU 2984 ECMA
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 420 mm
  • Bore Dia Tolerance -0.045mm to 0
  • Outer Dia 560 mm
  • Outer Dia Tolerance -0.05mm to 0
  • Width 82 mm
  • Width Tolerance -0.45mm to 0
  • Chamfer Dimension r1,2(min.) 4 mm
  • Permissible Axial Displacement(max.) 2.4 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, outer ring centred
  • Dynamic Radial Load 315000 lbf
  • Static Radial Load 641250 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 2000 rpm
  • Weight 60 kg
  • Shoulder Dia Of Outer Ring 512 mm
  • Raceway Diameter Of Inner Ring 449 mm

Features

Performance Features of NU 2984 ECMA Bearing

NU 2984 ECMA Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 315,000 lbf, ensuring reliable performance in heavy-duty applications.
The brass cage keeps the rollers aligned, reducing wear and extending service life.
With a maximum speed of 2,000 rpm, it balances durability and efficiency.

How Is NU 2984 ECMA Bearing Engineered for Reliability?

NU 2984 ECMA Bearing features a single-row cylindrical design, optimised for combined load handling.
The chrome steel construction ensures durability, even in demanding industrial environments.
Its open seal type allows for easy lubrication with grease or oil.
The bearing operates smoothly within a temperature range of -30° to 110°C.

Designed for Durability: NU 2984 ECMA Bearing

NU 2984 ECMA Bearing’s brass cage design minimises friction and wear during operation.
Its static radial load capacity of 641,250 lbf makes it suitable for high-load applications.
The bearing’s precise tolerances ensure consistent performance under various conditions.
With a weight of 60 kg, it is robust yet manageable for industrial use.

Application

Industrial Uses of NU 2984 ECMA Bearing
NU 2984 ECMA Bearing is commonly used in heavy industrial machinery, such as large conveyor systems and rolling mills, where its high load capacity is essential. The brass cage design helps reduce friction, making it suitable for continuous operation.

In wind turbine applications, NU 2984 ECMA Bearing handles both radial and axial loads efficiently, ensuring reliable performance in harsh conditions. Its chrome steel construction provides durability against wear and tear.

For mining equipment, NU 2984 ECMA Bearing’s robust design supports heavy loads in crushers and excavators. The open seal type allows for easy lubrication, extending the bearing’s service life.

NU 2984 ECMA Bearing is also found in paper manufacturing machines, where its precision helps maintain smooth operation. The metric sizing ensures compatibility with a wide range of industrial equipment.

In steel production plants, NU 2984 ECMA Bearing’s high-speed capability makes it ideal for rolling and finishing lines. The temperature range ensures performance stability even in extreme conditions.
