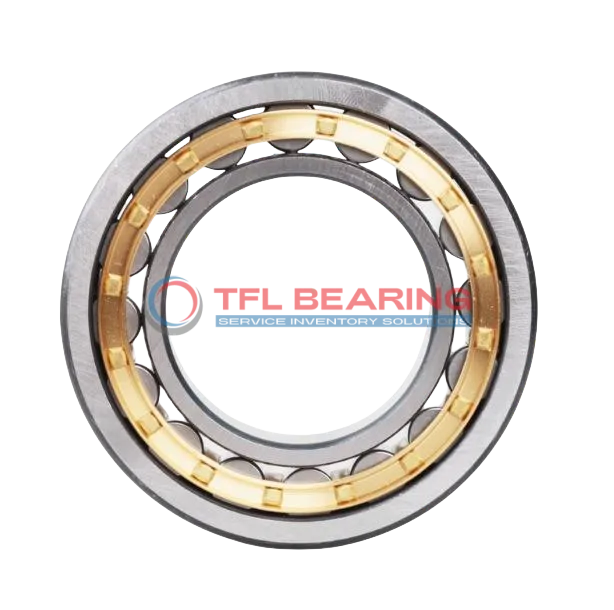

Single Row Cylindrical Roller Bearings With Inner Ring NU 2344 ECN1MA
Single Row Cylindrical Roller Bearings With Inner Ring NU 2344 ECN1MA

Single Row Cylindrical Roller Bearings With Inner Ring NU 2344 ECN1MA

The NU 2344 ECN1MA is a single row cylindrical roller bearing with a 220mm bore and 460mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 535500 lbf and runs smoothly at speeds up to 2000 RPM.

Its brass cage, centred on the outer ring, ensures durability and reduces friction. The open design allows easy lubrication with grease or oil, suitable for temperatures from -30°C to 110°C.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Ideal for heavy machinery or industrial equipment where high radial loads are common.

Weighing 124kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and reliable use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number NU 2344 ECN1MA
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 220 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 460 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 145 mm
  • Width Tolerance -0.30mm to 0
  • Chamfer Dimension r1,2(min.) 5 mm
  • Permissible Axial Displacement(max.) 10.4 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, outer ring centred
  • Dynamic Radial Load 535500 lbf
  • Static Radial Load 776250 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 2000 rpm
  • Weight 124 kg
  • Shoulder Dia Of Outer Ring 384 mm
  • Raceway Diameter Of Inner Ring 277 mm

Features

Performance Features of NU 2344 ECN1MA Bearing

NU 2344 ECN1MA Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 535,500 lbf, making it suitable for heavy-duty industrial applications.

The brass cage design ensures smooth operation and reduces friction, even at high speeds up to 2,000 rpm.
With a temperature range of -30° to 110°C, it performs reliably in various operating conditions.

NU 2344 ECN1MA Bearing’s open design allows for easy lubrication with grease or oil, extending maintenance intervals.
Its precise dimensions and tolerances ensure a perfect fit and long service life.

Application

Industrial Uses of NU 2344 ECN1MA Bearing
NU 2344 ECN1MA Bearing is commonly used in heavy machinery like rolling mills and large gearboxes, where its high radial load capacity ensures reliable performance. The brass cage design helps reduce friction, making it suitable for high-speed operations up to 2000 rpm.

In automotive applications, NU 2344 ECN1MA Bearing supports components such as truck transmissions and differential systems, handling combined loads with ease. Its chrome steel construction provides durability under demanding conditions.

For wind turbines, NU 2344 ECN1MA Bearing’s large size and grease lubrication make it ideal for rotor shaft support, ensuring smooth rotation even in harsh environments. The open seal design allows for easy maintenance in remote locations.

What Makes NU 2344 ECN1MA Bearing a Preferred Choice?
NU 2344 ECN1MA Bearing is often chosen for mining equipment due to its ability to withstand heavy radial loads and harsh conditions. The brass cage and chrome steel rollers enhance its longevity in abrasive environments.

In paper manufacturing machinery, NU 2344 ECN1MA Bearing’s high static radial load capacity ensures stability during continuous operation. Its metric sizing simplifies integration with European-designed systems.

Built for Heavy-Duty Use: NU 2344 ECN1MA Bearing
NU 2344 ECN1MA Bearing excels in construction equipment like cranes and excavators, where its combined load handling is essential. The wide temperature range allows it to perform reliably in varying climates.

For power generation plants, NU 2344 ECN1MA Bearing’s oil lubrication compatibility makes it suitable for turbines and generators. Its precise tolerances ensure consistent performance under high stress.
