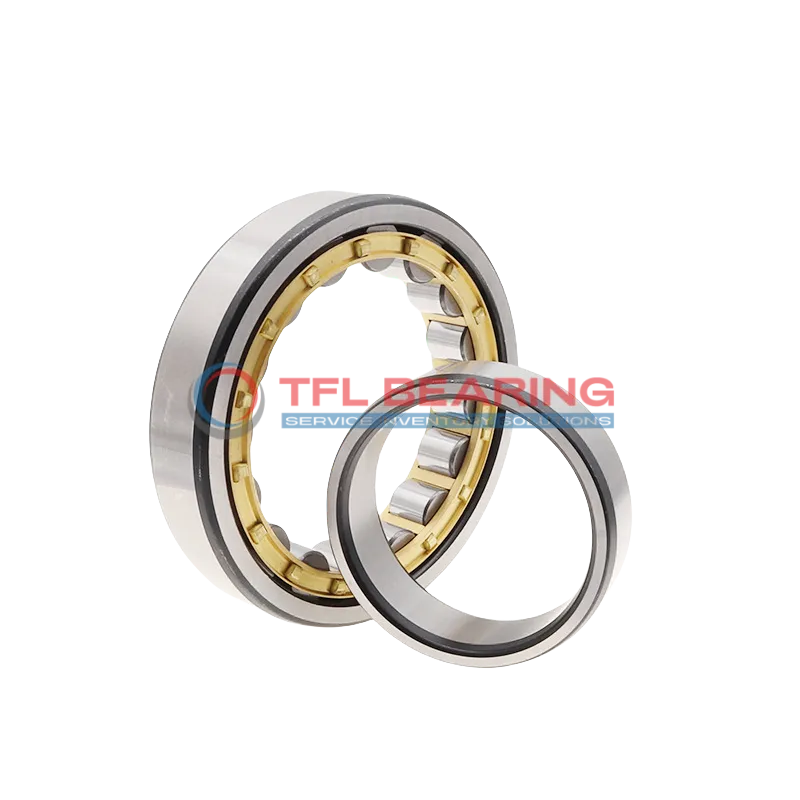

Single Row Cylindrical Roller Bearings With Inner Ring NU 2334 ECML
Single Row Cylindrical Roller Bearings With Inner Ring NU 2334 ECML

Single Row Cylindrical Roller Bearings With Inner Ring NU 2334 ECML

The NU 2334 ECML is a single-row cylindrical roller bearing with a 170mm bore and 360mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 326,250 lbf and runs smoothly at speeds up to 3000 RPM.

Its brass cage design ensures durability, while the open structure allows easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty machinery like gearboxes or industrial equipment where high radial loads are common.

Weighing 60.5kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and reliable use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number NU 2334 ECML
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 170 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 360 mm
  • Outer Dia Tolerance -0.04mm to 0
  • Width 120 mm
  • Width Tolerance -0.25mm to 0
  • Chamfer Dimension r1,2(min.) 4 mm
  • Chamfer Dimension r3,4(min.) 4 mm
  • Permissible Axial Displacement(max.) 10 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, inner or outer ring centred
  • Dynamic Radial Load 326250 lbf
  • Static Radial Load 459000 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 3000 rpm
  • Weight 60.5 kg
  • Shoulder Dia Of Outer Ring 300.2 mm
  • Raceway Diameter Of Inner Ring 216 mm

Features

Performance Features of NU 2334 ECML Bearing

NU 2334 ECML Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 326,250 lbf, making it suitable for heavy-duty applications.

The brass cage design ensures proper roller alignment, reducing friction and extending operational life.
With a maximum speed of 3,000 rpm, it delivers reliable performance in various industrial settings.

NU 2334 ECML Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, ensuring smooth operation.

Application

Industrial Uses of NU 2334 ECML Bearing
NU 2334 ECML Bearing is commonly used in heavy machinery like industrial gearboxes and large electric motors, where its cylindrical roller design handles high radial loads efficiently. The brass cage ensures smooth operation even at speeds up to 3000 rpm.

In automotive applications, NU 2334 ECML Bearing supports components such as truck transmissions and axle systems, thanks to its robust chrome steel construction. Its metric dimensions make it a reliable choice for European and Asian vehicle manufacturers.

For wind turbines, NU 2334 ECML Bearing’s ability to withstand combined loads makes it ideal for rotor shaft applications. The open seal design allows for easy lubrication, extending service life in harsh environments.

Where Is NU 2334 ECML Bearing Used?
NU 2334 ECML Bearing finds its place in mining equipment, particularly in conveyor systems and crushers, where durability is key. Its high static radial load capacity ensures reliable performance under extreme conditions.

In paper manufacturing machinery, NU 2334 ECML Bearing’s precision engineering helps maintain consistent operation in rollers and dryers. The grease or oil lubrication options provide flexibility for different operational needs.

Built for Heavy-Duty Use: NU 2334 ECML Bearing
NU 2334 ECML Bearing is a go-to choice for construction equipment like cranes and excavators, where its 120 mm width offers stability. The chrome steel rollers resist wear, even under constant heavy loads.

For marine applications, NU 2334 ECML Bearing’s corrosion-resistant materials make it suitable for propeller shafts and winches. Its temperature range of -30° to 110°C ensures performance in varying climates.

Automotive vs Aerospace: Applications of NU 2334 ECML Bearing
In automotive settings, NU 2334 ECML Bearing is often found in heavy-duty truck differentials, handling high torque demands. Its brass cage reduces friction, enhancing longevity.

For aerospace ground equipment, NU 2334 ECML Bearing supports landing gear testing rigs, where precision and reliability are critical. The 360 mm outer diameter provides ample load-bearing surface.
