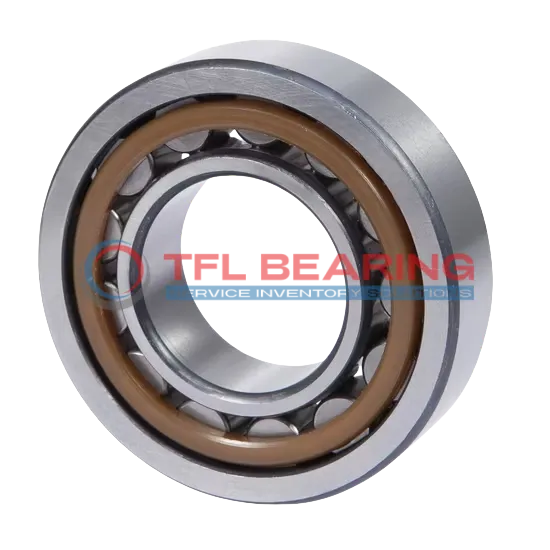

Single Row Cylindrical Roller Bearings With Inner Ring NU 2322 ECP
Single Row Cylindrical Roller Bearings With Inner Ring NU 2322 ECP

Single Row Cylindrical Roller Bearings With Inner Ring NU 2322 ECP

The NU 2322 ECP is a single-row cylindrical roller bearing with a 110mm bore and 240mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 175500 lbf and runs smoothly at speeds up to 3000 RPM.

Its open design allows easy lubrication with grease or oil, while the PA66 cage ensures durability. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or large machinery where radial and axial loads are present.

Weighing 16.9kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number NU 2322 ECP
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 240 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 80 mm
  • Width Tolerance -0.20mm to 0
  • Chamfer Dimension r1,2(min.) 3 mm
  • Chamfer Dimension r3,4(min.) 3 mm
  • Permissible Axial Displacement(max.) 7.5 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PA66 cage, roller centred
  • Dynamic Radial Load 175500 lbf
  • Static Radial Load 202500 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 3000 rpm
  • Weight 16.9 kg
  • Shoulder Dia Of Outer Ring 200.05 mm
  • Raceway Diameter Of Inner Ring 143 mm

Features

Performance Features of NU 2322 ECP Bearing

NU 2322 ECP Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 175500 lbf, ensuring reliable performance in heavy-duty applications.

The PA66 cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 3000 rpm, it balances durability and efficiency in demanding conditions.

NU 2322 ECP Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with either grease or oil, reducing maintenance needs.

The precise chamfer dimensions of 3 mm ensure easy installation and alignment.
This bearing is ideal for applications requiring high radial load capacity and long service life.

Application

Industrial Uses of NU 2322 ECP Bearing
NU 2322 ECP Bearing is commonly used in heavy machinery like industrial gearboxes and large electric motors, where its cylindrical roller design handles high radial loads efficiently. The open seal type allows for easy lubrication, making it suitable for continuous operation in demanding environments.

Where Is NU 2322 ECP Bearing Used?
In automotive applications, NU 2322 ECP Bearing supports components such as drivetrains and wheel hubs, thanks to its robust chrome steel construction. Its metric sizing ensures compatibility with a variety of vehicle designs, from trucks to agricultural machinery.

Built for Heavy-Duty Use: NU 2322 ECP Bearing
NU 2322 ECP Bearing excels in conveyor systems and mining equipment, where its high dynamic radial load capacity ensures reliable performance. The PA66 cage provides durability while reducing friction, ideal for high-speed operations up to 3000 rpm.

Automotive vs Aerospace: Applications of NU 2322 ECP Bearing
NU 2322 ECP Bearing is versatile enough for both automotive drivetrains and aerospace landing gear systems, offering consistent performance under combined loads. Its temperature range of -30° to 110°C makes it adaptable to various operating conditions.

Perfect Fit for Automation: NU 2322 ECP Bearing
NU 2322 ECP Bearing is a reliable choice for robotic arms and automated production lines, where precision and load capacity are critical. The chrome steel rollers and rings ensure long service life even in high-cycle applications.
