Single Row Cylindrical Roller Bearings With Inner Ring NU 2264 ECML
Single Row Cylindrical Roller Bearings With Inner Ring NU 2264 ECML

Single Row Cylindrical Roller Bearings With Inner Ring NU 2264 ECML

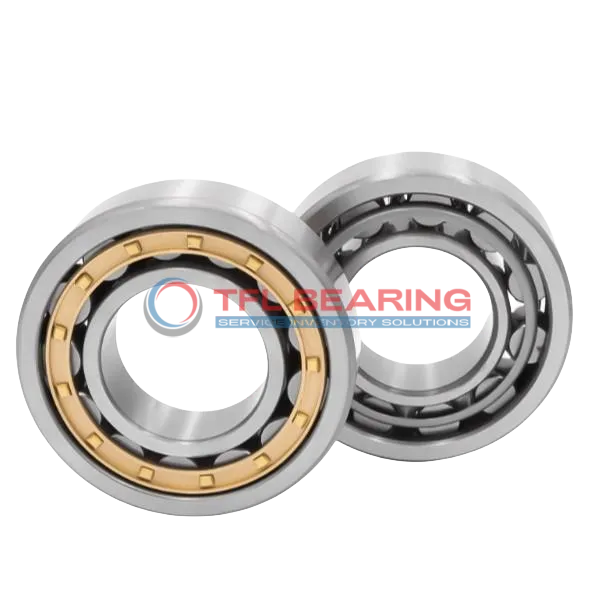

The NU 2264 ECML is a single-row cylindrical roller bearing with a 320mm bore and 580mm outer diameter, built from sturdy chrome steel. It handles combined loads, supporting up to 717750 lbf dynamically and 1125000 lbf statically.

Its brass cage ensures smooth operation at speeds up to 2000 RPM, while the open design allows easy lubrication with grease or oil. The bearing works reliably in temperatures from -30°C to 110°C.

With a 150mm width and 5mm chamfer, it fits well in heavy-duty setups. The inner ring design provides stability under high radial loads.

Ideal for industrial machinery like gearboxes or large motors, this bearing is interchangeable with SKF models. Compliant with RoHS and REACH standards, it’s a robust choice for demanding applications. Weighing 176kg, it’s built for durability.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number NU 2264 ECML
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 320 mm
  • Bore Dia Tolerance -0.04mm to 0
  • Outer Dia 580 mm
  • Outer Dia Tolerance -0.05mm to 0
  • Width 150 mm
  • Width Tolerance -0.40mm to 0
  • Chamfer Dimension r1,2(min.) 5 mm
  • Permissible Axial Displacement(max.) 5 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, inner or outer ring centred
  • Dynamic Radial Load 717750 lbf
  • Static Radial Load 1125000 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 2000 rpm
  • Weight 176 kg
  • Shoulder Dia Of Outer Ring 506 mm
  • Raceway Diameter Of Inner Ring 380 mm

Features

Performance Features of NU 2264 ECML Bearing

NU 2264 ECML Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 717,750 lbf, ensuring reliable performance in heavy-duty applications.

The brass cage design helps maintain roller alignment, reducing friction and extending operational life.
With a maximum speed of 2,000 rpm, it balances durability and efficiency for industrial use.

NU 2264 ECML Bearing operates smoothly in temperatures from -30° to 110°C, suitable for varied environments.
Its open design allows for easy lubrication with grease or oil, minimising maintenance needs.

Application

Industrial Uses of NU 2264 ECML Bearing
NU 2264 ECML Bearing is commonly used in heavy machinery like industrial gearboxes and large electric motors, where its cylindrical roller design handles high radial loads efficiently. The brass cage ensures smooth operation even at speeds up to 2000 rpm.

Where Is NU 2264 ECML Bearing Used?
You’ll often find NU 2264 ECML Bearing in wind turbines and mining equipment, thanks to its robust chrome steel construction. Its open design allows for easy lubrication, making it ideal for harsh environments.

Built for Heavy-Duty Use: NU 2264 ECML Bearing
NU 2264 ECML Bearing excels in applications like steel mills and paper processing plants, where combined loads are common. The metric dimensions ensure compatibility with a wide range of industrial equipment.

Automotive vs Aerospace: Applications of NU 2264 ECML Bearing
In automotive settings, NU 2264 ECML Bearing supports large drivetrain components, while in aerospace, it’s used in auxiliary systems. Its temperature range of -30° to 110°C makes it versatile for various climates.

Perfect Fit for Automation: NU 2264 ECML Bearing
NU 2264 ECML Bearing is a reliable choice for automated production lines, particularly in robotic arms and conveyor systems. The high dynamic radial load capacity ensures long service life under continuous use.
