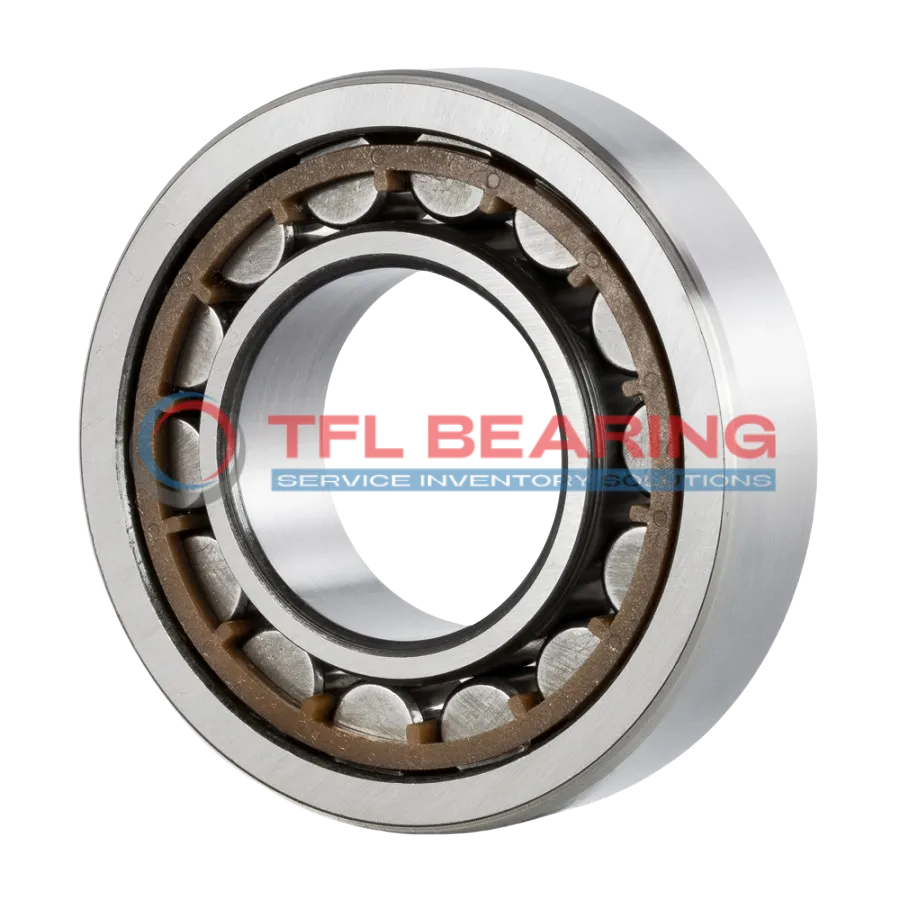

Single Row Cylindrical Roller Bearings With Inner Ring NU 218 ECP
Single Row Cylindrical Roller Bearings With Inner Ring NU 218 ECP

Single Row Cylindrical Roller Bearings With Inner Ring NU 218 ECP

The NU 218 ECP is a single row cylindrical roller bearing with a 90mm bore and 160mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 46800 lbf and operates smoothly at speeds up to 5000 RPM.

Its open design allows for easy lubrication with grease or oil, while the PA66 cage ensures reliable performance. The bearing works well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like industrial machinery or gearboxes where radial and axial loads are present.

Weighing 2.28kg, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number NU 218 ECP
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 160 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 30 mm
  • Width Tolerance -0.20mm to 0
  • Chamfer Dimension r1,2(min.) 2 mm
  • Chamfer Dimension r3,4(min.) 2 mm
  • Permissible Axial Displacement(max.) 1.8 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PA66 cage, roller centred
  • Dynamic Radial Load 46800 lbf
  • Static Radial Load 49500 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5000 rpm
  • Weight 2.28 kg
  • Shoulder Dia Of Outer Ring 138.45 mm
  • Raceway Diameter Of Inner Ring 107 mm

Features

Performance Features of NU 218 ECP Bearing

NU 218 ECP Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 46,800 lbf, ensuring reliable performance in demanding conditions.

The PA66 cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 5,000 rpm, it balances durability and efficiency for various applications.

NU 218 ECP Bearing operates smoothly in temperatures from -30° to 110°C, making it versatile.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

Application

Industrial Uses of NU 218 ECP Bearing
NU 218 ECP Bearing is commonly used in heavy machinery like conveyor belts and industrial fans, where its cylindrical roller design handles radial loads efficiently. The chrome steel construction ensures durability in demanding environments.

In automotive applications, NU 218 ECP Bearing fits well in gearboxes and wheel hubs, providing reliable performance under combined loads. Its open design allows for easy lubrication, extending service life.

For automation systems, NU 218 ECP Bearing supports robotic arms and assembly lines, thanks to its high-speed capability and precise tolerances. The PA66 cage reduces friction, enhancing smooth operation.

Where Is NU 218 ECP Bearing Used?
NU 218 ECP Bearing finds its place in wind turbines, where its robust design withstands variable loads and harsh weather conditions. The metric sizing ensures compatibility with global standards.

In printing machinery, NU 218 ECP Bearing ensures consistent performance, handling high-speed rotations with minimal vibration. The grease or oil lubrication options make it versatile for different operating conditions.

Perfect Fit for Automation: NU 218 ECP Bearing
NU 218 ECP Bearing is ideal for CNC machines, offering precise movement and load distribution. Its single-row design simplifies installation and maintenance.

In agricultural equipment, NU 218 ECP Bearing handles heavy loads in tractors and harvesters. The temperature range of -30° to 110°C ensures reliability in various climates.

Automotive vs Aerospace: Applications of NU 218 ECP Bearing
In automotive systems, NU 218 ECP Bearing supports transmissions and differentials, where its combined load capacity is crucial. The high-speed rating up to 5000 rpm meets performance demands.

For aerospace components, NU 218 ECP Bearing’s precision and lightweight design make it suitable for auxiliary systems. The chrome steel material provides the necessary strength for critical applications.
