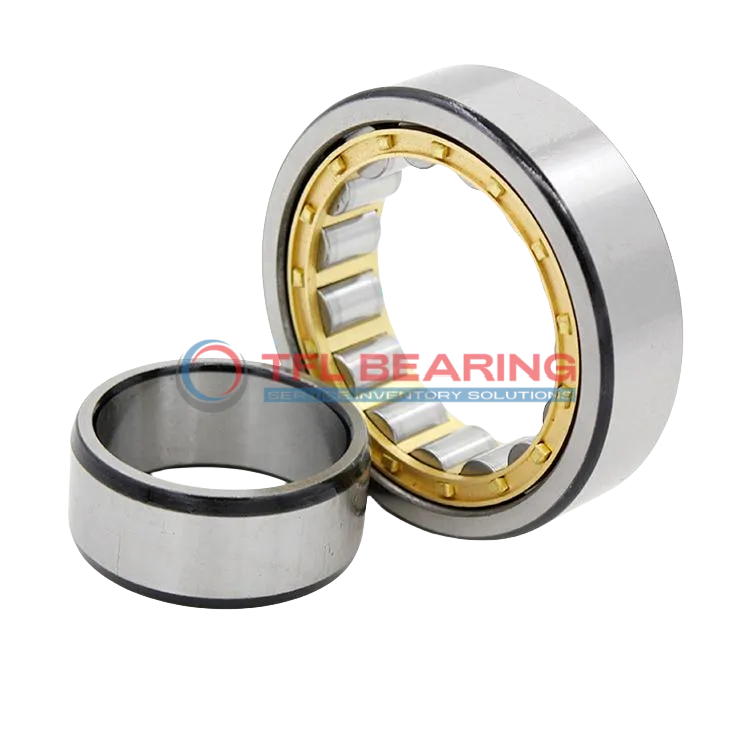

The NU 210 ECM is a single row cylindrical roller bearing with a 50mm bore and 90mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 16538 lbf and spins smoothly at speeds up to 9000 RPM.
Its brass cage keeps rollers centred for stable performance, while the open design allows easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.
With a width of just 20mm, it’s compact yet robust for its size. The chamfered edges (1.1mm) ensure easier installation and alignment.
Ideal for industrial machinery or gearboxes where radial and axial loads are present. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements, especially as it’s interchangeable with SKF bearings. Weighs 0.55kg.
"*" indicates required fields
Performance Features of NU 210 ECM Bearing
NU 210 ECM Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 16538 lbf, ensuring reliable performance in demanding conditions.
The brass cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 9000 rpm, it balances durability and efficiency for high-speed applications.
NU 210 ECM Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.
The precise chamfer dimensions of 1.1 mm ensure easy installation and alignment.
This bearing is ideal for applications requiring high radial load capacity and speed.
Industrial Uses of NU 210 ECM Bearing
NU 210 ECM Bearing is commonly used in industrial machinery like gearboxes and pumps, where its cylindrical roller design handles combined loads efficiently. The brass cage ensures smooth operation even at high speeds up to 9000 rpm.
What Makes NU 210 ECM Bearing a Preferred Choice?
In automotive applications, NU 210 ECM Bearing fits well in transmissions and differentials, thanks to its robust chrome steel construction. Its metric sizing makes it a versatile option for various vehicle designs.
Perfect Fit for Automation: NU 210 ECM Bearing
For automation systems, NU 210 ECM Bearing works reliably in robotic arms and conveyor belts, where precision and durability are key. The open seal design allows for easy lubrication, extending its service life.
Medical vs Industrial: Where NU 210 ECM Bearing Excels
NU 210 ECM Bearing is ideal for industrial equipment like compressors, but it also meets the demands of medical devices requiring consistent performance. Its temperature range of -30° to 110°C ensures reliability in diverse environments.
