Single Row Cylindrical Roller Bearings With Inner Ring NU 1884 MP
Single Row Cylindrical Roller Bearings With Inner Ring NU 1884 MP

Single Row Cylindrical Roller Bearings With Inner Ring NU 1884 MP

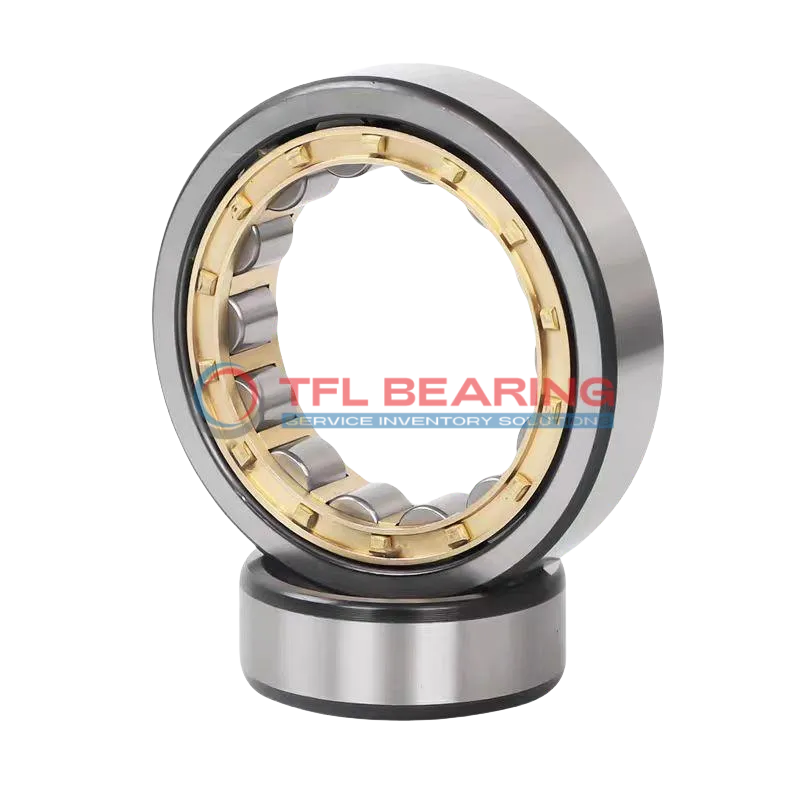

The NU 1884 MP is a single row cylindrical roller bearing with a 420mm bore and 520mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 128700 lbf and operates smoothly at speeds up to 2000 RPM.

Its open design allows for easy lubrication with grease or oil, while the PA66 cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or large gearboxes where radial and axial loads are present.

Weighing 22kg, it’s built for robust performance. Compliant with RoHS and REACH standards for safe and eco-friendly use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number NU 1884 MP
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 420 mm
  • Bore Dia Tolerance -0.045mm to 0
  • Outer Dia 520 mm
  • Outer Dia Tolerance -0.05mm to 0
  • Width 46 mm
  • Width Tolerance -0.45mm to 0
  • Chamfer Dimension r1,2(min.) 2.1 mm
  • Permissible Axial Displacement(max.) 3.3 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PA66 cage, roller centred
  • Dynamic Radial Load 128700 lbf
  • Static Radial Load 270000 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 2000 rpm
  • Weight 22 kg
  • Shoulder Dia Of Outer Ring 488 mm
  • Raceway Diameter Of Inner Ring 447 mm

Features

Performance Features of NU 1884 MP Bearing

NU 1884 MP Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 128,700 lbf, ensuring reliable performance in heavy-duty applications.
The PA66 cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 2,000 rpm, it balances durability and efficiency in demanding conditions.

How Is NU 1884 MP Bearing Engineered for Reliability?

NU 1884 MP Bearing features a single-row cylindrical design, ideal for handling combined loads with precision.
The chrome steel construction provides excellent wear resistance, even under high stress.
Its open seal type allows for easy lubrication with grease or oil, enhancing operational flexibility.
The bearing operates smoothly within a temperature range of -30° to 110°C, ensuring consistent performance.

Designed for Durability: NU 1884 MP Bearing

NU 1884 MP Bearing’s robust chrome steel rollers and rings ensure long-lasting performance.
The precise chamfer dimensions of 2.1 mm minimise stress concentrations, reducing wear.
With a static radial load capacity of 270,000 lbf, it excels in high-load applications.
Its lightweight PA66 cage contributes to smoother operation and lower maintenance needs.

Steel vs Ceramic Bearings: Strengths of NU 1884 MP Bearing

NU 1884 MP Bearing uses chrome steel for both rings and rollers, offering superior strength and durability.
This material choice ensures reliable performance under heavy loads and high speeds.
The bearing’s design allows for permissible axial displacement of up to 3.3 mm, accommodating slight misalignments.
Its compatibility with both grease and oil lubrication makes it versatile for various industrial applications.

Application

Industrial Uses of NU 1884 MP Bearing
NU 1884 MP Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its high radial load capacity ensures reliable performance. The chrome steel construction provides durability in demanding environments.

What Makes NU 1884 MP Bearing a Preferred Choice?
In wind turbine applications, NU 1884 MP Bearing handles combined loads efficiently, thanks to its single-row cylindrical roller design. The PA66 cage ensures smooth operation even at high speeds.

Built for Heavy-Duty Use: NU 1884 MP Bearing
This bearing excels in steel mill equipment, where its 420 mm bore and 520 mm outer diameter accommodate substantial loads. The open seal design allows for easy lubrication maintenance.

Automotive vs Aerospace: Applications of NU 1884 MP Bearing
In automotive testing rigs, NU 1884 MP Bearing supports high radial loads, while its temperature range makes it suitable for aerospace ground equipment. The metric sizing ensures compatibility with global standards.

Perfect Fit for Automation: NU 1884 MP Bearing
NU 1884 MP Bearing is ideal for robotic assembly lines, where its precision and load capacity enhance performance. The grease or oil lubrication options provide flexibility for different operating conditions.
