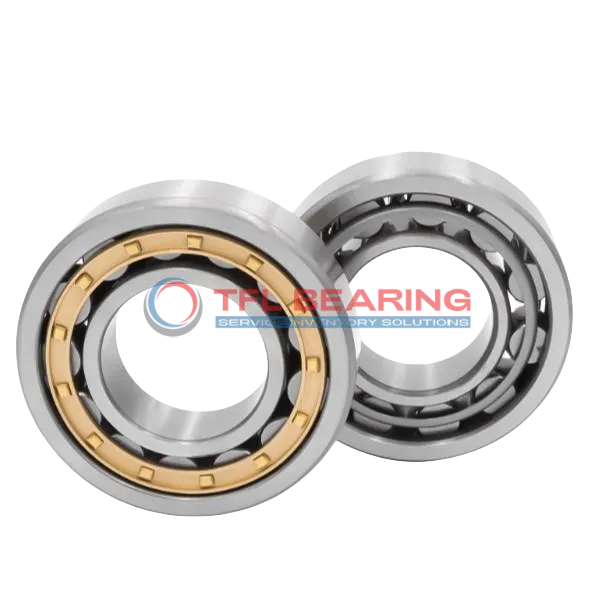

The NU 1056 ML is a single row cylindrical roller bearing with a 280mm bore and 420mm outer diameter, built from tough chrome steel. It handles combined loads up to 172125 lbf and runs smoothly at speeds up to 3000 RPM.
Its brass cage design ensures durability, while the open seal allows for easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy machinery or industrial equipment where radial and axial loads are present.
Weighing 31kg, it’s robust and built to last. Compliant with RoHS and REACH standards for safe and reliable use.
"*" indicates required fields
Performance Features of NU 1056 ML Bearing
NU 1056 ML Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 172125 lbf, ensuring reliable performance in heavy-duty applications.
The brass cage keeps the rollers aligned, reducing wear and extending service life.
With a maximum speed of 3000 rpm, it balances durability and efficiency.
How Is NU 1056 ML Bearing Engineered for Reliability?
NU 1056 ML Bearing features a single-row cylindrical design, optimised for combined load handling.
The chrome steel construction provides excellent resistance to wear and fatigue.
Its open seal type allows for easy lubrication with grease or oil.
The bearing operates smoothly within a temperature range of -30° to 110°C.
Designed for Durability: NU 1056 ML Bearing
NU 1056 ML Bearing’s brass cage ensures stable roller alignment, minimising friction and noise.
The bearing’s large chamfer dimensions (4 mm) facilitate easier installation and handling.
With a static radial load capacity of 238500 lbf, it excels in demanding industrial environments.
Its wide temperature range makes it suitable for various operating conditions.
Steel vs Ceramic Bearings: Strengths of NU 1056 ML Bearing
NU 1056 ML Bearing uses high-quality chrome steel for both rings and rollers, ensuring long-lasting performance.
The brass cage design enhances stability and reduces maintenance needs.
With a permissible axial displacement of 8 mm, it accommodates slight misalignments.
Its robust construction makes it a reliable choice for heavy machinery applications.
Key Fields for NU 1056 ML Bearing
NU 1056 ML Bearing is commonly used in heavy industrial machinery, such as large gearboxes and rolling mills, where its cylindrical roller design handles high radial loads efficiently. The brass cage ensures smooth operation even at high speeds.
In wind turbine applications, NU 1056 ML Bearing supports the main shaft, providing reliable performance under varying wind conditions. Its chrome steel construction offers excellent durability in harsh outdoor environments.
For mining equipment, NU 1056 ML Bearing is ideal for conveyor systems and crushers, where its combined load capacity and robust design reduce downtime. The open seal type allows for easy lubrication maintenance.
In paper manufacturing machinery, NU 1056 ML Bearing ensures smooth operation in rollers and dryers, where precision and reliability are essential. The metric sizing makes it compatible with a wide range of industrial equipment.
NU 1056 ML Bearing is also found in steel production lines, particularly in rolling stands, where its high dynamic radial load capacity ensures long service life. The temperature range suits both hot and cold working conditions.
