Single Row Cylindrical Roller Bearings With Inner Ring NU 1028 ML
Single Row Cylindrical Roller Bearings With Inner Ring NU 1028 ML

Single Row Cylindrical Roller Bearings With Inner Ring NU 1028 ML

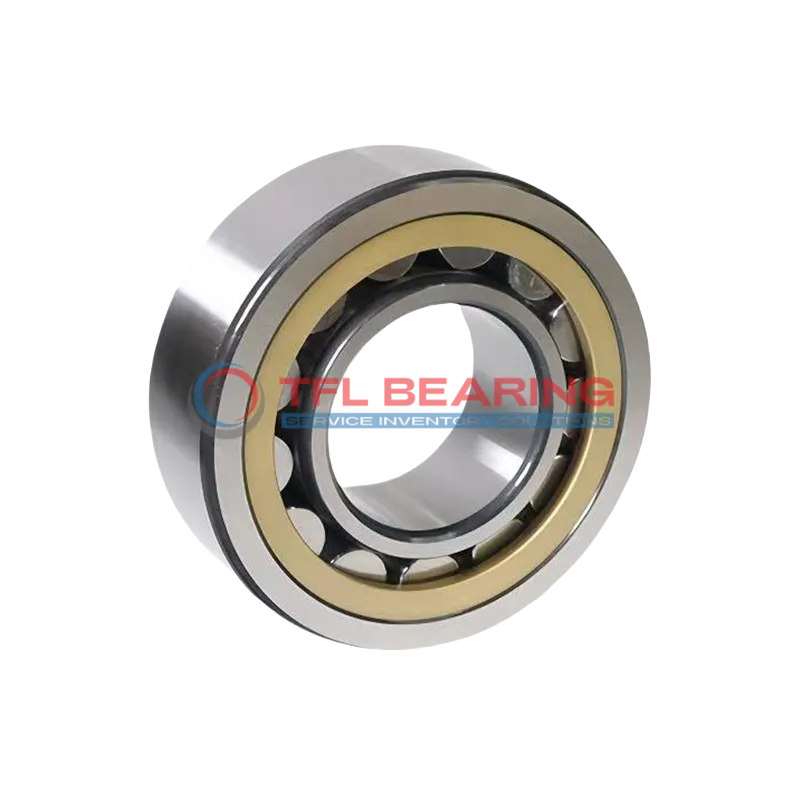

The NU 1028 ML is a single-row cylindrical roller bearing with a 140mm bore and 210mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 45900 lbf and operates smoothly at speeds up to 5000 RPM.

Its brass cage design ensures reliable performance, while the open seal allows for easy lubrication with grease or oil. The bearing works well in temperatures ranging from -30°C to 110°C.

With a width of 33mm and a weight of 4.07kg, it’s a sturdy yet manageable choice for heavy-duty applications. Compliant with RoHS and REACH standards, it’s a safe and dependable option.

Ideal for industrial machinery or gear systems where combined loads and high speeds are common. Its interchangeable design with SKF bearings makes it a practical replacement choice.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number NU 1028 ML
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 140 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 210 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 33 mm
  • Width Tolerance -0.25mm to 0
  • Chamfer Dimension r1,2(min.) 2 mm
  • Chamfer Dimension r3,4(min.) 1.1 mm
  • Permissible Axial Displacement(max.) 4.4 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, inner or outer ring centred
  • Dynamic Radial Load 45900 lbf
  • Static Radial Load 57375 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5000 rpm
  • Weight 4.07 kg
  • Shoulder Dia Of Outer Ring 184.2 mm
  • Raceway Diameter Of Inner Ring 158 mm

Features

How Does NU 1028 ML Bearing Handle Combined Loads?

NU 1028 ML Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and axial loads.
Its dynamic radial load capacity reaches 45,900 lbf, ensuring reliable performance in demanding conditions.
The brass cage keeps the rollers aligned, reducing friction and extending service life.
With a maximum speed of 5,000 rpm, it balances durability and efficiency for various applications.

Application

Industrial Uses of NU 1028 ML Bearing
NU 1028 ML Bearing is commonly used in heavy machinery like industrial gearboxes and large electric motors, where its cylindrical roller design handles high radial loads efficiently. The brass cage ensures smooth operation even at high speeds, making it suitable for demanding environments.

Where Is NU 1028 ML Bearing Used?
In automotive applications, NU 1028 ML Bearing supports components such as transmissions and differentials, providing reliable performance under combined loads. Its metric dimensions make it a versatile choice for various vehicle designs.

Built for Heavy-Duty Use: NU 1028 ML Bearing
NU 1028 ML Bearing excels in construction equipment, where its chrome steel construction withstands harsh conditions. The open seal design allows for easy lubrication, extending its service life in dusty or wet environments.

Automotive vs Aerospace: Applications of NU 1028 ML Bearing
NU 1028 ML Bearing is favoured in automotive systems for its durability, while its precision also makes it suitable for aerospace applications like auxiliary power units. The wide temperature range ensures performance in diverse climates.

Perfect Fit for Automation: NU 1028 ML Bearing
NU 1028 ML Bearing is ideal for robotic arms and automated production lines, where its high-speed capability and low friction enhance efficiency. The brass cage reduces vibration, ensuring smooth movement in precision tasks.
