Single Row Cylindrical Roller Bearings With Inner Ring NU 1019 ML
Single Row Cylindrical Roller Bearings With Inner Ring NU 1019 ML

Single Row Cylindrical Roller Bearings With Inner Ring NU 1019 ML

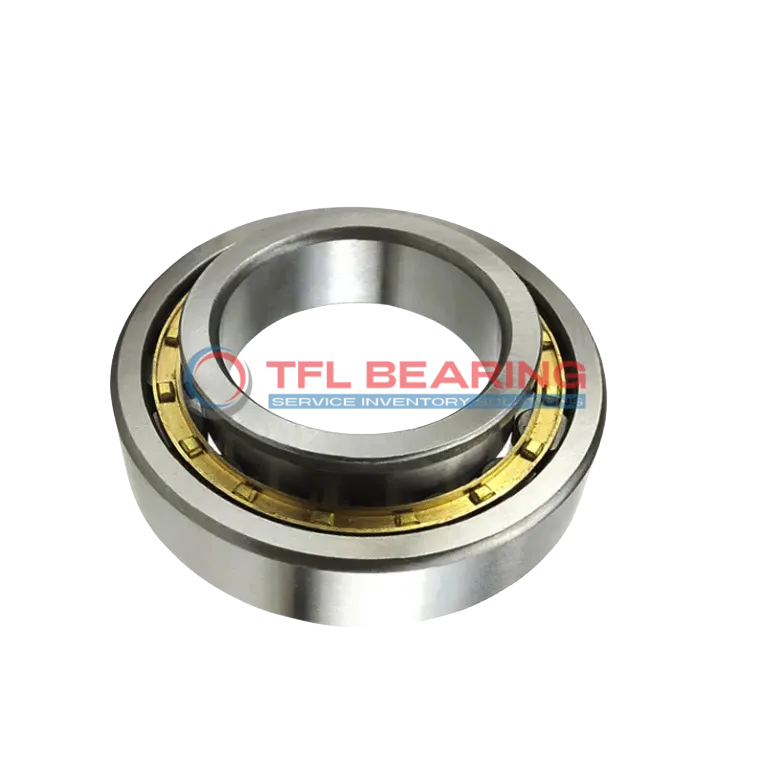

The NU 1019 ML is a single row cylindrical roller bearing with a 95mm bore and 145mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 21712 lbf and reaches speeds of 8000 RPM.

Its brass cage design ensures smooth operation, while the open seal allows for easy lubrication with grease or oil. The bearing works reliably in temperatures from -30°C to 110°C.

With a compact width of 24mm, it fits well in tight spaces. The chamfered edges (1.5mm and 1.1mm) make installation simpler.

Ideal for industrial machinery or heavy equipment where radial and axial loads are present. Compliant with RoHS and REACH standards, it’s a dependable choice for replacements, interchangeable with SKF bearings. Weighs 1.46kg for its robust size.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number NU 1019 ML
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 95 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 145 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 24 mm
  • Width Tolerance -0.20mm to 0
  • Chamfer Dimension r1,2(min.) 1.5 mm
  • Chamfer Dimension r3,4(min.) 1.1 mm
  • Permissible Axial Displacement(max.) 3.5 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, inner or outer ring centred
  • Dynamic Radial Load 21712 lbf
  • Static Radial Load 24750 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 8000 rpm
  • Weight 1.46 kg
  • Shoulder Dia Of Outer Ring 127.1 mm
  • Raceway Diameter Of Inner Ring 108 mm

Features

Performance Features of NU 1019 ML Bearing

NU 1019 ML Bearing is crafted with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 21712 lbf, ensuring reliable performance in various applications.

The brass cage design keeps the rollers aligned, reducing friction and extending service life.
With a maximum speed of 8000 rpm, it balances durability and efficiency for demanding tasks.

NU 1019 ML Bearing operates smoothly in temperatures ranging from -30° to 110 °C.
Its open design allows for easy lubrication with grease or oil, minimising maintenance needs.

Application

Industrial Uses of NU 1019 ML Bearing
NU 1019 ML Bearing is commonly used in heavy machinery like gearboxes and electric motors, where its cylindrical roller design handles combined loads efficiently. The brass cage ensures smooth operation even at high speeds up to 8000 rpm.

What Makes NU 1019 ML Bearing a Preferred Choice?
In conveyor systems, NU 1019 ML Bearing’s chrome steel construction offers durability and reliability under continuous operation. Its open design allows for easy lubrication, extending service life in demanding environments.

Built for Heavy-Duty Use: NU 1019 ML Bearing
NU 1019 ML Bearing excels in industrial fans and pumps, where its high dynamic radial load capacity of 21712 lbf ensures consistent performance. The metric dimensions make it a versatile fit for various European equipment standards.

Automotive vs Aerospace: Applications of NU 1019 ML Bearing
In automotive transmissions, NU 1019 ML Bearing supports smooth power transfer, while its temperature range suits aerospace auxiliary systems. The brass cage reduces friction, enhancing efficiency in both sectors.

Perfect Fit for Automation: NU 1019 ML Bearing
NU 1019 ML Bearing is ideal for robotic arms and CNC machines, where precision and load capacity are critical. Its 24 mm width provides a compact solution without compromising strength.
