Single Row Cylindrical Roller Bearings With Inner Ring NJ 340 ECML
Single Row Cylindrical Roller Bearings With Inner Ring NJ 340 ECML

Single Row Cylindrical Roller Bearings With Inner Ring NJ 340 ECML

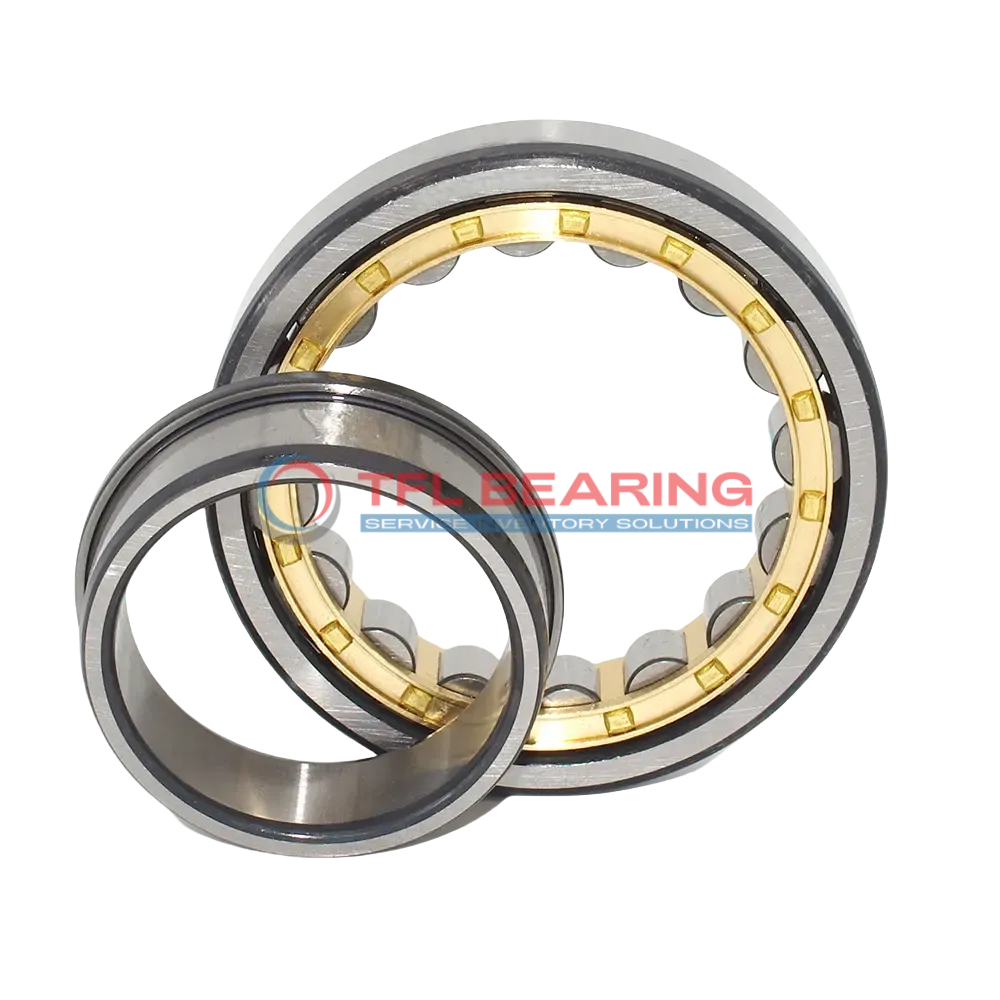

The NJ 340 ECML is a single row cylindrical roller bearing with a 200mm bore and 420mm outer diameter, built from tough chrome steel. It handles combined loads up to 276750 lbf and runs smoothly at speeds up to 3000 RPM.

Its brass cage design ensures durability, while the open construction allows easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy machinery or industrial equipment where high radial and axial loads are present.

Weighing 56.3kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number NJ 340 ECML
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 200 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 420 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 80 mm
  • Width Tolerance -0.30mm to 0
  • Shoulder Dia Of Inner Ring 278 mm
  • Chamfer Dimension r1,2(min.) 5 mm
  • Chamfer Dimension r3,4(min.) 5 mm
  • Permissible Axial Displacement(max.) 6 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, inner or outer ring centred
  • Dynamic Radial Load 276750 lbf
  • Static Radial Load 366750 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 3000 rpm
  • Weight 56.3 kg
  • Shoulder Dia Of Outer Ring 352.4 mm
  • Raceway Diameter Of Inner Ring 258 mm

Features

Performance Features of NJ 340 ECML Bearing

NJ 340 ECML Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 276750 lbf, ensuring reliable performance in heavy-duty applications.

The brass cage design keeps the rollers aligned, reducing wear and extending service life.
With a maximum speed of 3000 rpm, it balances durability and efficiency in demanding conditions.

NJ 340 ECML Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

The precise chamfer dimensions of 5 mm ensure easy installation and alignment.
This bearing is ideal for applications requiring high load capacity and long service life.

Application

Industrial Uses of NJ 340 ECML Bearing
NJ 340 ECML Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its high radial load capacity ensures reliable performance. The brass cage design helps reduce friction, making it suitable for continuous operation.

What Makes NJ 340 ECML Bearing a Preferred Choice?
In automotive applications, NJ 340 ECML Bearing supports components such as drivetrains and wheel hubs, thanks to its combined load handling capability. Its chrome steel construction provides durability even under demanding conditions.

Built for Heavy-Duty Use: NJ 340 ECML Bearing
For automation equipment, NJ 340 ECML Bearing excels in robotic arms and precision machinery, where its single-row design offers stability and accuracy. The open seal type allows for easy lubrication, extending its service life.

Medical vs Industrial: Where NJ 340 ECML Bearing Excels
In medical imaging devices, NJ 340 ECML Bearing’s precise tolerances ensure smooth operation, while its industrial-grade strength makes it ideal for large-scale manufacturing equipment. The temperature range suits both environments well.
