Single Row Cylindrical Roller Bearings With Inner Ring NJ 328 ECM
Single Row Cylindrical Roller Bearings With Inner Ring NJ 328 ECM

Single Row Cylindrical Roller Bearings With Inner Ring NJ 328 ECM

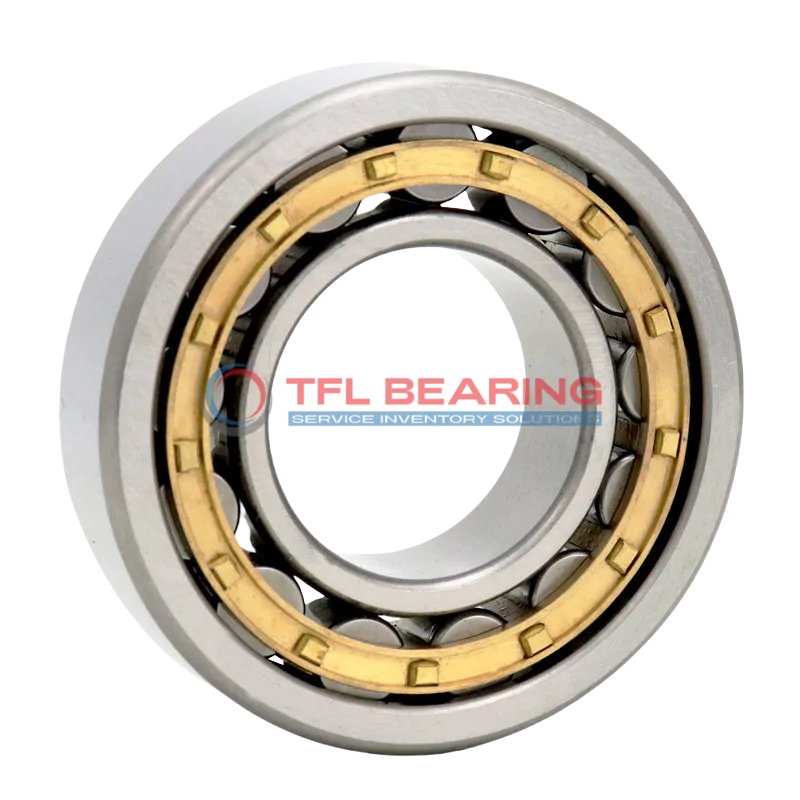

The NJ 328 ECM is a single row cylindrical roller bearing with a 140mm bore and 300mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 175500 lbf and operates smoothly at speeds up to 3000 RPM.

Its brass cage ensures stable roller movement, while the open design allows easy lubrication with grease or oil. The bearing performs reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy machinery or industrial equipment where radial and axial loads are present.

Weighing 23.1kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number NJ 328 ECM
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 140 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 300 mm
  • Outer Dia Tolerance -0.035mm to 0
  • Width 62 mm
  • Width Tolerance -0.25mm to 0
  • Shoulder Dia Of Inner Ring 195 mm
  • Chamfer Dimension r1,2(min.) 4 mm
  • Chamfer Dimension r3,4(min.) 4 mm
  • Permissible Axial Displacement(max.) 3.7 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, roller centred
  • Dynamic Radial Load 175500 lbf
  • Static Radial Load 186750 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 3000 rpm
  • Weight 23.1 kg
  • Shoulder Dia Of Outer Ring 250.6 mm
  • Raceway Diameter Of Inner Ring 180 mm

Features

Performance Features of NJ 328 ECM Bearing

NJ 328 ECM Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 175,500 lbf, ensuring reliable performance in heavy-duty applications.
The brass cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 3,000 rpm, it balances durability and efficiency in demanding conditions.

Application

Industrial Uses of NJ 328 ECM Bearing
NJ 328 ECM Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its high radial load capacity ensures reliable performance. The brass cage design helps reduce friction, making it suitable for continuous operation.

Where Is NJ 328 ECM Bearing Used?
In automotive applications, NJ 328 ECM Bearing supports components such as drivetrains and wheel hubs, handling combined loads with ease. Its chrome steel construction provides durability under demanding conditions.

Built for Heavy-Duty Use: NJ 328 ECM Bearing
This bearing excels in construction equipment like cranes and excavators, where its robust design withstands intense vibrations and shocks. The open seal type allows for easy lubrication, extending service life.

Automotive vs Aerospace: Applications of NJ 328 ECM Bearing
While NJ 328 ECM Bearing is popular in truck transmissions, its precision also makes it suitable for aerospace auxiliary systems. The metric sizing ensures compatibility with a wide range of international machinery.

Perfect Fit for Automation: NJ 328 ECM Bearing
In automated production lines, NJ 328 ECM Bearing ensures smooth operation of robotic arms and assembly systems. Its high-speed capability and temperature resistance make it a dependable choice for industrial automation.
