Single Row Cylindrical Roller Bearings With Inner Ring NJ 319 ECP
Single Row Cylindrical Roller Bearings With Inner Ring NJ 319 ECP

Single Row Cylindrical Roller Bearings With Inner Ring NJ 319 ECP

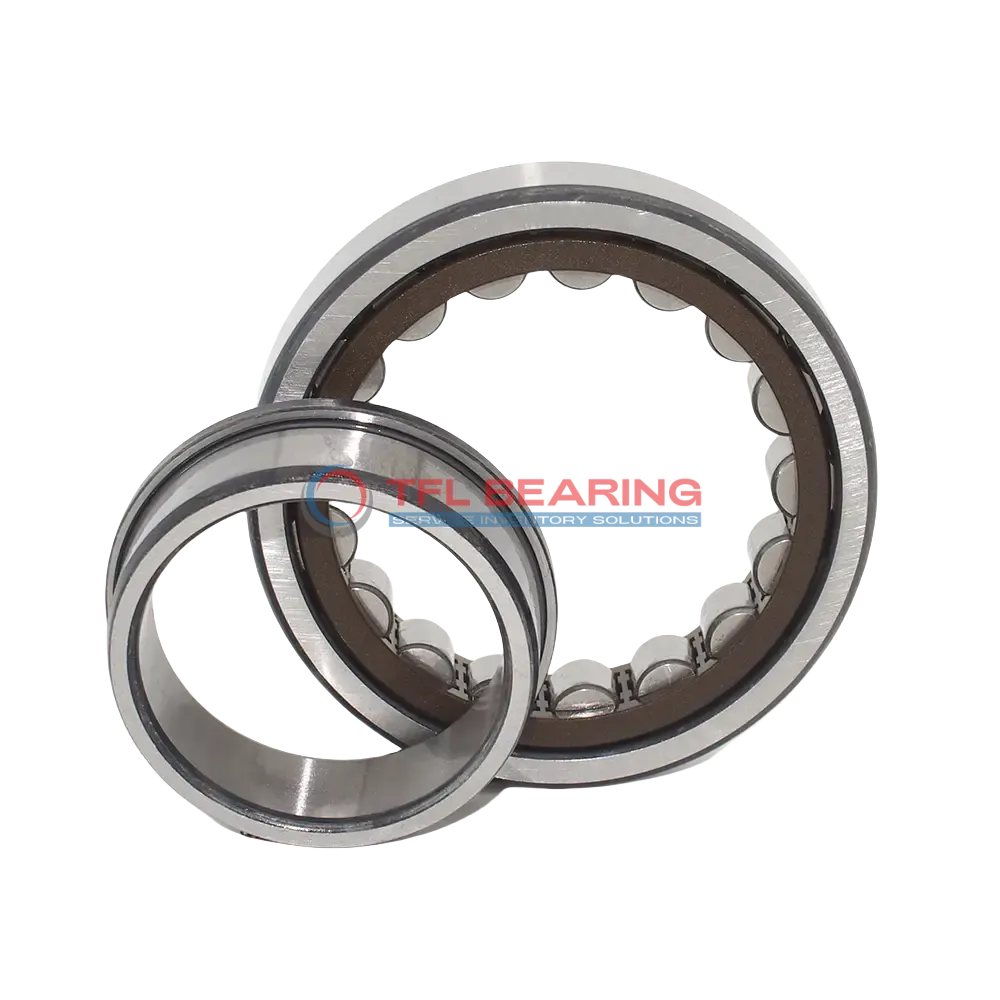

The NJ 319 ECP is a single row cylindrical roller bearing with a 95mm bore and 200mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 87750 lbf and operates smoothly at speeds up to 4000 RPM.

Its open design allows for easy lubrication with grease or oil, while the PA66 cage ensures durability and centred roller alignment. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or machinery where radial and axial loads are present.

Weighing 6.54kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and versatile use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number NJ 319 ECP
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 95 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 45 mm
  • Width Tolerance -0.20mm to 0
  • Shoulder Dia Of Inner Ring 132 mm
  • Chamfer Dimension r1,2(min.) 3 mm
  • Chamfer Dimension r3,4(min.) 3 mm
  • Permissible Axial Displacement(max.) 2.9 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PA66 cage, roller centred
  • Dynamic Radial Load 87750 lbf
  • Static Radial Load 87750 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4000 rpm
  • Weight 6.54 kg
  • Shoulder Dia Of Outer Ring 168.45 mm
  • Raceway Diameter Of Inner Ring 121.5 mm

Features

How Does NJ 319 ECP Bearing Handle Combined Loads?

NJ 319 ECP Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and axial loads.
Its dynamic radial load capacity reaches 87,750 lbf, ensuring reliable performance in demanding applications.
The PA66 cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 4,000 rpm, it balances durability and efficiency in various conditions.

Application

Key Fields for NJ 319 ECP Bearing
NJ 319 ECP Bearing is widely used in industrial machinery, such as gearboxes and large pumps, where its cylindrical roller design handles heavy radial loads efficiently. The open seal type allows for easy lubrication, making it suitable for high-speed operations.

Where Is NJ 319 ECP Bearing Used?
In automotive applications, NJ 319 ECP Bearing supports components like drivetrains and wheel hubs, thanks to its robust chrome steel construction. Its metric sizing ensures compatibility with a variety of vehicle designs.

Perfect Fit for Automation: NJ 319 ECP Bearing
NJ 319 ECP Bearing excels in automated systems, including conveyor belts and robotic arms, where precise axial displacement is required. The PA66 cage material provides durability and reduces friction during continuous use.

Medical vs Industrial: Where NJ 319 ECP Bearing Excels
While NJ 319 ECP Bearing is common in industrial settings, its reliability also makes it a good fit for medical imaging devices. The temperature range of -30° to 110°C ensures consistent performance in various environments.
