Single Row Cylindrical Roller Bearings With Inner Ring NJ 2324 ECML
Single Row Cylindrical Roller Bearings With Inner Ring NJ 2324 ECML

Single Row Cylindrical Roller Bearings With Inner Ring NJ 2324 ECML

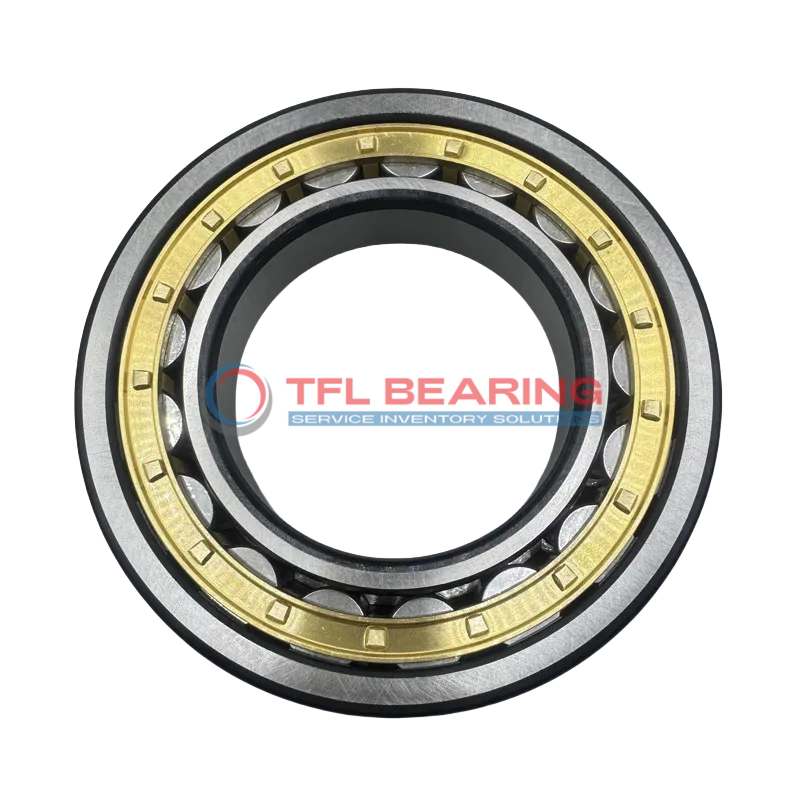

The NJ 2324 ECML is a single row cylindrical roller bearing with a 120mm bore and 260mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 205875 lbf and runs smoothly at speeds up to 5000 RPM.

Its brass cage design ensures durability, while the open seal allows for easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or large machinery where high radial loads are common.

Weighing 22.8kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number NJ 2324 ECML
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 260 mm
  • Outer Dia Tolerance -0.035mm to 0
  • Width 86 mm
  • Width Tolerance -0.20mm to 0
  • Shoulder Dia Of Inner Ring 168 mm
  • Chamfer Dimension r1,2(min.) 3 mm
  • Chamfer Dimension r3,4(min.) 3 mm
  • Permissible Axial Displacement(max.) 7.2 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, inner or outer ring centred
  • Dynamic Radial Load 205875 lbf
  • Static Radial Load 234000 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5000 rpm
  • Weight 22.8 kg
  • Shoulder Dia Of Outer Ring 218.7 mm
  • Raceway Diameter Of Inner Ring 154 mm

Features

Performance Features of NJ 2324 ECML Bearing

NJ 2324 ECML Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 205875 lbf, ensuring reliable performance in heavy-duty applications.
The brass cage keeps the rollers aligned, reducing wear and extending service life.
With a maximum speed of 5000 rpm, it balances durability and efficiency.

How Does NJ 2324 ECML Bearing Resist Wear?

NJ 2324 ECML Bearing’s chrome steel construction provides excellent wear resistance, even under high loads.
The brass cage design minimises friction, ensuring smooth operation over extended periods.
Its precision-engineered rollers distribute loads evenly, reducing stress on individual components.
This design helps maintain performance in demanding industrial environments.

Engineered for Precision: NJ 2324 ECML Bearing

NJ 2324 ECML Bearing features a single-row cylindrical design for precise load distribution.
The inner ring construction ensures stable operation, even during axial displacement.
Its open seal type allows for easy lubrication with grease or oil.
This makes it suitable for applications requiring both radial and axial load handling.

Why Choose NJ 2324 ECML Bearing for Combined Loads?

NJ 2324 ECML Bearing handles combined loads efficiently, thanks to its robust cylindrical roller design.
The chrome steel materials resist deformation under high stress, ensuring long-term reliability.
Its 86 mm width provides stability, while the 120 mm bore accommodates larger shafts.
This bearing is ideal for machinery requiring both radial and axial load support.

Structural Advantages of NJ 2324 ECML Bearing

NJ 2324 ECML Bearing’s brass cage centres the rollers, improving alignment and reducing vibration.
The 260 mm outer diameter offers a large contact area for better load distribution.
Its -30° to 110 °C temperature range ensures performance in various operating conditions.
This makes it a versatile choice for industrial applications.

Application

Industrial Uses of NJ 2324 ECML Bearing
NJ 2324 ECML Bearing is commonly used in heavy machinery like industrial gearboxes and large electric motors, where its cylindrical roller design handles both radial and axial loads efficiently. The brass cage ensures smooth operation even at high speeds, making it a reliable choice for demanding environments.

What Makes NJ 2324 ECML Bearing a Preferred Choice?
In automotive applications, NJ 2324 ECML Bearing supports components like drivetrains and wheel hubs, thanks to its robust chrome steel construction. Its metric sizing and high load capacity make it compatible with a variety of vehicle designs.

Built for Heavy-Duty Use: NJ 2324 ECML Bearing
For automation systems, NJ 2324 ECML Bearing excels in robotic arms and conveyor belts, where precision and durability are key. The open seal design allows for easy lubrication, extending its service life in continuous operation.

Medical vs Industrial: Where NJ 2324 ECML Bearing Excels
While NJ 2324 ECML Bearing is ideal for industrial equipment like pumps and compressors, its precision also suits medical imaging devices. The temperature range and compliance with RoHS ensure it meets strict industry standards.

Where Is NJ 2324 ECML Bearing Used?
In consumer electronics, NJ 2324 ECML Bearing can be found in large printers and industrial fans, where its high-speed capability and low maintenance are advantageous. The grease or oil lubrication options provide flexibility for different operating conditions.
