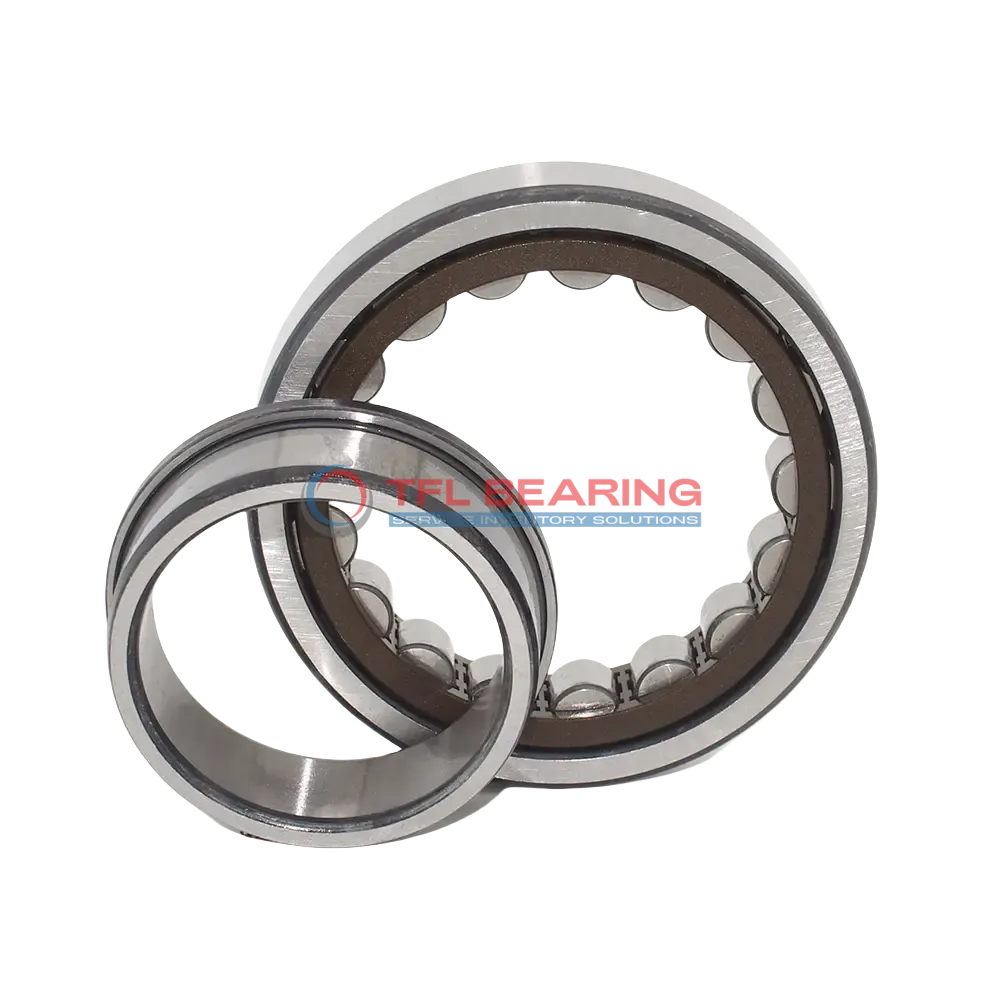

Single Row Cylindrical Roller Bearings With Inner Ring NJ 2320 ECP
Single Row Cylindrical Roller Bearings With Inner Ring NJ 2320 ECP

Single Row Cylindrical Roller Bearings With Inner Ring NJ 2320 ECP

The NJ 2320 ECP is a single-row cylindrical roller bearing with a 100mm bore and 215mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 150750 lbf and runs smoothly at speeds up to 4000 RPM.

Its open design allows for easy lubrication with grease or oil, while the PA66 cage ensures durability and centred roller alignment. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or machinery where radial and axial loads are present.

Weighing 12.2kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and reliable use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number NJ 2320 ECP
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 73 mm
  • Width Tolerance -0.20mm to 0
  • Shoulder Dia Of Inner Ring 139 mm
  • Chamfer Dimension r1,2(min.) 3 mm
  • Chamfer Dimension r3,4(min.) 3 mm
  • Permissible Axial Displacement(max.) 5.9 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PA66 cage, roller centred
  • Dynamic Radial Load 150750 lbf
  • Static Radial Load 165375 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4000 rpm
  • Weight 12.2 kg
  • Shoulder Dia Of Outer Ring 181.1 mm
  • Raceway Diameter Of Inner Ring 127.5 mm

Features

Performance Features of NJ 2320 ECP Bearing

NJ 2320 ECP Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 150750 lbf, ensuring reliable performance in heavy-duty applications.

The PA66 cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 4000 rpm, it balances durability and efficiency in demanding conditions.

NJ 2320 ECP Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

The precise chamfer dimensions of 3 mm ensure easy installation and alignment.
This bearing is ideal for applications requiring high radial load capacity and long service life.

Application

Industrial Uses of NJ 2320 ECP Bearing
NJ 2320 ECP Bearing is commonly used in heavy machinery like industrial gearboxes and large electric motors, where its cylindrical roller design handles both radial and axial loads efficiently. The chrome steel construction ensures durability even in demanding environments.

Where Is NJ 2320 ECP Bearing Used?
You’ll often find NJ 2320 ECP Bearing in conveyor systems and mining equipment, thanks to its ability to withstand high radial loads. The PA66 cage also helps reduce friction, making it suitable for high-speed applications up to 4000 rpm.

Built for Heavy-Duty Use: NJ 2320 ECP Bearing
NJ 2320 ECP Bearing excels in applications like wind turbines and construction machinery, where reliability under combined loads is key. Its open design allows for easy lubrication, extending service life in harsh conditions.

Automotive vs Aerospace: Applications of NJ 2320 ECP Bearing
In automotive transmissions, NJ 2320 ECP Bearing provides smooth operation under heavy loads, while in aerospace, its precision makes it ideal for auxiliary power units. The metric sizing ensures compatibility across various industries.

Perfect Fit for Automation: NJ 2320 ECP Bearing
NJ 2320 ECP Bearing is a great choice for robotic arms and automated production lines, offering stability and low maintenance. The temperature range of -30° to 110°C ensures performance in diverse operating conditions.
