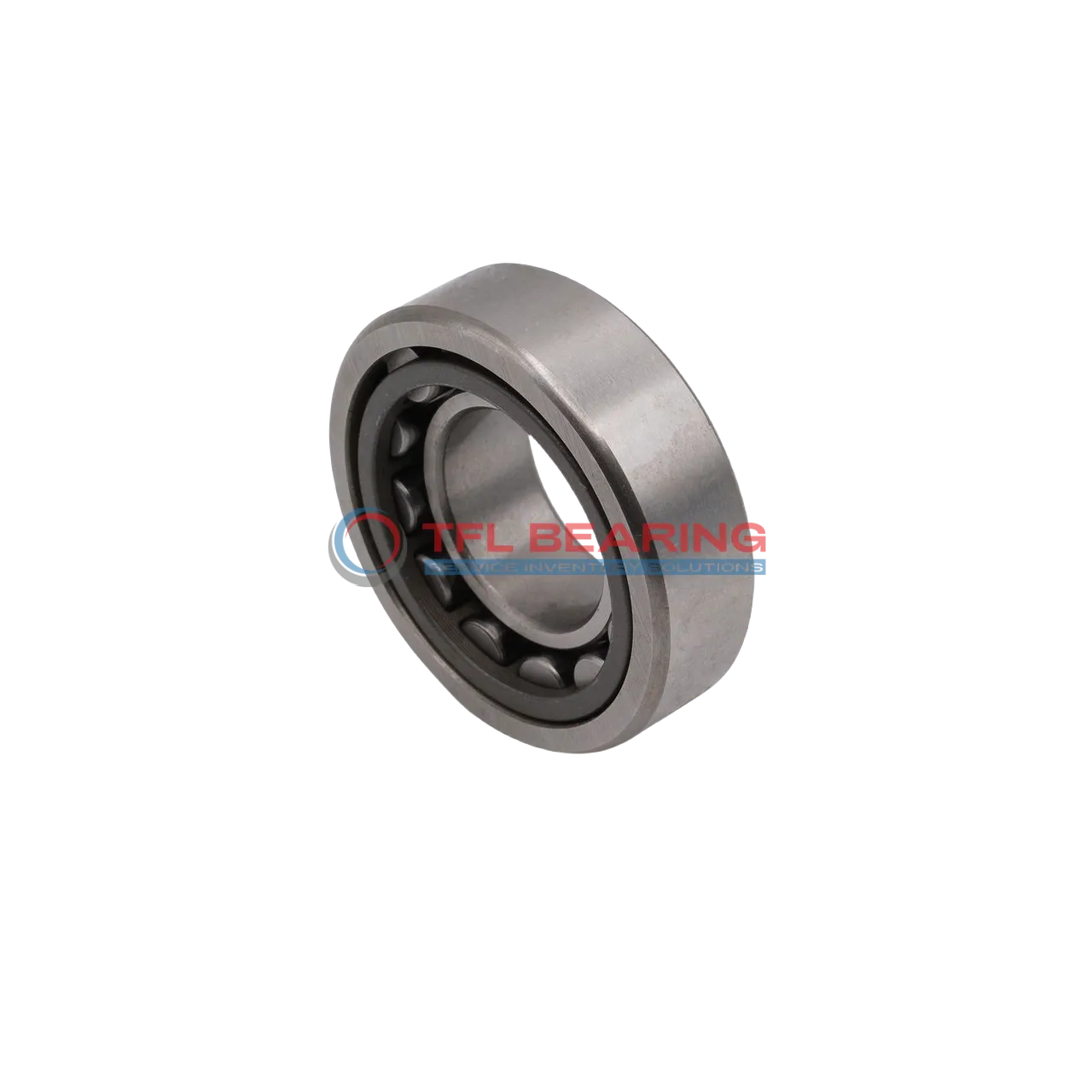

Single Row Cylindrical Roller Bearings With Inner Ring NJ 2310 ECP
Single Row Cylindrical Roller Bearings With Inner Ring NJ 2310 ECP

Single Row Cylindrical Roller Bearings With Inner Ring NJ 2310 ECP

The NJ 2310 ECP is a single-row cylindrical roller bearing with a 50mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 41850 lbf and reaches speeds of 8000 RPM.

Its open design and PA66 cage ensure smooth operation, while the inner ring provides stability. The bearing works in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like gearboxes or industrial machinery.

Weighing 1.77kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number NJ 2310 ECP
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 40 mm
  • Width Tolerance -0.12mm to 0
  • Shoulder Dia Of Inner Ring 71.2 mm
  • Chamfer Dimension r1,2(min.) 2 mm
  • Chamfer Dimension r3,4(min.) 2 mm
  • Permissible Axial Displacement(max.) 3.4 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PA66 cage, roller centred
  • Dynamic Radial Load 41850 lbf
  • Static Radial Load 41850 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 8000 rpm
  • Weight 1.77 kg
  • Shoulder Dia Of Outer Ring 91.4 mm
  • Raceway Diameter Of Inner Ring 65 mm

Features

Core Advantages of NJ 2310 ECP Bearing

NJ 2310 ECP Bearing features chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 41850 lbf, ensuring reliable performance in demanding conditions.

The PA66 cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 8000 rpm, it balances durability and efficiency for various applications.

NJ 2310 ECP Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

The precise chamfer dimensions of 2 mm ensure easy installation and alignment.
This makes NJ 2310 ECP Bearing a practical choice for industrial machinery.

Application

Industrial Uses of NJ 2310 ECP Bearing
NJ 2310 ECP Bearing is commonly used in heavy machinery like conveyor systems and industrial gearboxes, where its cylindrical roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

Where Is NJ 2310 ECP Bearing Used?
You’ll often find NJ 2310 ECP Bearing in automotive applications such as transmissions and differentials, thanks to its high radial load capacity. Its open design allows for easy lubrication, extending service life in high-speed scenarios.

Built for Heavy-Duty Use: NJ 2310 ECP Bearing
NJ 2310 ECP Bearing excels in construction equipment like cranes and excavators, where its robust design withstands heavy loads. The PA66 cage provides smooth operation, reducing friction and wear over time.

Automotive vs Industrial: Applications of NJ 2310 ECP Bearing
In automotive settings, NJ 2310 ECP Bearing supports drivetrain components, while in industrial settings, it’s ideal for pumps and compressors. Its metric sizing makes it versatile for various machinery types.

Perfect Fit for Automation: NJ 2310 ECP Bearing
NJ 2310 ECP Bearing is a reliable choice for robotic arms and automated assembly lines, where precision and load capacity are key. The grease or oil lubrication options adapt to different operational needs.
