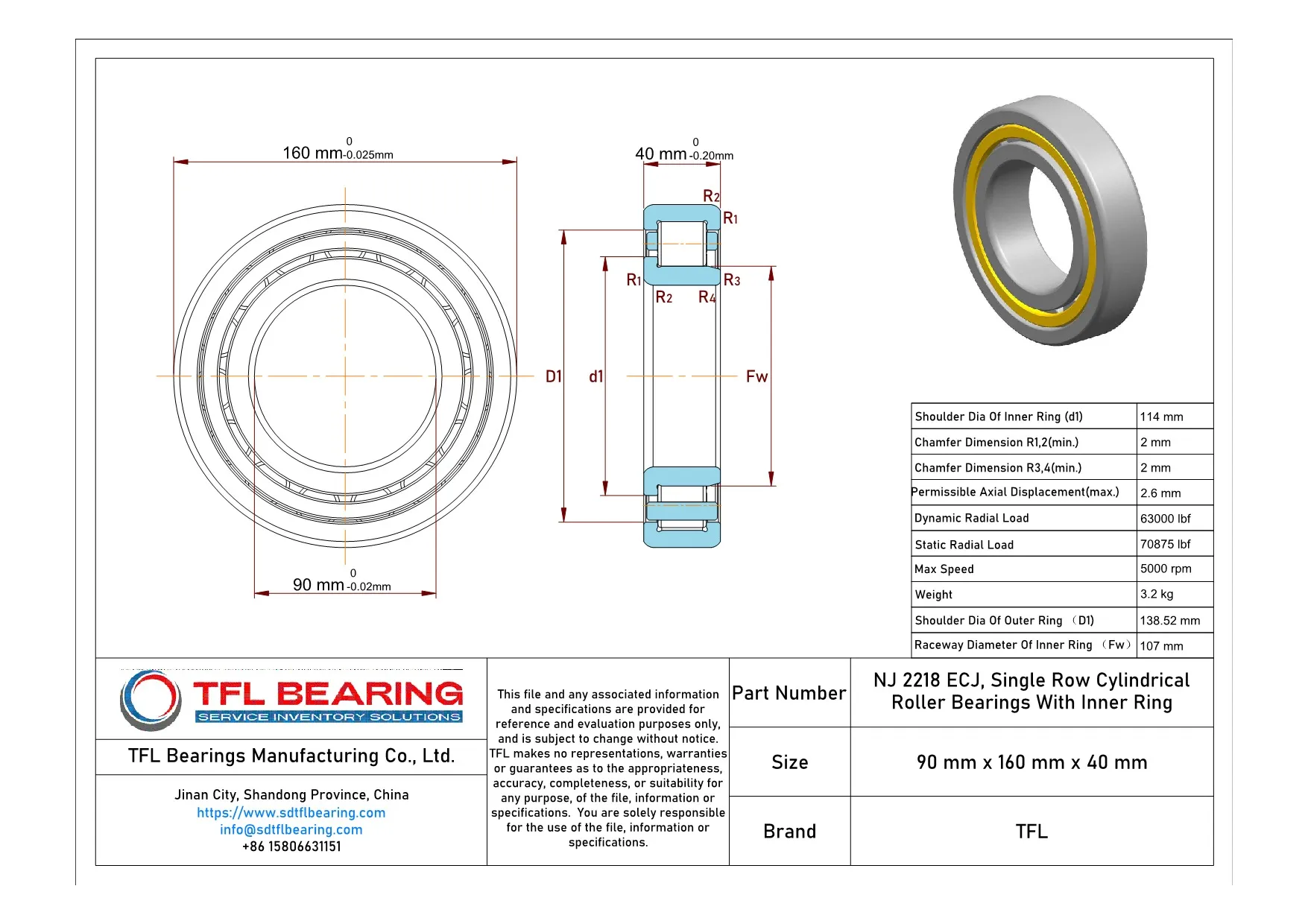

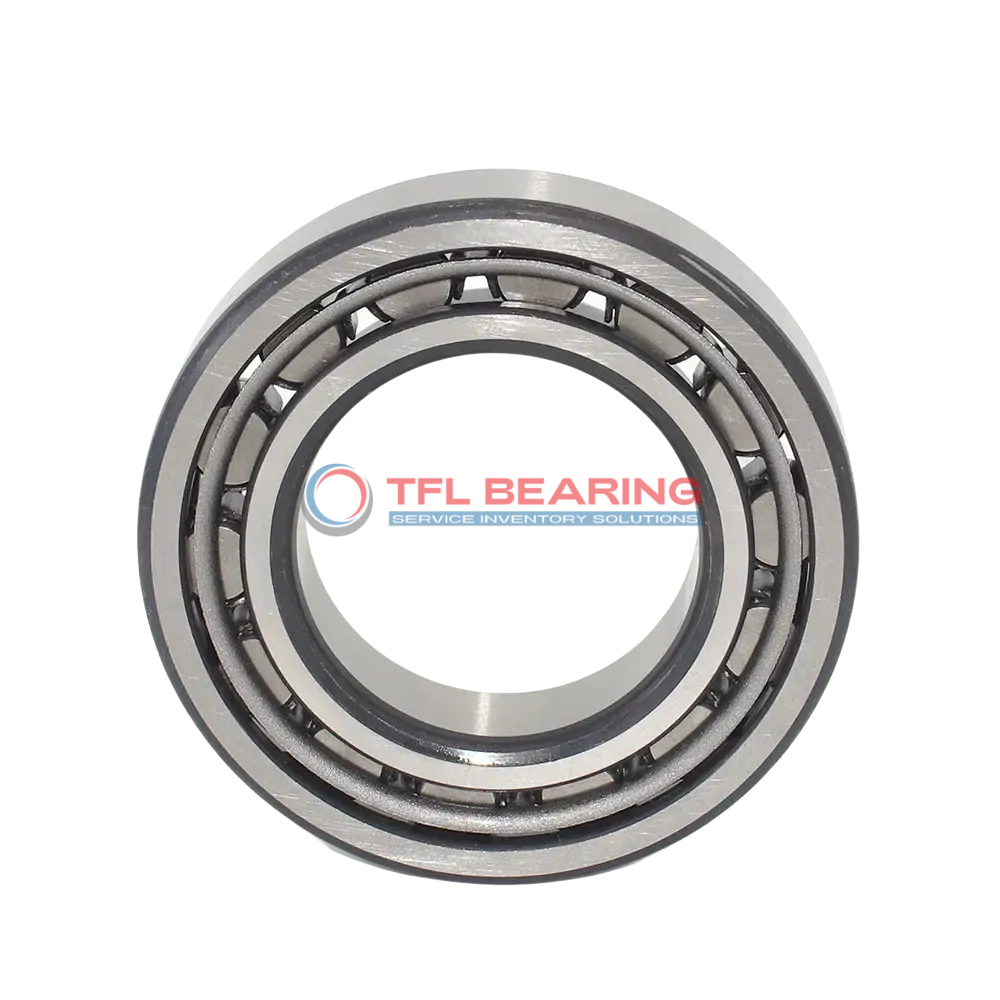

The NJ 2218 ECJ is a single-row cylindrical roller bearing with a 90mm bore and 160mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 63000 lbf and reaches speeds of 5000 RPM.
Its open design allows for easy lubrication with grease or oil, while the steel cage ensures smooth operation. The bearing works reliably in temperatures from -30°C to 110°C.
With a permissible axial displacement of 2.6mm, it offers flexibility in mounting. Ideal for heavy-duty applications like industrial gearboxes or machinery where radial and axial loads are present.
Weighing 3.2kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a dependable choice for replacements, interchangeable with SKF bearings.
"*" indicates required fields
How Does NJ 2218 ECJ Bearing Handle Combined Loads?
NJ 2218 ECJ Bearing features chrome steel rings and rollers, providing strong resistance to both radial and axial loads.
Its dynamic radial load capacity reaches 63,000 lbf, ensuring reliable performance in demanding conditions.
The steel cage keeps the rollers centred, reducing wear and extending service life.
With a maximum speed of 5,000 rpm, it balances durability and efficiency.
Key Fields for NJ 2218 ECJ Bearing
NJ 2218 ECJ Bearing is commonly used in industrial machinery, especially in gearboxes and heavy-duty pumps, where its cylindrical roller design handles combined loads effectively. The chrome steel construction ensures durability in demanding environments.
What Makes NJ 2218 ECJ Bearing a Preferred Choice?
In automotive applications, NJ 2218 ECJ Bearing supports drivetrain components like differentials and transmissions, thanks to its high radial load capacity. Its open design allows for easy lubrication, extending service life.
Built for Heavy-Duty Use: NJ 2218 ECJ Bearing
For automation systems, NJ 2218 ECJ Bearing is ideal for robotic arms and conveyor belts, where precise movement and load handling are essential. The steel cage provides stability during high-speed operations.
Industrial vs Automotive: Applications of NJ 2218 ECJ Bearing
In medical imaging devices, NJ 2218 ECJ Bearing offers reliable performance due to its smooth operation and low maintenance requirements. The metric sizing ensures compatibility with various equipment standards.
