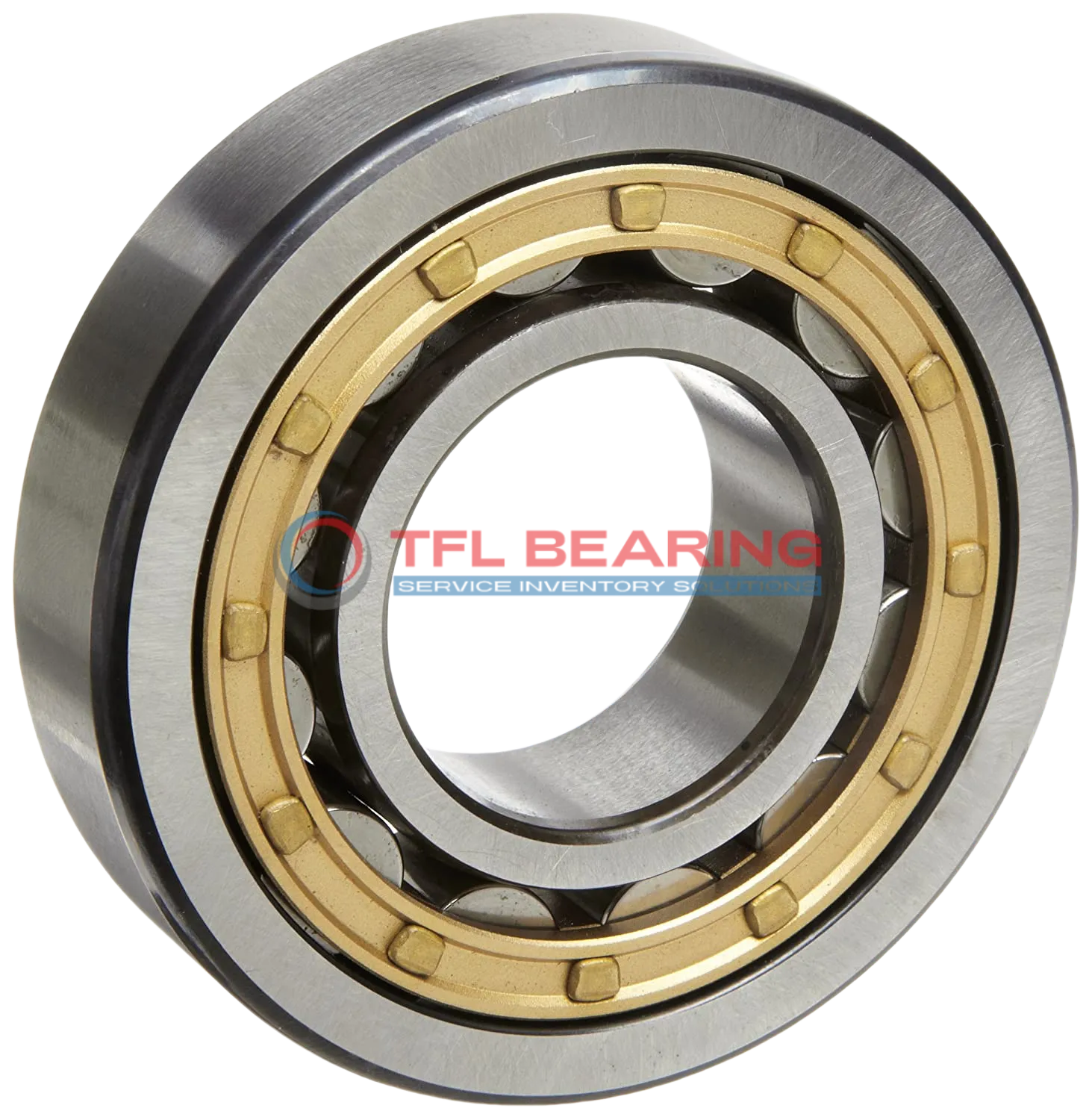

The NJ 2208 ECML is a single-row cylindrical roller bearing with a 40mm bore and 80mm outer diameter, crafted from robust chrome steel. It handles combined loads up to 18338 lbf and reaches speeds of 16000 rpm.
Its brass cage ensures smooth operation, while the open design allows easy lubrication with grease or oil. The bearing works reliably in temperatures from -30°C to 110°C.
With a compact width of 23mm, it fits neatly into tight spaces. The inner ring design provides stability, making it suitable for axial displacement up to 1.9mm.
Ideal for industrial machinery or gear systems where high radial loads and speed are required. Compliant with RoHS and REACH standards, it’s a dependable choice for engineers and maintenance teams. Weighing 0.57kg, it balances strength and portability.
"*" indicates required fields
Performance Features of NJ 2208 ECML Bearing
NJ 2208 ECML Bearing is crafted with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 18338 lbf, ensuring dependable performance in various applications.
The brass cage design keeps the rollers aligned, minimising wear and enhancing longevity.
With a maximum speed of 16,000 rpm, it delivers both durability and efficiency.
NJ 2208 ECML Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open seal type allows for easy lubrication with grease or oil, reducing maintenance needs.
The precise chamfer dimensions of 1.1 mm ensure easy installation and optimal fit.
This bearing is ideal for applications requiring high-speed performance and reliable load handling.
Industrial Uses of NJ 2208 ECML Bearing
NJ 2208 ECML Bearing is commonly used in heavy machinery like industrial gearboxes and electric motors, where its cylindrical roller design handles high radial loads efficiently. The brass cage ensures smooth operation even at high speeds up to 16000 rpm.
In automotive applications, NJ 2208 ECML Bearing fits well in wheel hubs and transmission systems, thanks to its combined load capacity. Its chrome steel construction offers durability under demanding conditions.
For automation equipment, NJ 2208 ECML Bearing provides reliable performance in robotic arms and conveyor systems. The open seal design allows for easy lubrication, extending its service life.
Medical imaging devices benefit from NJ 2208 ECML Bearing’s precision and low noise operation. Its temperature range of -30° to 110°C ensures stability in various environments.
In household appliances like washing machines, NJ 2208 ECML Bearing’s robust design reduces vibration and noise. The metric sizing makes it a versatile choice for many European brands.
