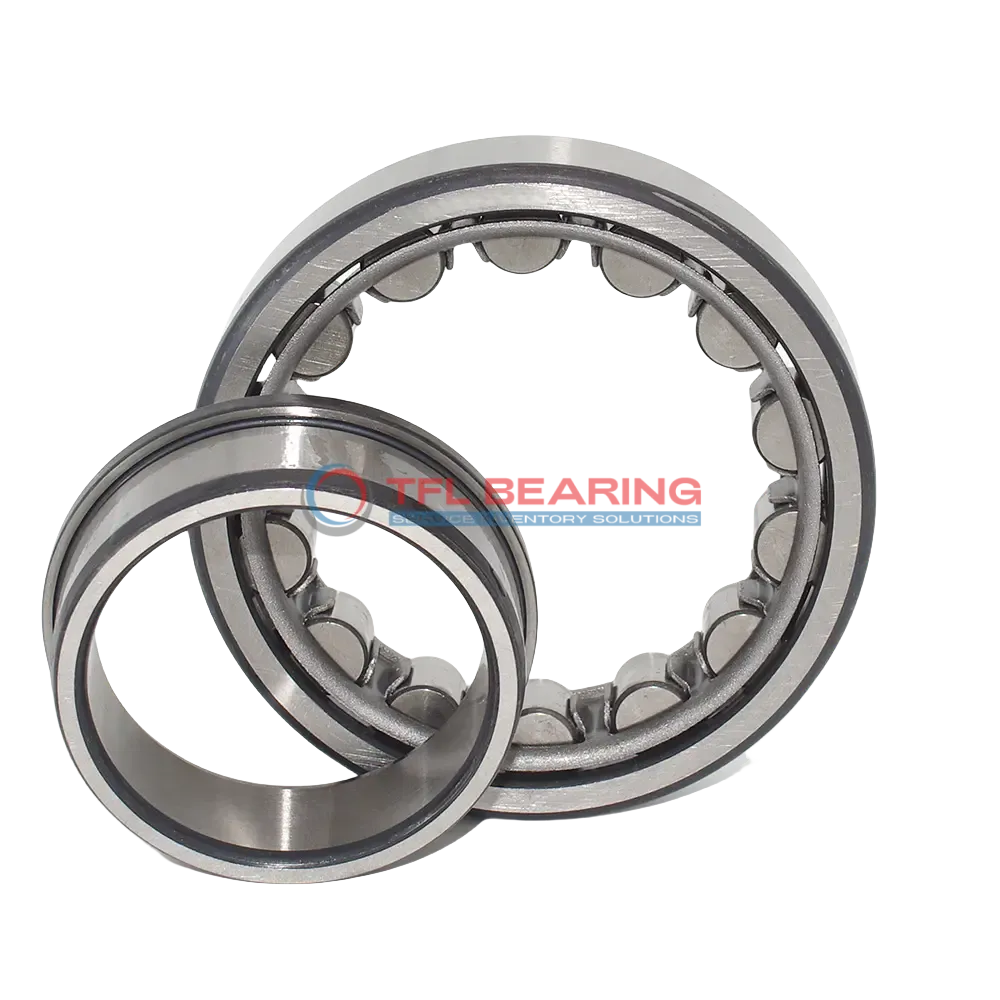

Single Row Cylindrical Roller Bearings With Inner Ring NJ 220 ECJ
Single Row Cylindrical Roller Bearings With Inner Ring NJ 220 ECJ

Single Row Cylindrical Roller Bearings With Inner Ring NJ 220 ECJ

The NJ 220 ECJ is a single-row cylindrical roller bearing with a 100mm bore and 180mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 64125 lbf and runs smoothly at speeds up to 4000 RPM.

Its steel cage keeps rollers centred for stable performance, while the open design allows easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or machinery where radial and axial loads are present.

Weighing 3.55kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number NJ 220 ECJ
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 34 mm
  • Width Tolerance -0.20mm to 0
  • Shoulder Dia Of Inner Ring 127 mm
  • Chamfer Dimension r1,2(min.) 2.1 mm
  • Chamfer Dimension r3,4(min.) 2.1 mm
  • Permissible Axial Displacement(max.) 1.7 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel cage, roller centred
  • Dynamic Radial Load 64125 lbf
  • Static Radial Load 68625 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4000 rpm
  • Weight 3.55 kg
  • Shoulder Dia Of Outer Ring 155.55 mm
  • Raceway Diameter Of Inner Ring 119 mm

Features

How Does NJ 220 ECJ Bearing Handle Combined Loads?

NJ 220 ECJ Bearing features a single-row cylindrical roller design, optimised for both radial and axial loads.
Its chrome steel construction ensures durability and resistance to wear under heavy-duty conditions.
With a dynamic radial load capacity of 64125 lbf, it performs reliably in demanding industrial applications.
The steel cage keeps rollers centred, enhancing stability and extending service life.
Operating temperatures range from -30° to 110°C, making it suitable for various environments.

Application

Industrial Uses of NJ 220 ECJ Bearing
NJ 220 ECJ Bearing is commonly used in heavy machinery like gearboxes and industrial pumps, where its cylindrical roller design handles both radial and axial loads efficiently. The chrome steel construction ensures durability even in demanding environments.

Where Is NJ 220 ECJ Bearing Used?
You’ll often find NJ 220 ECJ Bearing in automotive transmissions, where its high-speed capability and load capacity keep things running smoothly. Its metric sizing makes it a versatile choice for various vehicle models.

Built for Heavy-Duty Use: NJ 220 ECJ Bearing
NJ 220 ECJ Bearing excels in conveyor systems, thanks to its robust steel cage and ability to handle significant radial loads. The open design allows for easy lubrication, extending its service life in continuous operations.

Automotive vs Aerospace: Applications of NJ 220 ECJ Bearing
In automotive applications, NJ 220 ECJ Bearing supports drivetrain components, while in aerospace, its precision and reliability make it suitable for auxiliary systems. The temperature range ensures performance in diverse conditions.

Perfect Fit for Automation: NJ 220 ECJ Bearing
NJ 220 ECJ Bearing is ideal for robotic arms and automated machinery, where its combined load capacity and high-speed performance are crucial. The steel cage design minimises friction, enhancing efficiency.
