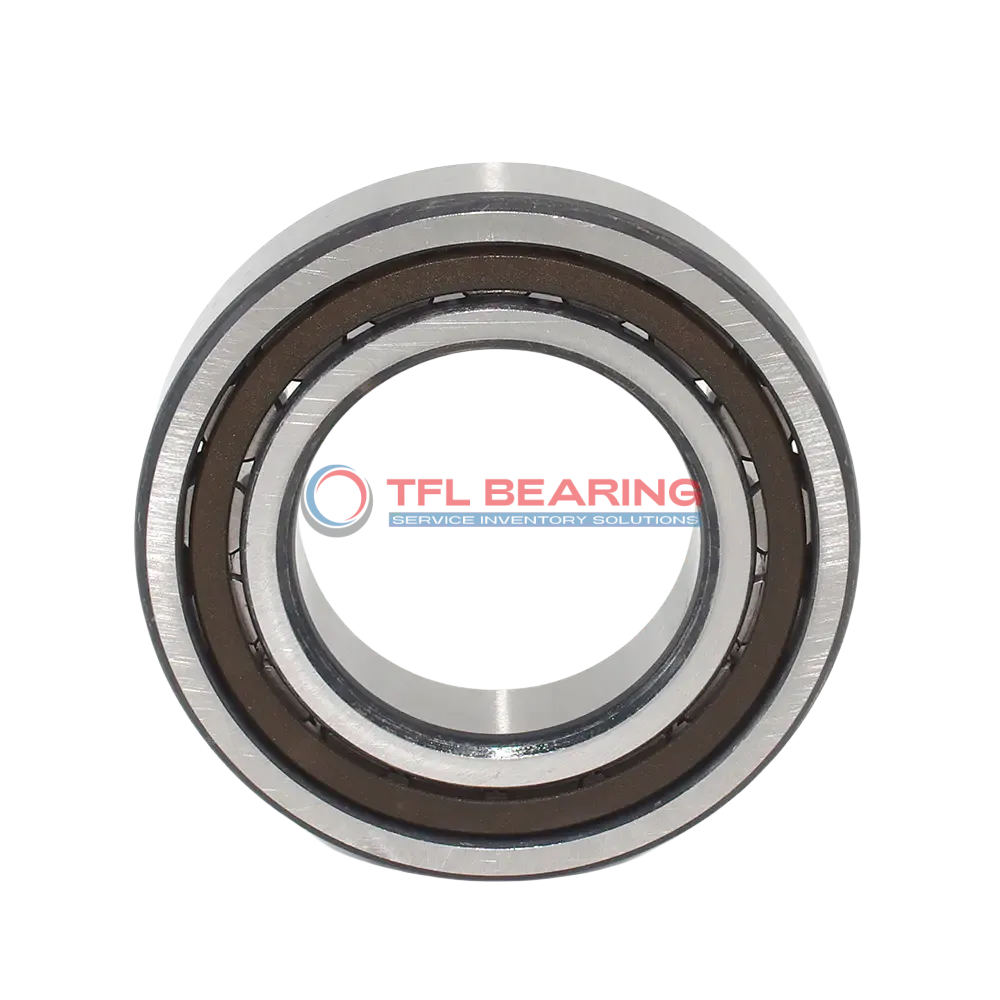

Single Row Cylindrical Roller Bearings With Inner Ring NJ 214 ECPH

The NJ 214 ECPH is a single row cylindrical roller bearing with a 70mm bore and 125mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 30825 lbf and runs smoothly at speeds up to 6000 RPM.

Its PEEK cage keeps rollers centred for stable performance, while the open design allows easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like gearboxes or industrial machinery where combined loads are common.

Weighing 1.2kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

Description

Features

Application

Q&A

Product Parameters

Part Number NJ 214 ECPH
Brand TFL
Interchangeable SKF
Bore Dia 70 mm
Bore Dia Tolerance -0.15mm to 0
Outer Dia 125 mm
Outer Dia Tolerance -0.018mm to 0
Width 24 mm
Width Tolerance -0.15mm to 0
Shoulder Dia Of Inner Ring 89.4 mm
Chamfer Dimension r1,2(min.) 1.5 mm
Chamfer Dimension r3,4(min.) 1.5 mm
Permissible Axial Displacement(max.) 1.2 mm
System of Measurement Metric
Roller Bearing Type Cylindrical
For Load Direction Combined
Construction Single Row
Inner Ring Type With Inner Ring
Seal Type Open
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material PEEK cage, roller centred
Dynamic Radial Load 30825 lbf
Static Radial Load 30825 lbf
Lubrication Grease, Oil
Temperature Range -30° to 110 °C
RoHS Compliant
REACH Compliant
Max Speed 6000 rpm
Weight 1.2 kg
Shoulder Dia Of Outer Ring 108.3 mm
Raceway Diameter Of Inner Ring 83.5 mm

Features

How Does NJ 214 ECPH Bearing Handle Combined Loads?

NJ 214 ECPH Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and axial loads.
Its dynamic radial load capacity reaches 30825 lbf, ensuring reliable performance in demanding conditions.
The PEEK cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 6000 rpm, it balances durability and efficiency for various applications.

Application

Industrial Uses of NJ 214 ECPH Bearing
NJ 214 ECPH Bearing is commonly used in heavy machinery like conveyor systems and industrial gearboxes, where its cylindrical roller design handles high radial loads efficiently. The PEEK cage ensures smooth operation even at speeds up to 6000 rpm.

In automotive applications, NJ 214 ECPH Bearing fits well in transmissions and wheel hubs, thanks to its combined load capacity. Its chrome steel construction offers durability under demanding conditions.

For automation equipment, NJ 214 ECPH Bearing provides reliable performance in robotic arms and assembly lines. The open seal design allows for easy lubrication, extending its service life.

Medical imaging devices also benefit from NJ 214 ECPH Bearing’s precision and low maintenance. The temperature range of -30° to 110°C makes it suitable for various clinical environments.

In household appliances like washing machines, NJ 214 ECPH Bearing ensures quiet and smooth operation. Its metric sizing makes it a versatile choice for manufacturers worldwide.
