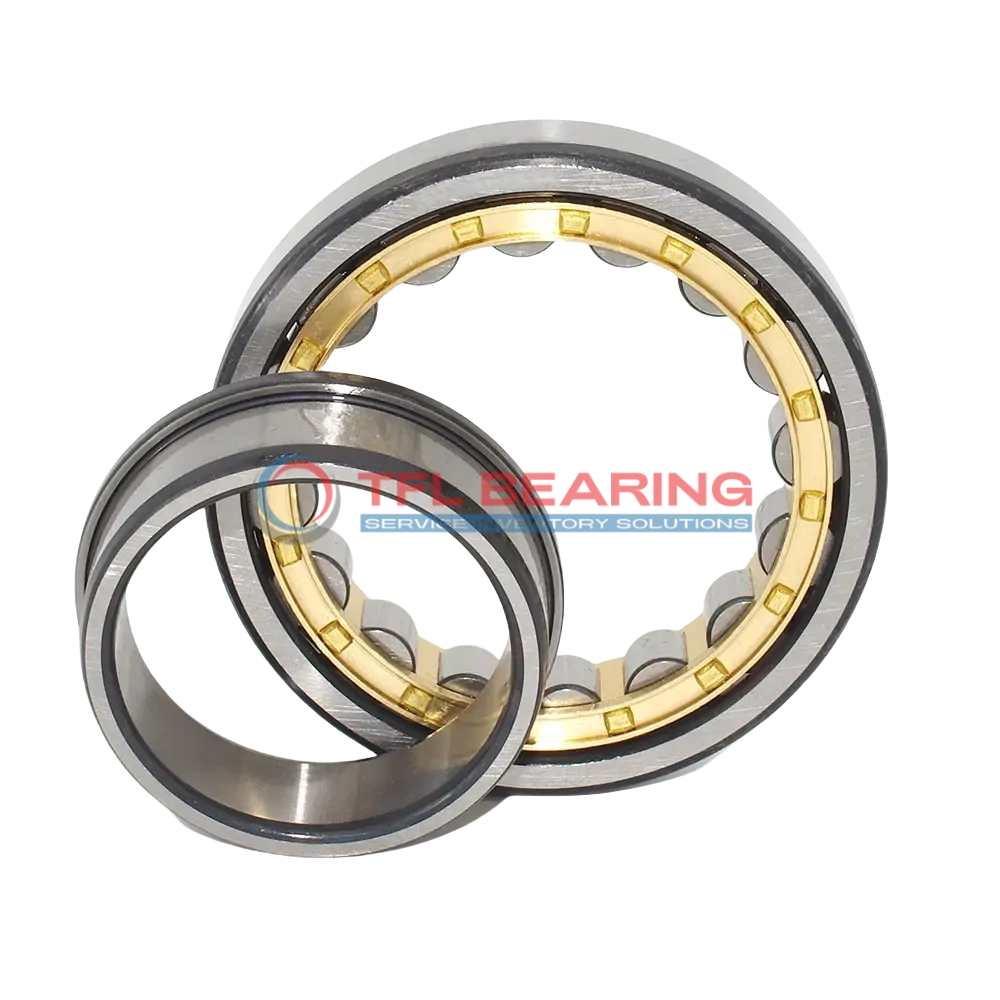

The NJ 1036 ML is a single-row cylindrical roller bearing with a 180mm bore and 280mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 85500 lbf and runs smoothly at speeds up to 4000 RPM.
Its brass cage design ensures durability, while the open seal allows for easy lubrication with grease or oil. The bearing operates well in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or gearboxes where radial and axial loads are present.
Weighing 10.7kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and reliable use.
"*" indicates required fields
Performance Features of NJ 1036 ML Bearing
NJ 1036 ML Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 85,500 lbf, ensuring reliable performance in heavy-duty applications.
The brass cage keeps the rollers aligned, reducing wear and extending service life.
With a maximum speed of 4,000 rpm, it balances durability and efficiency in demanding conditions.
NJ 1036 ML Bearing functions well in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with either grease or oil, reducing maintenance needs.
The precise chamfer dimensions of 2.1 mm ensure smooth installation and operation.
This bearing is ideal for applications requiring high radial load capacity and long service life.
Industrial Uses of NJ 1036 ML Bearing
NJ 1036 ML Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its cylindrical roller design handles combined loads efficiently. The brass cage ensures smooth operation even at high speeds up to 4000 rpm.
Where Is NJ 1036 ML Bearing Used?
In automotive applications, NJ 1036 ML Bearing supports components like differential systems, thanks to its robust chrome steel construction. Its metric sizing makes it a reliable choice for European and Asian vehicle manufacturers.
Built for Heavy-Duty Use: NJ 1036 ML Bearing
For automation equipment, NJ 1036 ML Bearing excels in robotic arms and assembly lines, where precision and durability are key. The open design allows for easy lubrication, extending its service life in demanding environments.
Medical vs Industrial: Where NJ 1036 ML Bearing Excels
While NJ 1036 ML Bearing isn’t typically used in medical devices, it shines in industrial settings like paper mills and mining equipment. Its high static radial load capacity of 106875 lbf makes it ideal for heavy-load scenarios.
Key Fields for NJ 1036 ML Bearing
In wind turbines, NJ 1036 ML Bearing plays a crucial role in the main shaft assembly, handling both radial and axial loads. The temperature range of -30° to 110 °C ensures reliability in varying weather conditions.
