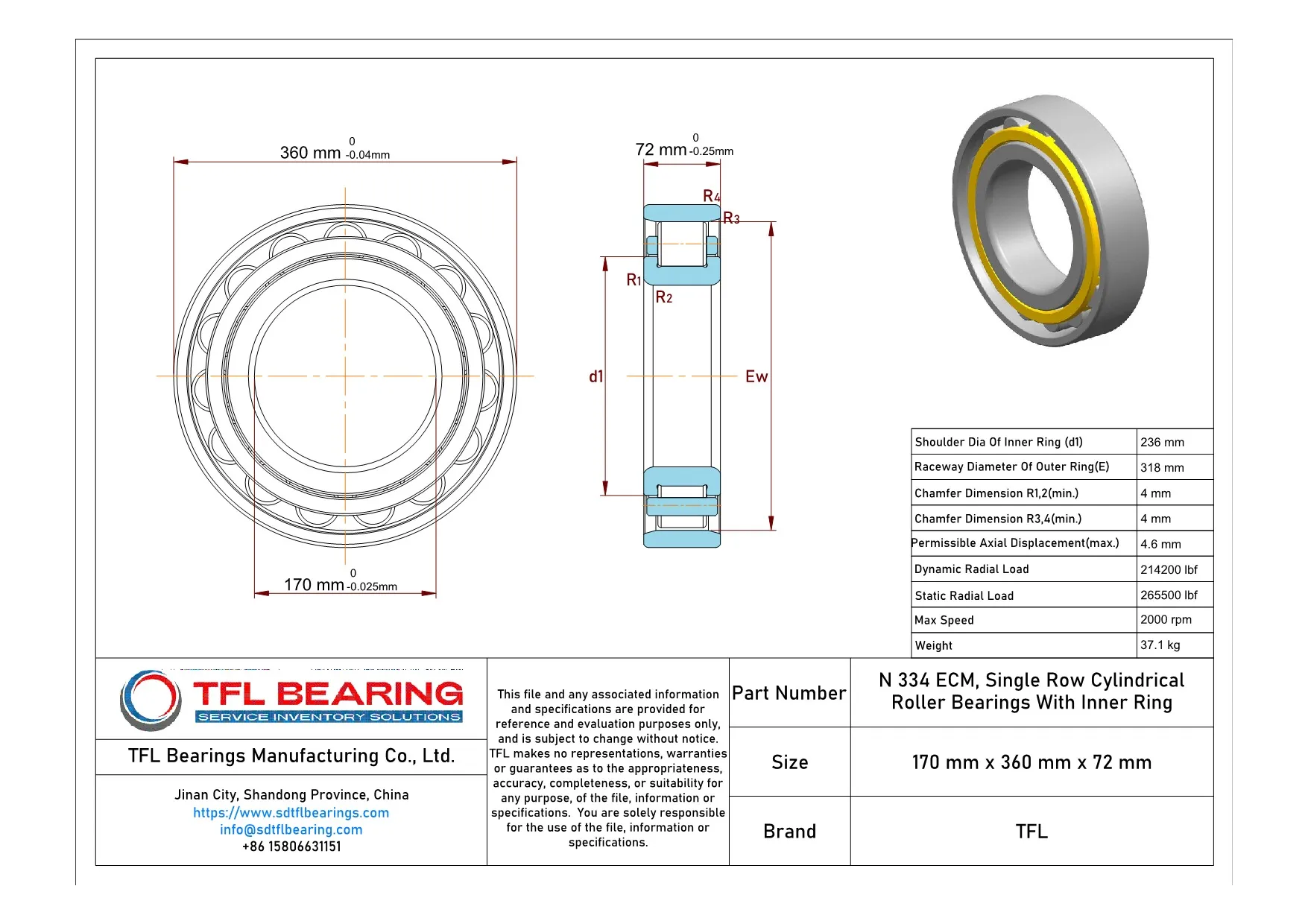

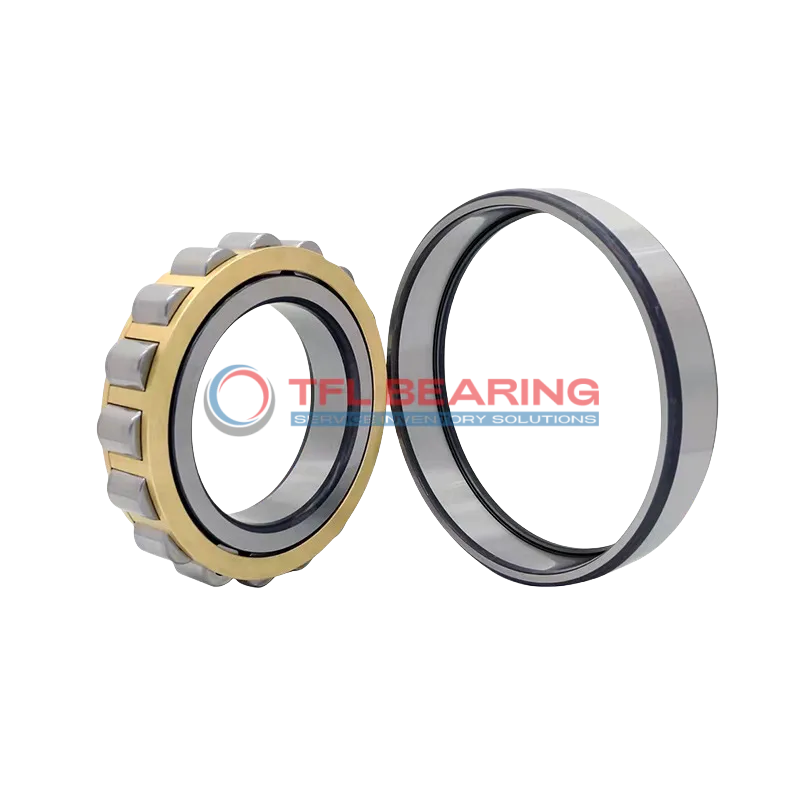

The N 334 ECM is a single row cylindrical roller bearing with a 170mm bore and 360mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 214200 lbf and runs smoothly at speeds up to 2000 RPM.
Its brass cage keeps rollers centred for even load distribution, while the open design allows easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.
With a width of 72mm and chamfered edges, it fits snugly in tight spaces. Ideal for heavy machinery like gearboxes or industrial equipment where radial and axial loads are present.
Weighing 37.1kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements, interchangeable with SKF bearings.
"*" indicates required fields
Performance Features of N 334 ECM Bearing
N 334 ECM Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 214200 lbf, ensuring reliable performance in heavy-duty applications.
The brass cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 2000 rpm, it balances durability and efficiency in demanding conditions.
Industrial Uses of N 334 ECM Bearing
N 334 ECM Bearing is commonly used in heavy machinery like industrial gearboxes and large electric motors, where its cylindrical roller design handles high radial loads efficiently. The brass cage ensures smooth operation even at speeds up to 2000 rpm.
Where Is N 334 ECM Bearing Used?
You’ll often find N 334 ECM Bearing in wind turbines and mining equipment, thanks to its robust chrome steel construction and ability to withstand combined loads. Its open design allows for easy lubrication, extending service life in demanding environments.
Built for Heavy-Duty Use: N 334 ECM Bearing
N 334 ECM Bearing excels in steel mills and paper processing machines, where its high dynamic radial load capacity keeps operations running smoothly. The metric dimensions make it a versatile choice for European and Asian industrial applications.
Automotive vs Aerospace: Applications of N 334 ECM Bearing
In automotive applications, N 334 ECM Bearing supports large drivetrain components, while in aerospace, it’s used in auxiliary systems requiring precision and reliability. The temperature range of -30° to 110°C ensures performance in varied conditions.
Key Fields for N 334 ECM Bearing
N 334 ECM Bearing is ideal for hydraulic pumps and compressors, where its single-row design simplifies installation and maintenance. The chrome steel rollers and rings provide durability, even under continuous heavy loads.
