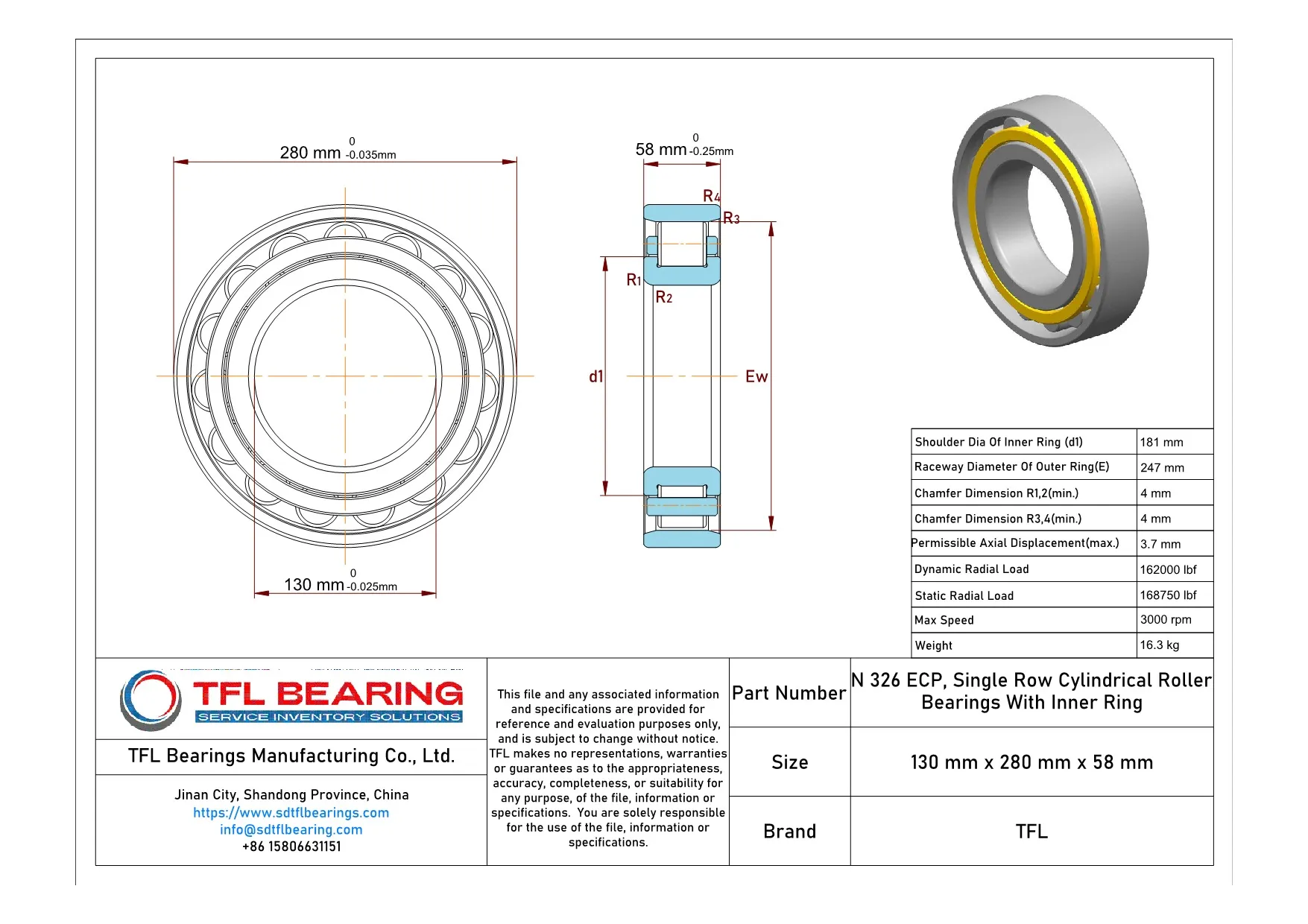

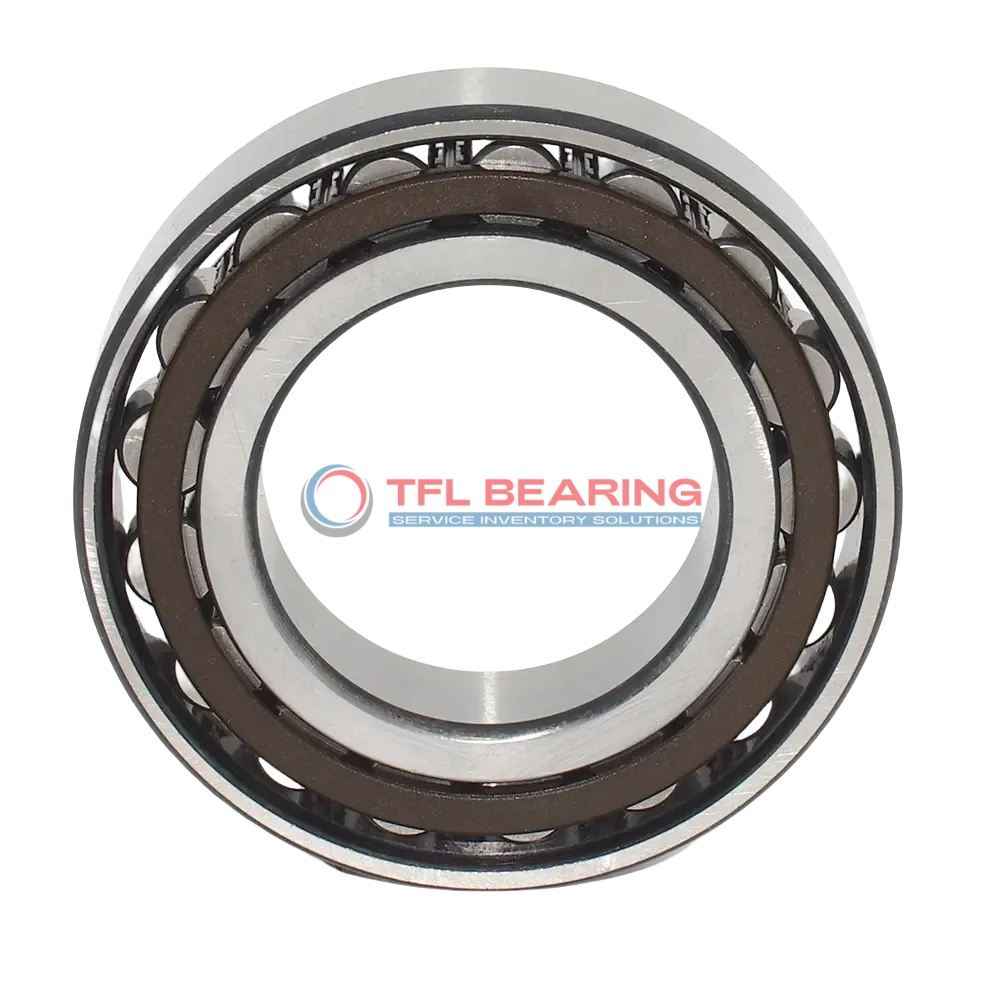

The N 326 ECP is a single row cylindrical roller bearing with a 130mm bore and 280mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 162000 lbf and operates smoothly at speeds up to 3000 RPM.
Its open design allows for easy lubrication with grease or oil, while the PA66 cage ensures reliable performance. The bearing can withstand temperatures from -30°C to 110°C, making it versatile for various conditions.
With a permissible axial displacement of 3.7mm, it offers flexibility in installation. This model is interchangeable with SKF bearings, ideal for heavy-duty applications like industrial machinery or gearboxes.
Weighing 16.3kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and dependable choice.
"*" indicates required fields
Performance Features of N 326 ECP Bearing
N 326 ECP Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 162,000 lbf, ensuring reliable performance in demanding conditions.
The PA66 cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 3,000 rpm, it balances durability and efficiency for various applications.
Industrial Uses of N 326 ECP Bearing
N 326 ECP Bearing is commonly used in heavy machinery like industrial gearboxes and large electric motors, where its cylindrical roller design handles high radial loads efficiently. The chrome steel construction ensures durability in demanding environments.
What Makes N 326 ECP Bearing a Preferred Choice?
In automotive applications, N 326 ECP Bearing supports components such as drivetrains and wheel hubs, offering reliable performance under combined loads. Its PA66 cage reduces friction, making it suitable for high-speed operations.
Perfect Fit for Automation: N 326 ECP Bearing
N 326 ECP Bearing works well in robotic arms and automated production lines, where precision and load capacity are key. The open seal design allows for easy lubrication, extending service life in continuous use.
Medical vs Industrial: Where N 326 ECP Bearing Excels
While N 326 ECP Bearing is robust enough for industrial presses, its precision also suits medical imaging devices requiring smooth rotation. The temperature range ensures stability in various operating conditions.
