Single Row Cylindrical Roller Bearings With Inner Ring N 322 ECM
Single Row Cylindrical Roller Bearings With Inner Ring N 322 ECM

Single Row Cylindrical Roller Bearings With Inner Ring N 322 ECM

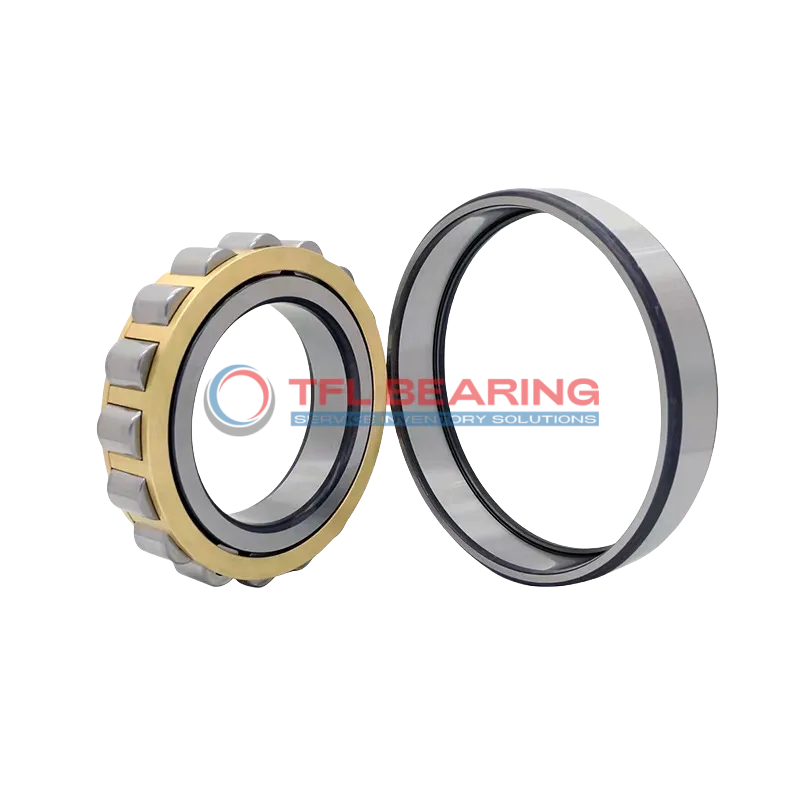

The N 322 ECM is a single-row cylindrical roller bearing with a 110mm bore and 240mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 119250 lbf and runs smoothly at speeds up to 3000 RPM.

Its brass cage keeps rollers centred for even load distribution, while the open design allows easy lubrication with grease or oil. The bearing operates reliably in temperatures from -30°C to 110°C.

With a 50mm width and 3mm chamfer dimensions, it fits snugly in tight spaces. Ideal for heavy machinery like gearboxes or industrial equipment where radial and axial loads are present.

Weighing 11.5kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for easy replacement.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number N 322 ECM
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 240 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 50 mm
  • Width Tolerance -0.20mm to 0
  • Shoulder Dia Of Inner Ring 155 mm
  • Raceway Diameter Of Outer Ring(E) 211 mm
  • Chamfer Dimension r1,2(min.) 3 mm
  • Chamfer Dimension r3,4(min.) 3 mm
  • Permissible Axial Displacement(max.) 3 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, roller centred
  • Dynamic Radial Load 119250 lbf
  • Static Radial Load 121500 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 3000 rpm
  • Weight 11.5 kg

Features

Performance Features of N 322 ECM Bearing

N 322 ECM Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 119250 lbf, making it suitable for heavy-duty applications.
The brass cage keeps the rollers centred, ensuring smooth operation and reduced wear.
With a maximum speed of 3000 rpm, it delivers reliable performance in various industrial settings.

Application

Industrial Uses of N 322 ECM Bearing
N 322 ECM Bearing is commonly used in heavy machinery like industrial gearboxes and large pumps, where its cylindrical roller design handles both radial and axial loads efficiently. The brass cage ensures smooth operation even at high speeds.

Where Is N 322 ECM Bearing Used?
You’ll often find N 322 ECM Bearing in wind turbines and mining equipment, thanks to its robust chrome steel construction. Its open design allows for easy lubrication, extending service life in demanding conditions.

Built for Heavy-Duty Use: N 322 ECM Bearing
N 322 ECM Bearing excels in steel mills and paper processing machines, where its high dynamic load capacity is essential. The metric dimensions make it a versatile choice for European and Asian industrial applications.

Automotive vs Aerospace: Applications of N 322 ECM Bearing
In automotive systems, N 322 ECM Bearing supports drivetrain components like differentials, while in aerospace, it’s used in auxiliary power units. Its temperature range suits both environments well.

Practical Applications of N 322 ECM Bearing
N 322 ECM Bearing is ideal for conveyor systems in logistics hubs, where its combined load handling keeps operations running smoothly. The grease lubrication option reduces maintenance needs in dusty settings.
