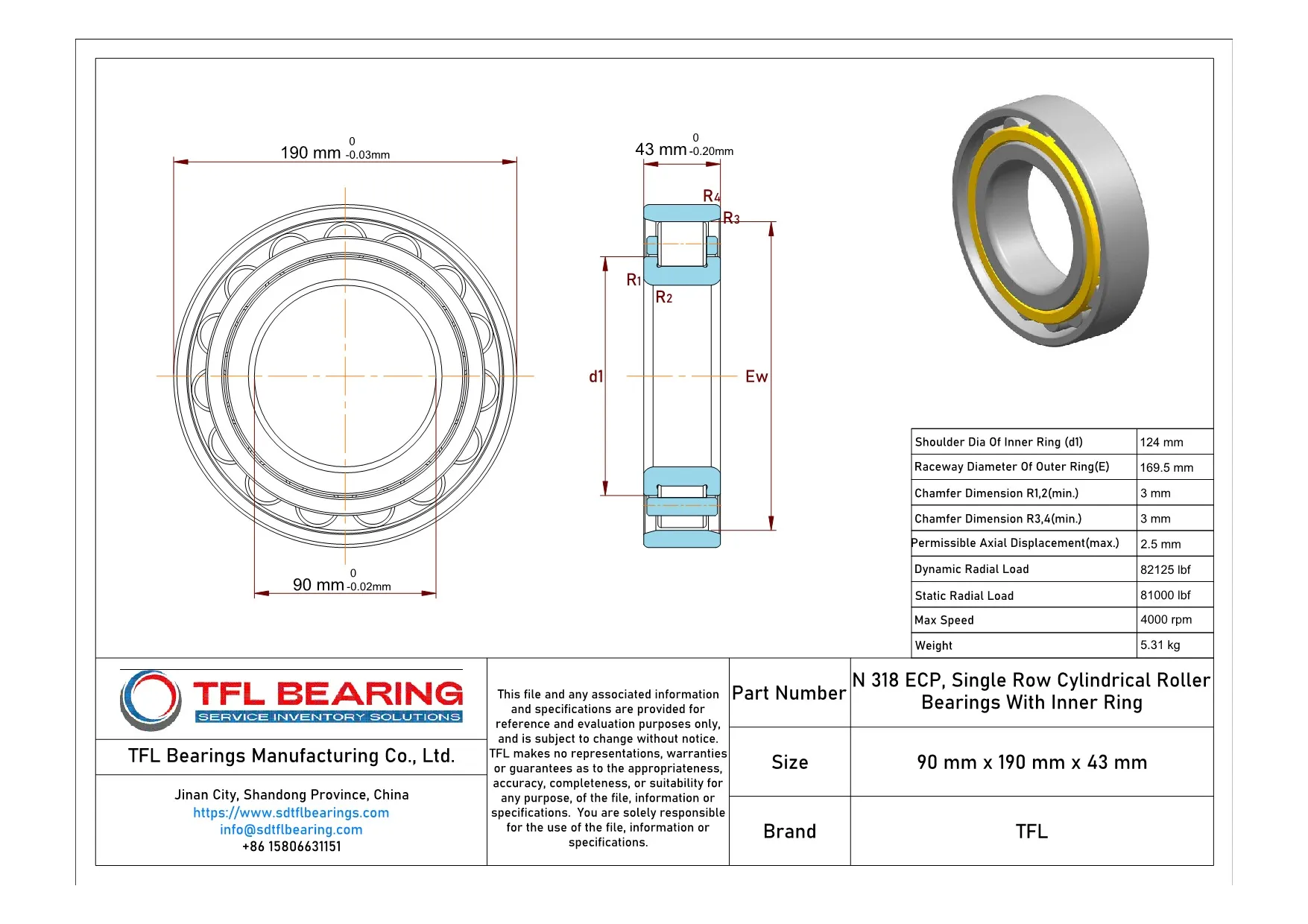

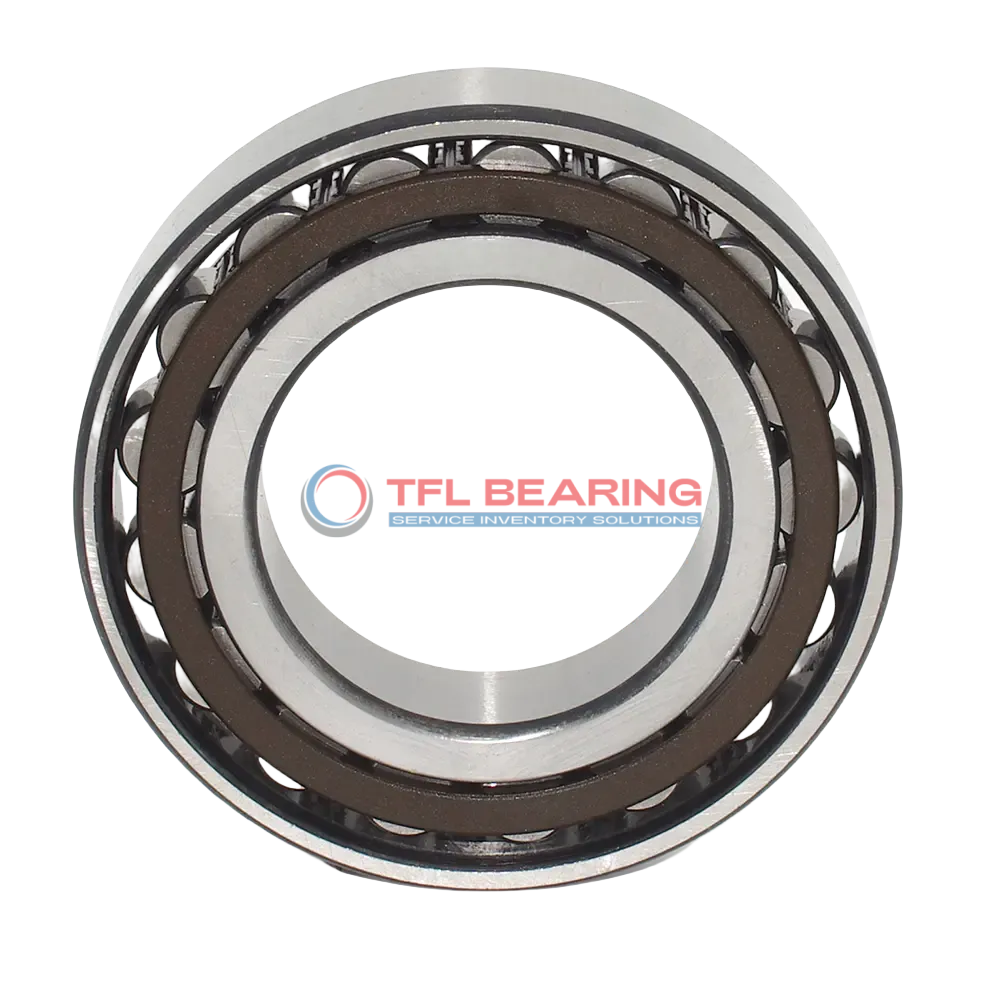

The N 318 ECP is a single-row cylindrical roller bearing with a 90mm bore and 190mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 82125 lbf and runs smoothly at speeds up to 4000 RPM.
Its open design allows for easy lubrication with grease or oil, while the PA66 cage ensures durability and centred roller alignment. The bearing operates well in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or machinery where radial and axial loads are present.
Weighing 5.31kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and reliable use.
"*" indicates required fields
Performance Features of N 318 ECP Bearing
N 318 ECP Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 82,125 lbf, ensuring reliable performance in demanding applications.
The PA66 cage keeps the rollers centred, reducing wear and extending service life.
With a maximum speed of 4,000 rpm, it balances durability and efficiency.
N 318 ECP Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with either grease or oil, reducing maintenance needs.
The precise tolerances of N 318 ECP Bearing ensure consistent performance in various applications.
Its single-row cylindrical design provides excellent radial load capacity while maintaining compact dimensions.
Key Fields for N 318 ECP Bearing
N 318 ECP Bearing is commonly used in industrial machinery, especially in gearboxes and large motors where high radial loads are present. Its robust chrome steel construction ensures long-lasting performance even in demanding conditions.
In automotive applications, N 318 ECP Bearing supports heavy-duty components like axles and transmissions. The single-row design with an inner ring provides stability and precision under combined loads.
For automation systems, N 318 ECP Bearing is ideal for robotic arms and conveyor belts due to its high-speed capability. The PA66 cage reduces friction, making it efficient for continuous operation.
In wind turbines, N 318 ECP Bearing handles significant radial and axial forces, ensuring reliable energy generation. Its open design allows for easy lubrication, extending service life in harsh environments.
N 318 ECP Bearing also finds use in printing presses, where its precision and durability maintain consistent print quality. The metric sizing ensures compatibility with a wide range of European machinery.
